▌1▐ Online indicator
▌2▐ Fault indicator
Table 18 describes the meaning of the LEDs on each secondary expansion module.
Table 18. LED indicators on secondary expansion modules
Function Color Status Description
▌1▐ Power Green On The secondary
expansion module is
receiving power.
Flashing Not used.
Off The secondary
expansion module is
not receiving power.
▌2▐ Fault Amber On Not used.
Flash The secondary
expansion module is
being identified.
Off The secondary
expansion module is
operating normally.
LEDs on the rear of the expansion enclosure
Figure 124 on page 136 shows the rear view of a 2076-92F expansion enclosure.
LEDs on the rear of the enclosure provide information about each fan module,
each expansion canister, and SAS links.
svc01068
12

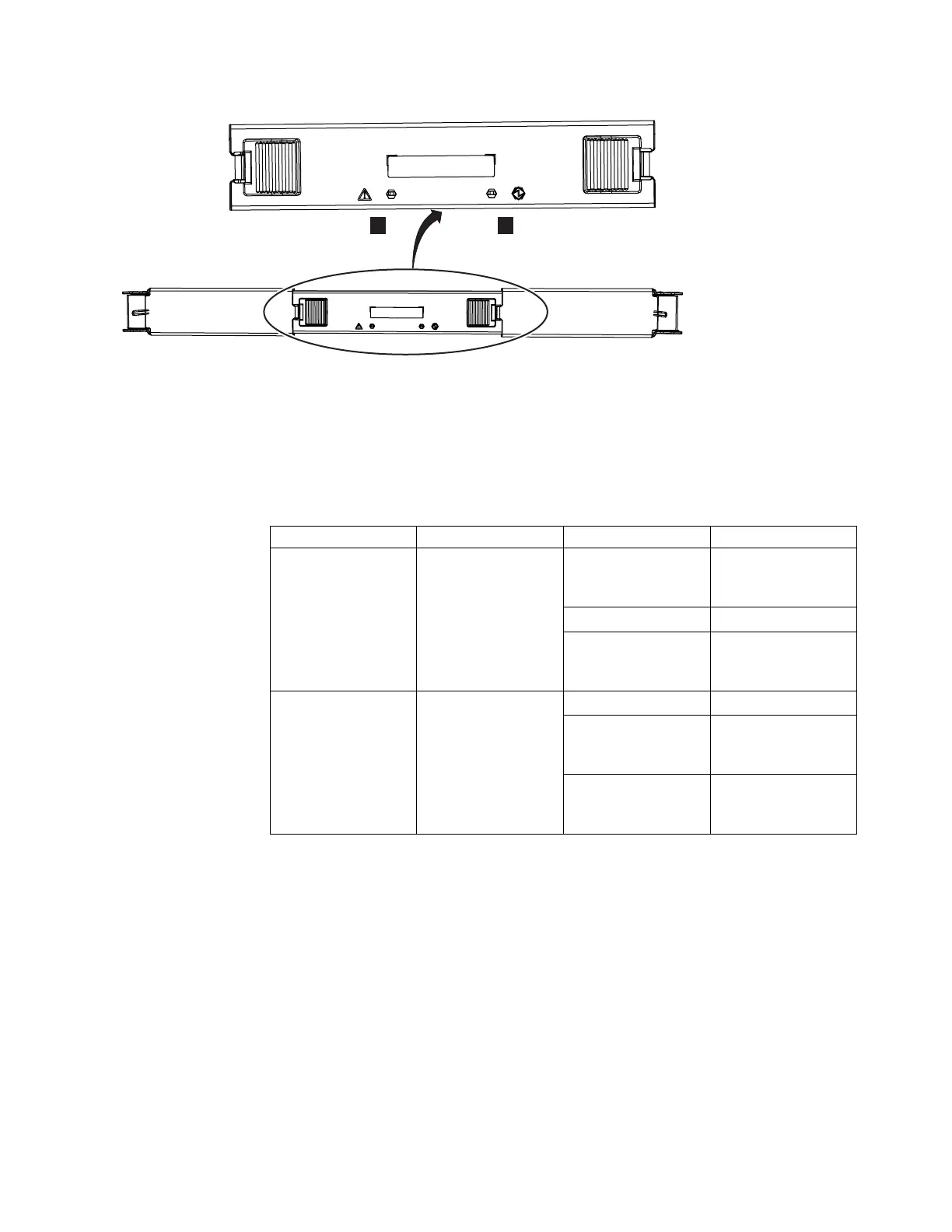

Figure 123. LEDs on a secondary expansion module
Chapter 2. Installing the Storwize V7000 Gen2 and Storwize V7000 Gen2+ hardware 135

IBM StorVize V7000 Gen2+ Specifications

General

Model	Storwize V7000 Gen2+
Storage Type	Hybrid Flash Array
RAID Levels	RAID 0, 1, 5, 6, 10
Form Factor	2U
Operating System	IBM Spectrum Virtualize
Drive Types Supported	SSD
Host Interface	8/16 Gbps Fibre Channel, 1/10 Gbps iSCSI
Cache Memory	64 GB per control enclosure
Nodes	2 nodes per control enclosure
Processor Cores	8-core processor per node
Connectivity	Fibre Channel, iSCSI
