IBM StorVize V7000 Gen2+ - Attaching the Inner Rail Section to the; Installing the Rail Assembly to the Rack Frame

6. Use the M5 screws to install the outer rail member and bracket assembly to the
rack, as shown in Figure 38.
For example, Figure 39 on page 49 shows the front of the rail that is attached to
the frame.
click
1
2
M4x6L
locking
svc01081

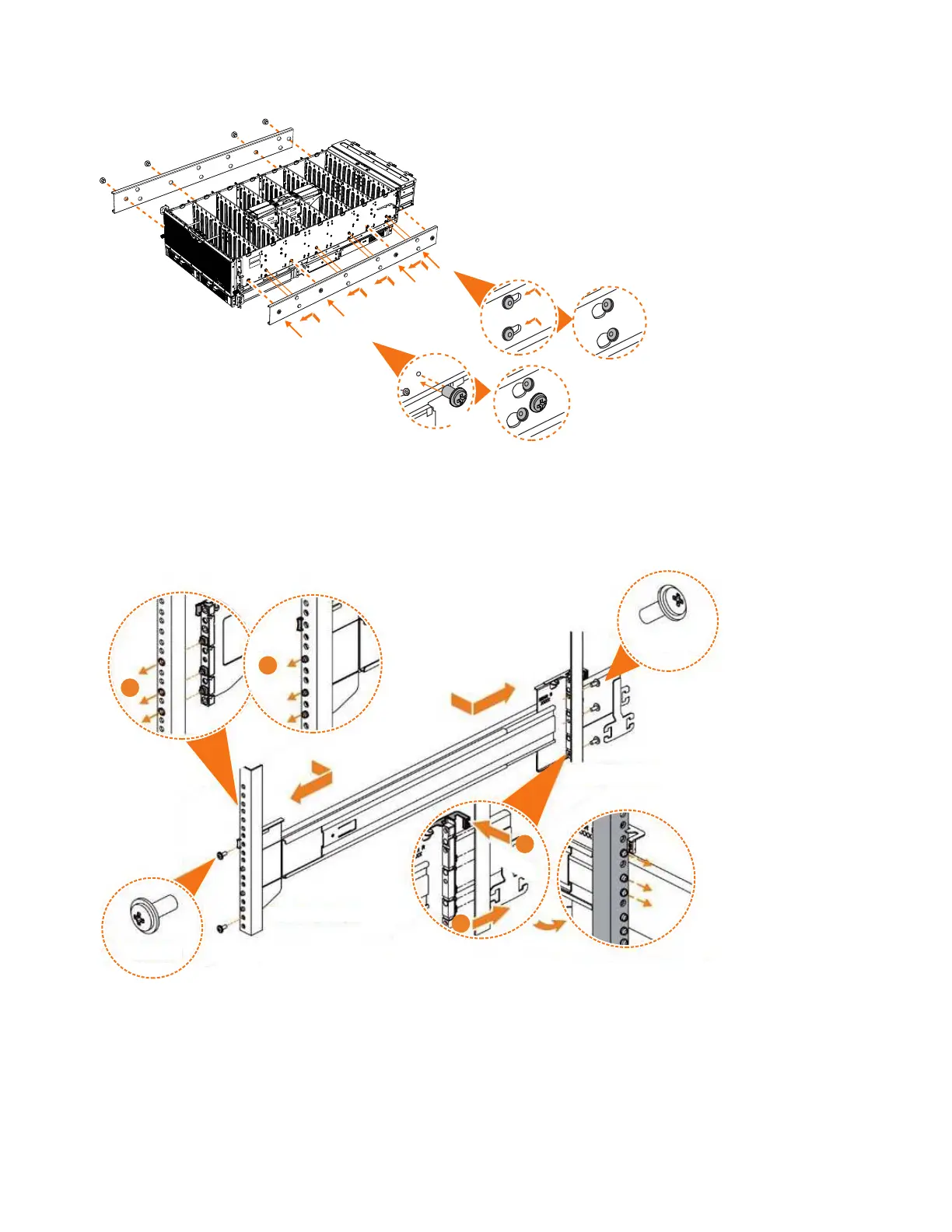

Figure 37. Attaching the inner rail section to the enclosure
1
2
Click!
M5x13L
Rear Bracket
3
1
Click!
1
2
PUSH
Front Bracket
2
M5x13L
svc00966
Figure 38. Installing the rail assembly to the rack frame
48 Storwize V7000 Gen2 and Gen2+: Quick Installation Guide
