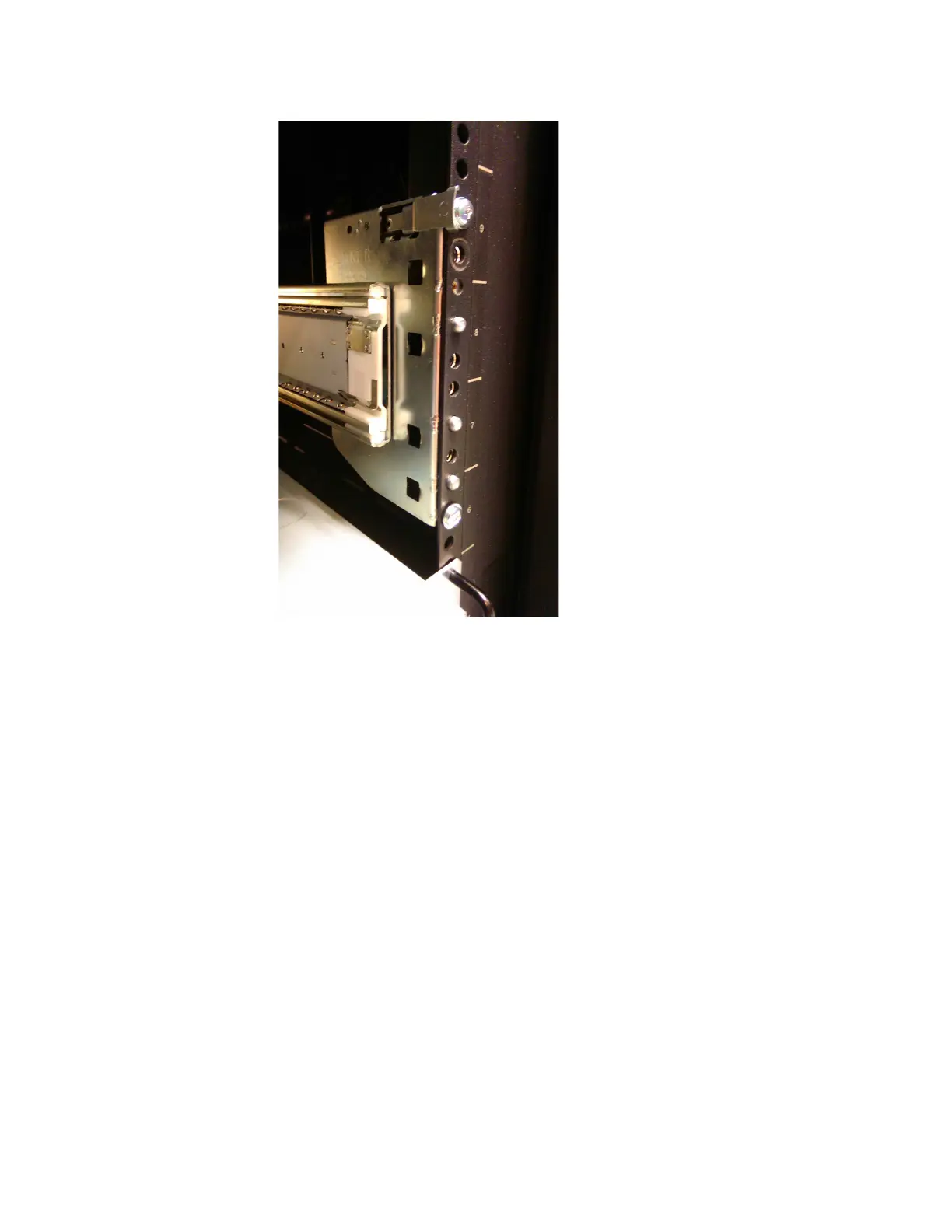

7. Repeat steps 5 on page 47 through 6 on page 48 to install the opposite rail.
8. Install the expansion enclosure in the rack, as described in “Installing or
replacing an expansion enclosure in a rack: 2076-92F.”
Installing or replacing an expansion enclosure in a rack:
2076-92F
Use the following procedure to place the 2076-92F expansion controller in a rack
during the installation process. To complete some service tasks, you might also
need to slide the enclosure back in to the rack.
Figure 39. Example of required rack space
Chapter 2. Installing the Storwize V7000 Gen2 and Storwize V7000 Gen2+ hardware 49
