IBM StorVize V7000 Gen2+ User Manual

Procedure
1. Using a cross head screwdriver, remove the narrow metal cover that is over the
FIBs, as shown in Figure 104. The screws are on each side of the chassis. Place
the cover and cover screws in a safe location.
2. Use a cross head screwdriver to loosen the retaining screws on the FIB, as
shown in Figure 105 on page 115.
svc01003
1

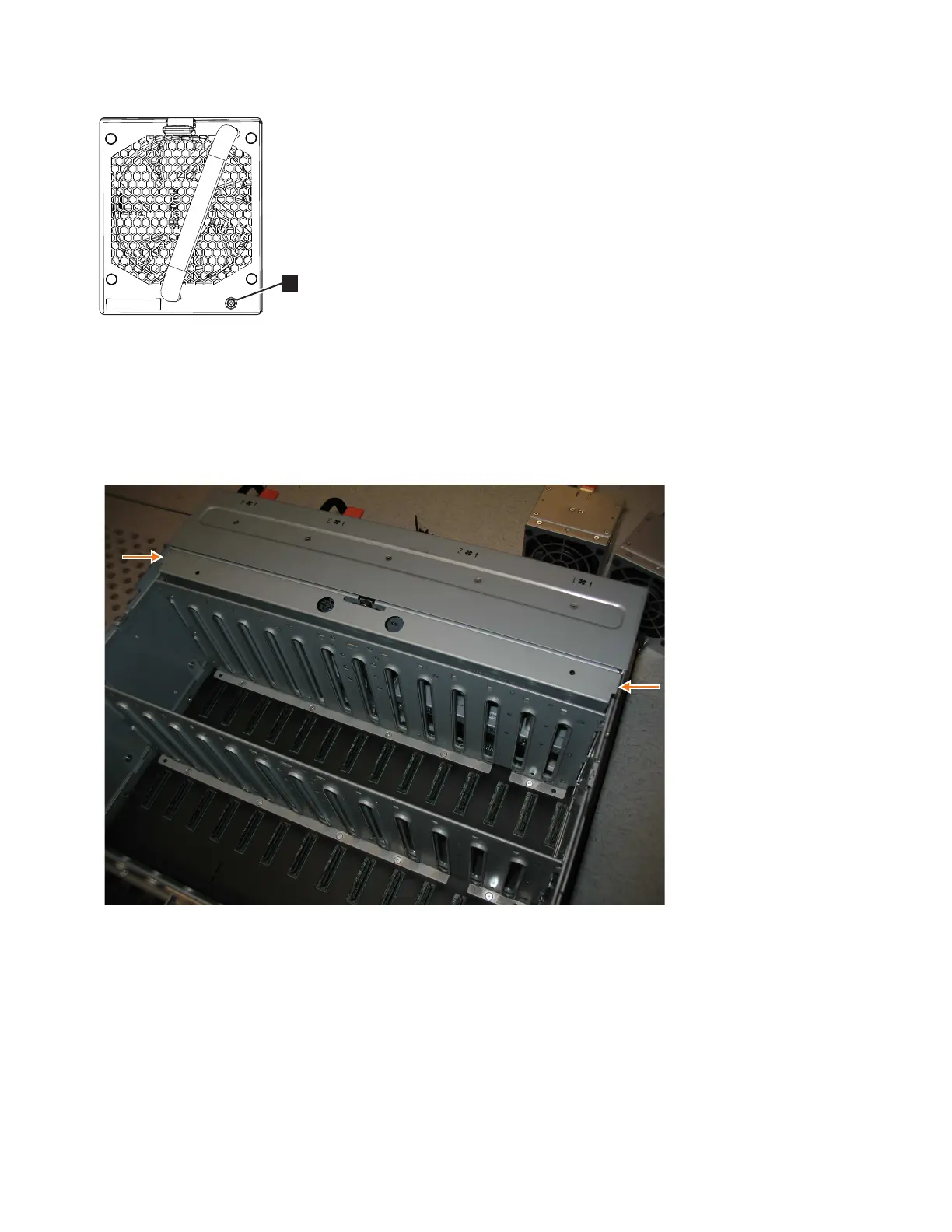

Figure 103. Fan module LED
svc01069
Figure 104. Location of the FIB cover
114 Storwize V7000 Gen2 and Gen2+: Quick Installation Guide

IBM StorVize V7000 Gen2+ Specifications

General

Model	Storwize V7000 Gen2+
Storage Type	Hybrid Flash Array
RAID Levels	RAID 0, 1, 5, 6, 10
Form Factor	2U
Operating System	IBM Spectrum Virtualize
Drive Types Supported	SSD
Host Interface	8/16 Gbps Fibre Channel, 1/10 Gbps iSCSI
Cache Memory	64 GB per control enclosure
Nodes	2 nodes per control enclosure
Processor Cores	8-core processor per node
Connectivity	Fibre Channel, iSCSI
