IBM StorVize V7000 Gen2+ - Example of SAS Cables Routed through the Cable Management Arms

9. When both ends of a SAS cable are correctly connected, the green link-LED
next to the connected SAS ports are lit.
For example, Figure 80 on page 88 shows the LEDs of expansion canister 1 on a
2076-92F expansion enclosure. The SAS cable is successfully inserted in to port
1 (input); port 2 (output) does not contain a SAS cable.
svc01082

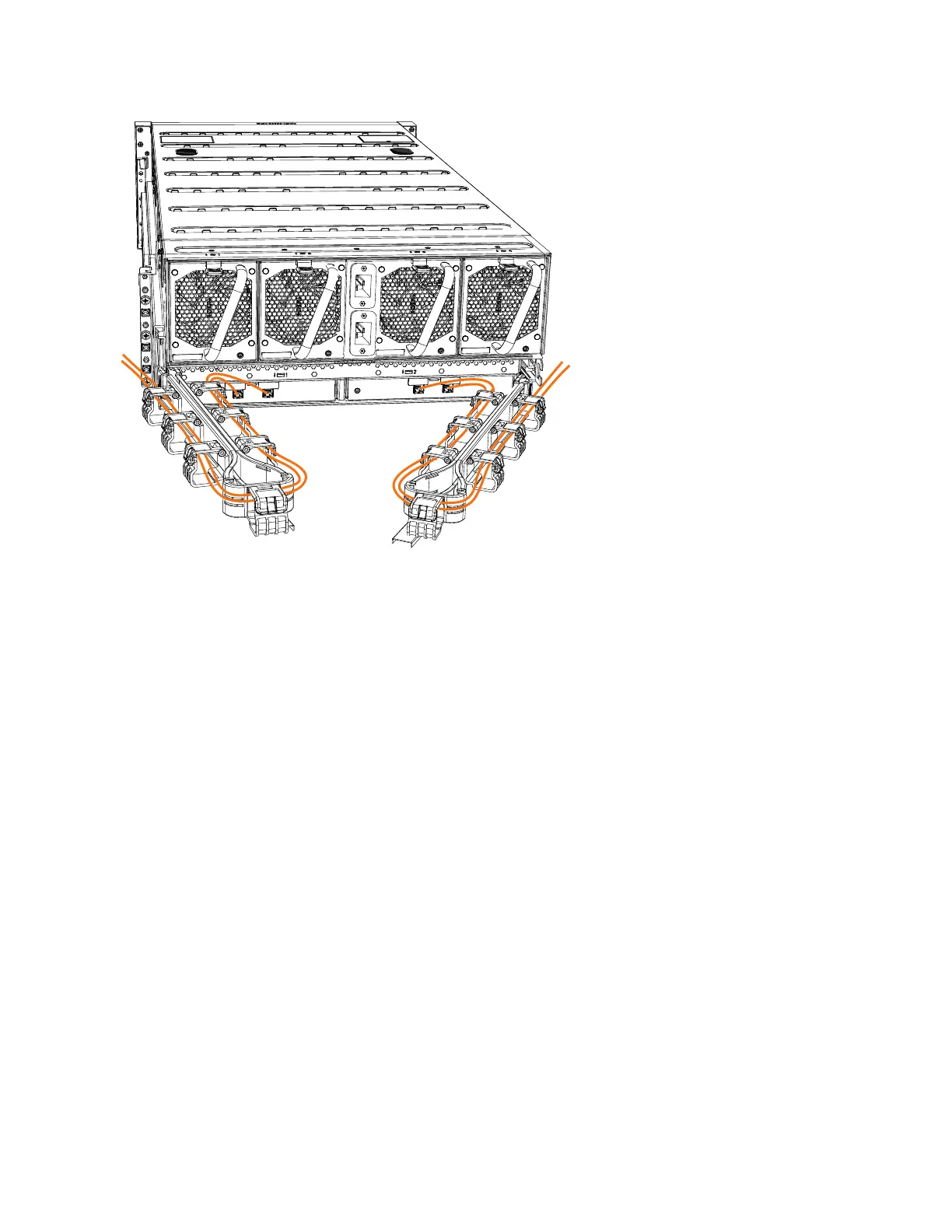

Figure 79. Example of SAS cables routed through the cable management arms
Chapter 2. Installing the Storwize V7000 Gen2 and Storwize V7000 Gen2+ hardware 87
