The drive slots must be populated sequentially, starting from the back-left
corner position (slot 1, grid A1). Sequentially install the drive in the slots from
left to right and back row to front. Always complete a full row before you
install drives in the next row. For example, in Figure 63, the drives are
installed correctly. Drives are installed in slots 1 -14 of row A and the
installation continues in slot 15 in row B.
In Figure 64 on page 72, the drives are not installed correctly. Slot 1 (A1) does
not contain a drive. In addition, drives are installed in row B even though row
A contains empty drive slots.
svc01054

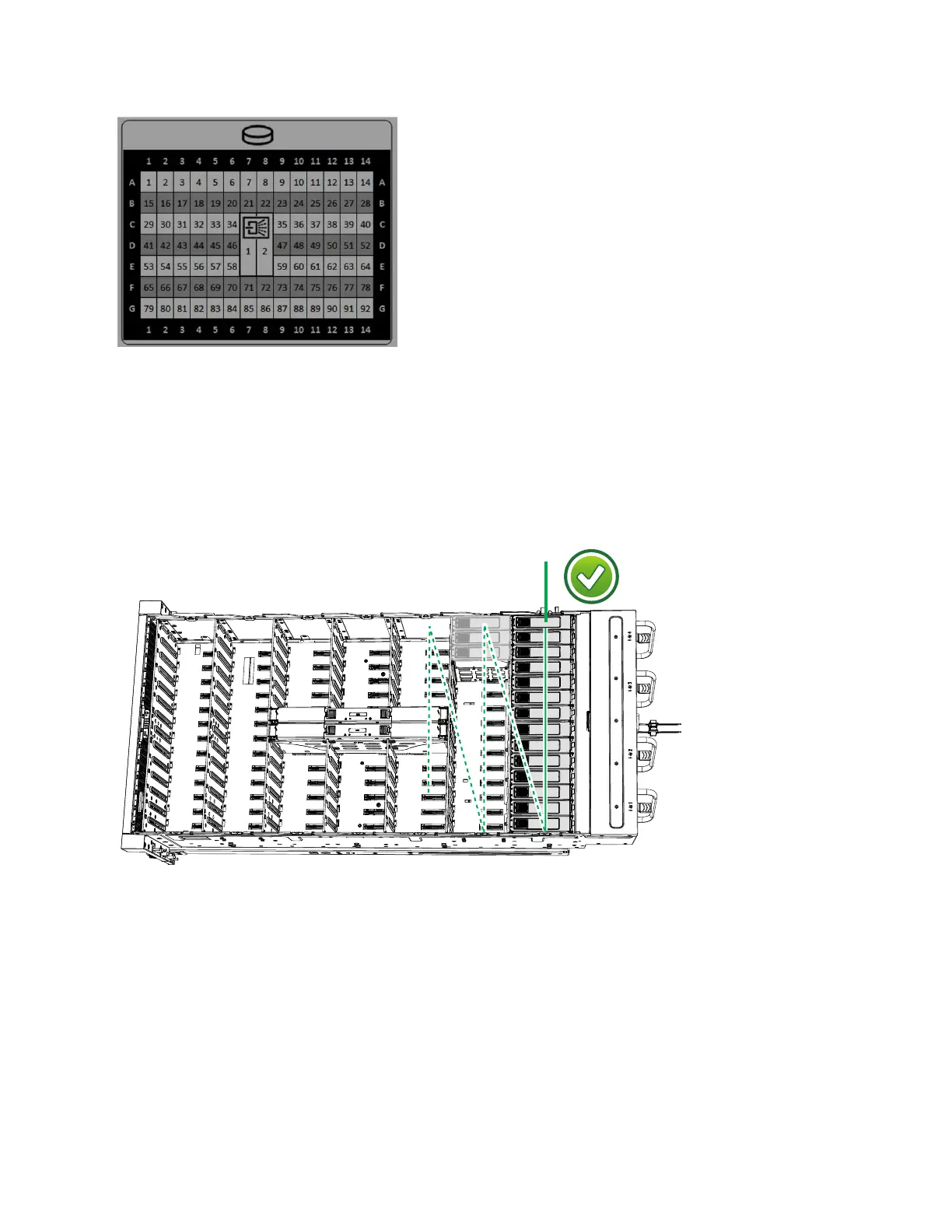

Figure 62. Drive locations in a 2076-92F expansion enclosure
svc01044
Figure 63. Correct drive installation
Chapter 2. Installing the Storwize V7000 Gen2 and Storwize V7000 Gen2+ hardware 71

IBM StorVize V7000 Gen2+ Specifications

General

Model	Storwize V7000 Gen2+
Storage Type	Hybrid Flash Array
RAID Levels	RAID 0, 1, 5, 6, 10
Form Factor	2U
Operating System	IBM Spectrum Virtualize
Drive Types Supported	SSD
Host Interface	8/16 Gbps Fibre Channel, 1/10 Gbps iSCSI
Cache Memory	64 GB per control enclosure
Nodes	2 nodes per control enclosure
Processor Cores	8-core processor per node
Connectivity	Fibre Channel, iSCSI
