3. Use the handle to pull the FIB out of the expansion enclosure chassis, as shown
in Figure 106.
svc01029

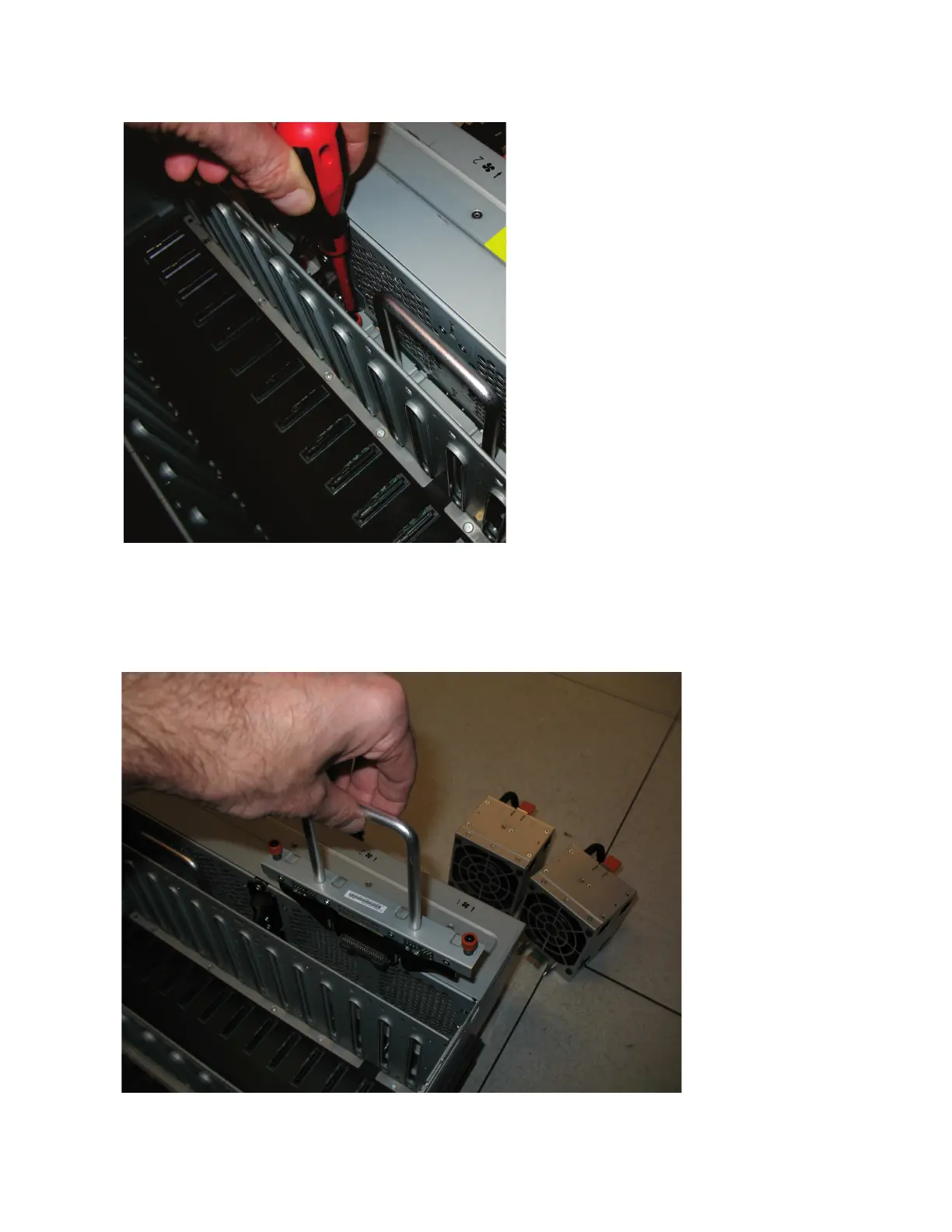

Figure 105. Loosen the FIB screws
svc01031
Figure 106. Remove the FIB from the chassis
Chapter 2. Installing the Storwize V7000 Gen2 and Storwize V7000 Gen2+ hardware 115

IBM StorVize V7000 Gen2+ Specifications

General

Model	Storwize V7000 Gen2+
Storage Type	Hybrid Flash Array
RAID Levels	RAID 0, 1, 5, 6, 10
Form Factor	2U
Operating System	IBM Spectrum Virtualize
Drive Types Supported	SSD
Host Interface	8/16 Gbps Fibre Channel, 1/10 Gbps iSCSI
Cache Memory	64 GB per control enclosure
Nodes	2 nodes per control enclosure
Processor Cores	8-core processor per node
Connectivity	Fibre Channel, iSCSI
