IBM StorVize V7000 Gen2+ User Manual

Figure 48 shows that the lower CMA assembly is swung away from the rear of the
enclosure so that the expansion canister is accessible.
Procedure
1. To release the upper CMA, push the latch on the support rail connector ▌5▐ to
release it from the connector base ▌6▐ on the right rail.
svc01024

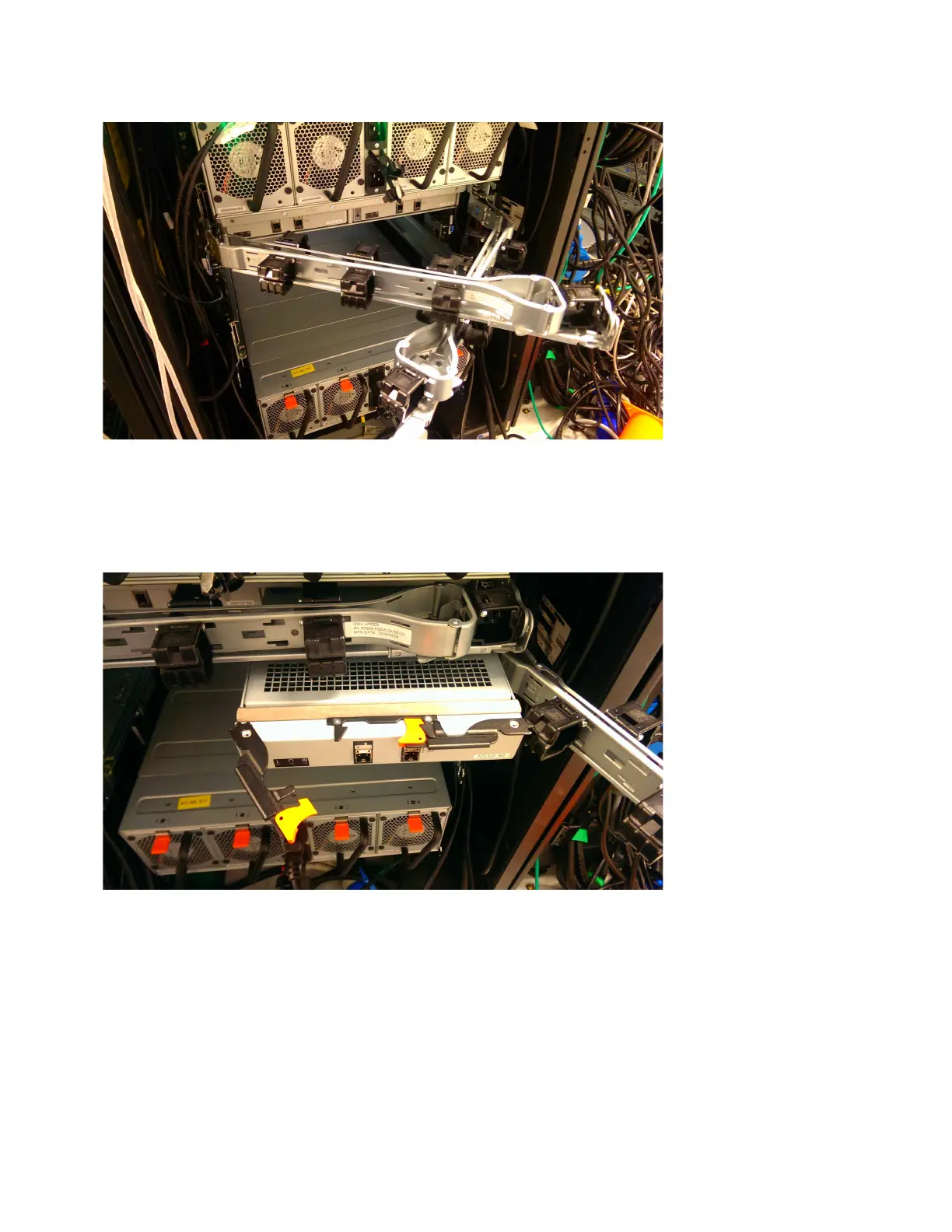

Figure 47. Upper and lower CMA assemblies moved aside
svc01023
Figure 48. Lower CMA assembly moved
62 Storwize V7000 Gen2 and Gen2+: Quick Installation Guide

IBM StorVize V7000 Gen2+ Specifications

General

Model	Storwize V7000 Gen2+
Storage Type	Hybrid Flash Array
RAID Levels	RAID 0, 1, 5, 6, 10
Form Factor	2U
Operating System	IBM Spectrum Virtualize
Drive Types Supported	SSD
Host Interface	8/16 Gbps Fibre Channel, 1/10 Gbps iSCSI
Cache Memory	64 GB per control enclosure
Nodes	2 nodes per control enclosure
Processor Cores	8-core processor per node
Connectivity	Fibre Channel, iSCSI
