Expansion enclosure support rails
The left and right expansion enclosure support rails (Figure 6) are designed
specifically for installation of an expansion enclosure.
v The ledge on the inside of each rail supports the entire length of an expansion
enclosure.
v The expansion enclosure support rails capture the left and right rear edges of an
inserted expansion enclosure. This prevents the installed control enclosure
bouncing when the rack is subjected to quake or vibration.
v The expansion enclosure support rails adjust to fit racks from 595 mm to 755
mm deep, measured between the front and rear rack rails.
Identifying Storwize V7000 2076-624 node canisters
The Storwize V7000 2076-624 node canister includes hardware changes from the
Storwize V7000 2076-524 node canister. The changes can facilitate distinguishing
between the two node canisters.
fab10009
1
2

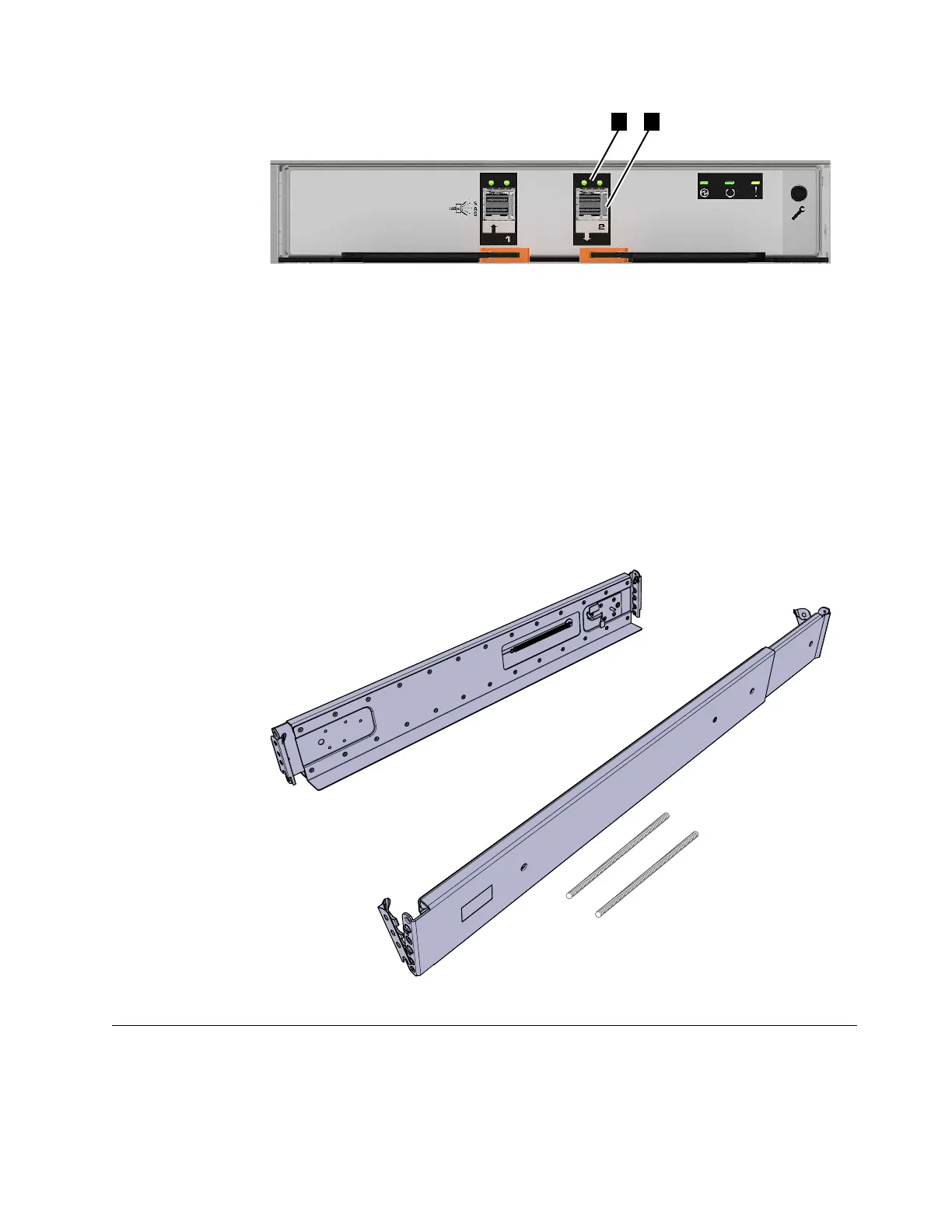

Figure 5. SAS ports and LEDs in rear view of a Storwize V7000 expansion canister
fab10053
Figure 6. Expansion enclosure support rails on Storwize V7000
Chapter 1. Before you begin the installation 9

IBM StorVize V7000 Gen2+ Specifications

General

Model	Storwize V7000 Gen2+
Storage Type	Hybrid Flash Array
RAID Levels	RAID 0, 1, 5, 6, 10
Form Factor	2U
Operating System	IBM Spectrum Virtualize
Drive Types Supported	SSD
Host Interface	8/16 Gbps Fibre Channel, 1/10 Gbps iSCSI
Cache Memory	64 GB per control enclosure
Nodes	2 nodes per control enclosure
Processor Cores	8-core processor per node
Connectivity	Fibre Channel, iSCSI
