Replacing a 1.8-inch solid state drive
This topic provides instructions on how to install the replacement solid state drive.
About this task
To install the replacement solid state drive, complete the following steps:
Procedure
1. Remove the drive cage filler panel.
2. Slide the drive release latch to the right and rotate the handle to the open
position.
3. Push the solid state drive all the way until it clicks in the backplane.
4. Rotate the handle until the latch clicks closed.
5. Reinstall the drive cage filler panel.
6. Install the drive ID label on the server front bezel.
Removing a hot-swap hard disk drive
This topic provides instructions for how to remove the hot-swap hard disk drive.
About this task
Important: Before you remove a hot-swap hard disk drive from the server, take
the following precautions to save data, firmware, and configuration data:
v Before you make changes to disk drives, disk drive controllers (including
controllers that are integrated on the system board), disk drive backplanes, or
disk drive cables, back up all important data that is stored on hard disks.
v Before you remove any component of a RAID array, back up all RAID
configuration information.
To remove the hot-swap hard disk drive, complete the following steps.

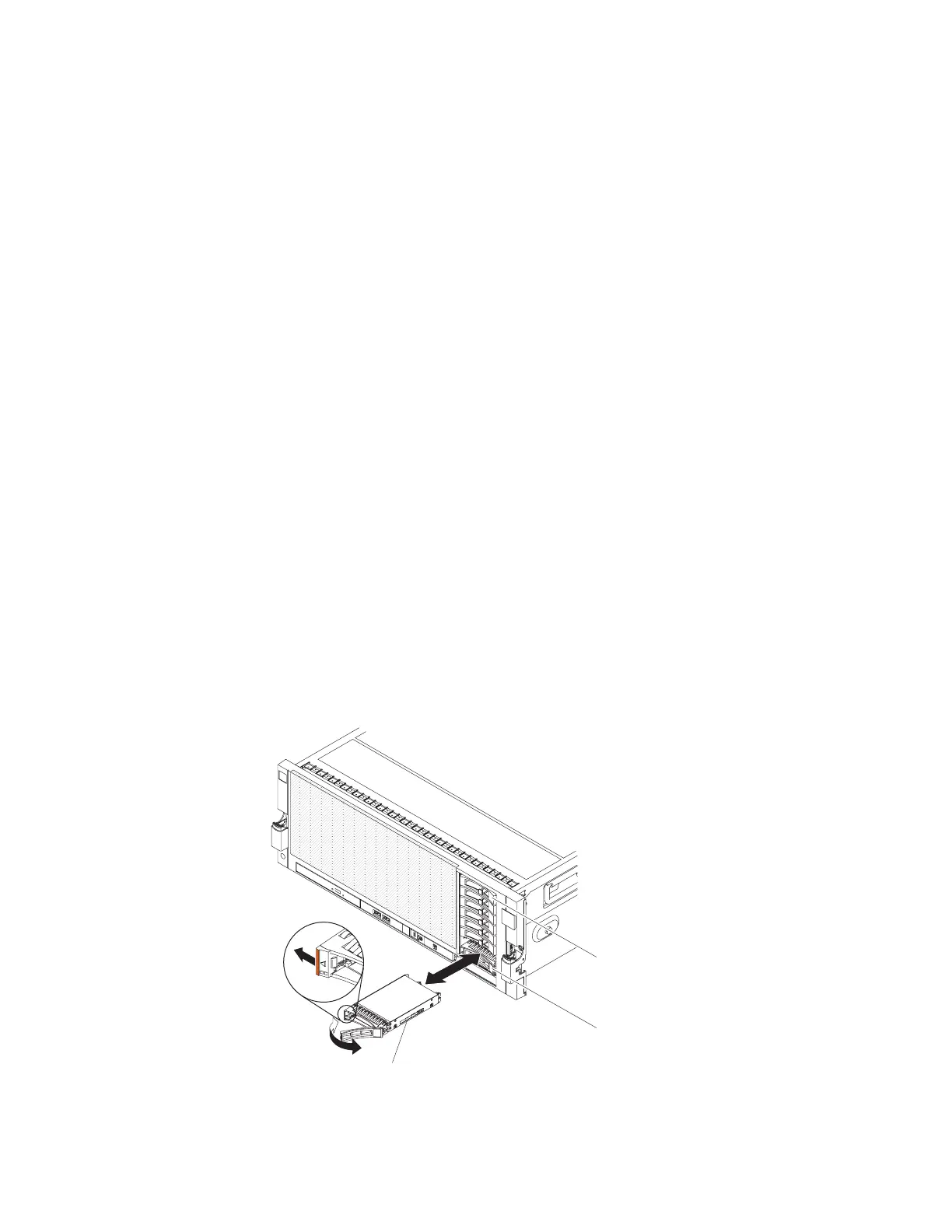

Hard disk
drive
assembly
Drive bay 7
Drive bay 0
Chapter 5. Removing and replacing components 117
