Replacing the DVD drive
This topic provides instructions for how to install the replacement DVD drive.
About this task
To install the replacement DVD drive, complete the following steps:
Procedure
1. Install the DVD bracket on the side of the new DVD drive.
2. Slide the DVD drive into the server until it engages the SATA cable.
3. Install the front bezel (see “Replacing the front bezel” on page 109).
4. Connect the cables and power cords (see “Connecting the cables” on page 104
for cabling instructions).
5. Turn on all attached devices and the server.
Removing a 1.8-inch solid state drive
This topic provides instructions on how to remove a solid state drive.
About this task
To remove a solid state drive, complete the following steps:
Procedure
1. Read the safety information that begins with “Safety” on page v and
“Installation guidelines” on page 97.
2. Remove the drive cage filler panel.
3. Slide the drive release latch to the right and rotate the handle to the open
position.

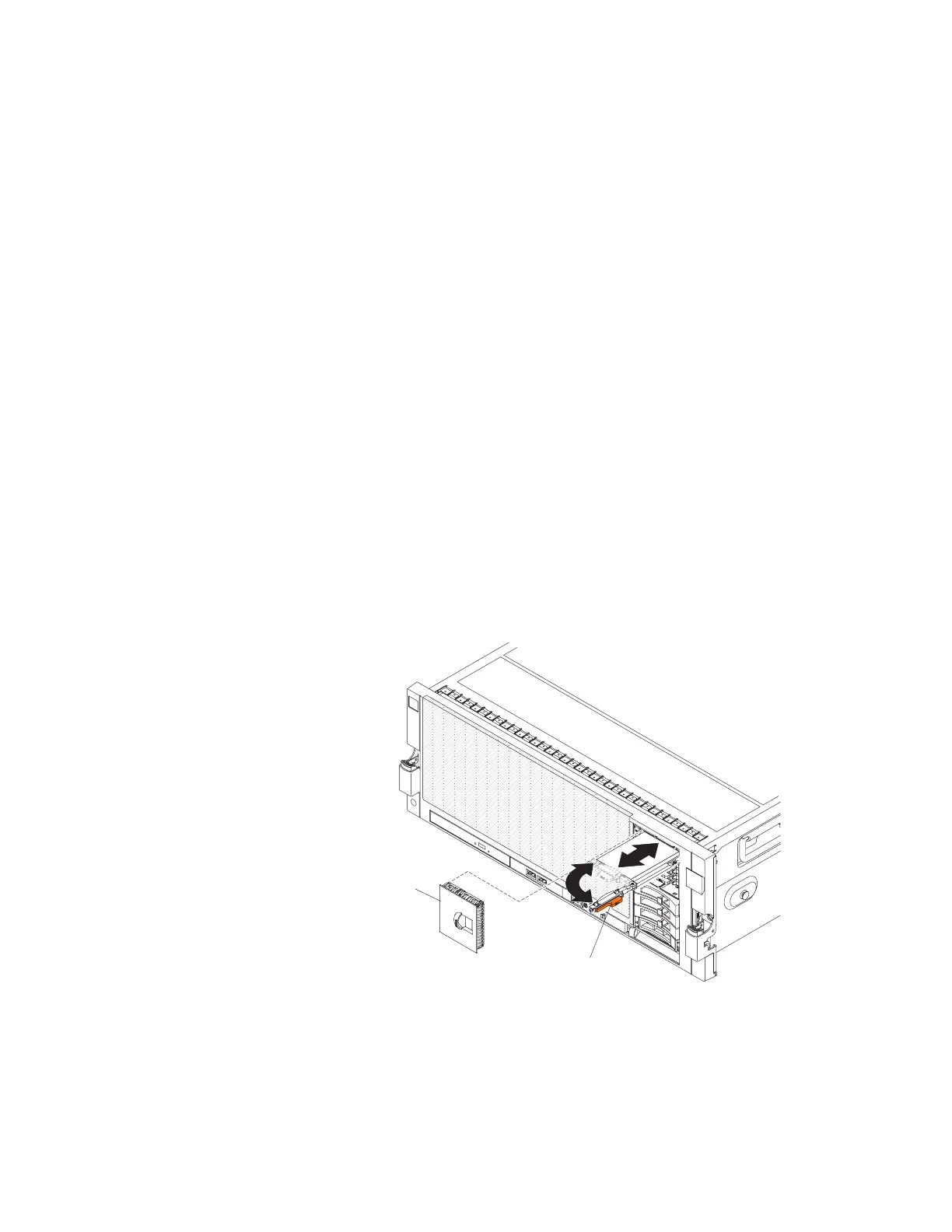

Filler panel
Drive tray handle
4. Slide the solid state drive out of the server.
116 IBM System x3850 X5 and x3950 X5 Types 7145, 7146, 7143, and 7191: Problem Determination and Service Guide
