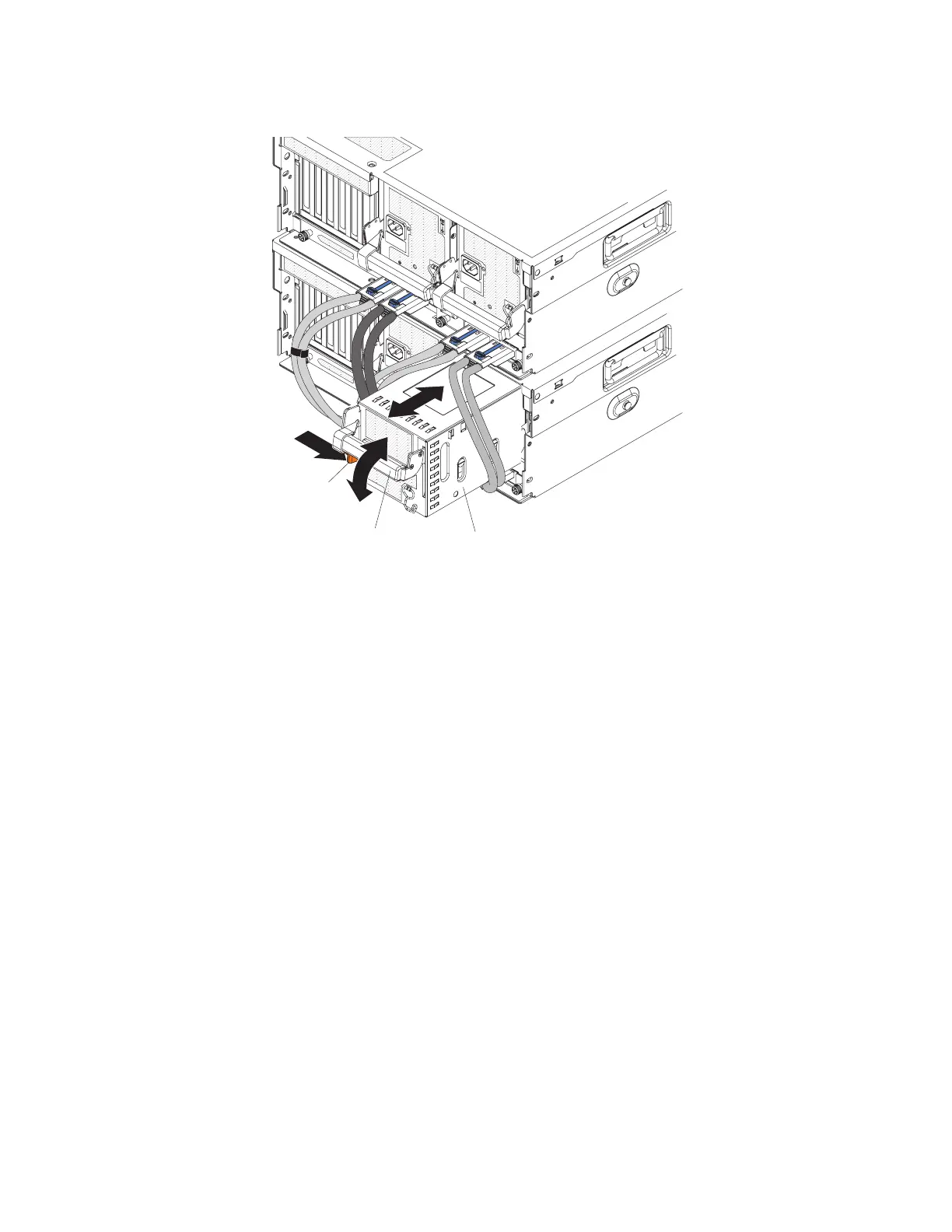

Power supply
handle release
latch
Power supply
handle
Power supply
Right power supply
Procedure
1. Read the safety information that begins with “Safety” on page v and
“Installation guidelines” on page 97
Note: If your server has only one power supply, you must turn off the server
before you remove the power supply.
2. If only one power supply is installed, turn off the server.
3. Disconnect the power cord from the connector on the back of the power supply.
4. Separate the cables to access the power supply
5. Slide the orange release latch on the handle to the right and lift the handle up
to the open position.
6. Pull the power supply out of the bay.
7. If you are instructed to return the hot-swap power supply, follow all packaging
instructions, and use any packaging materials for shipping that are supplied to
you.
126 IBM System x3850 X5 and x3950 X5 Types 7145, 7146, 7143, and 7191: Problem Determination and Service Guide
