Replacing the RAID adapter carrier and the RAID adapter
assembly
This topic provides steps to replace the RAID adapter carrier and RAID adapter
assembly.
About this task
To replace the RAID adapter carrier and RAID adapter assembly, complete the
following steps:
Procedure
1. If you removed a battery carrier and battery from the former RAID adapter, use
the three screws and install it on the new RAID adapter.

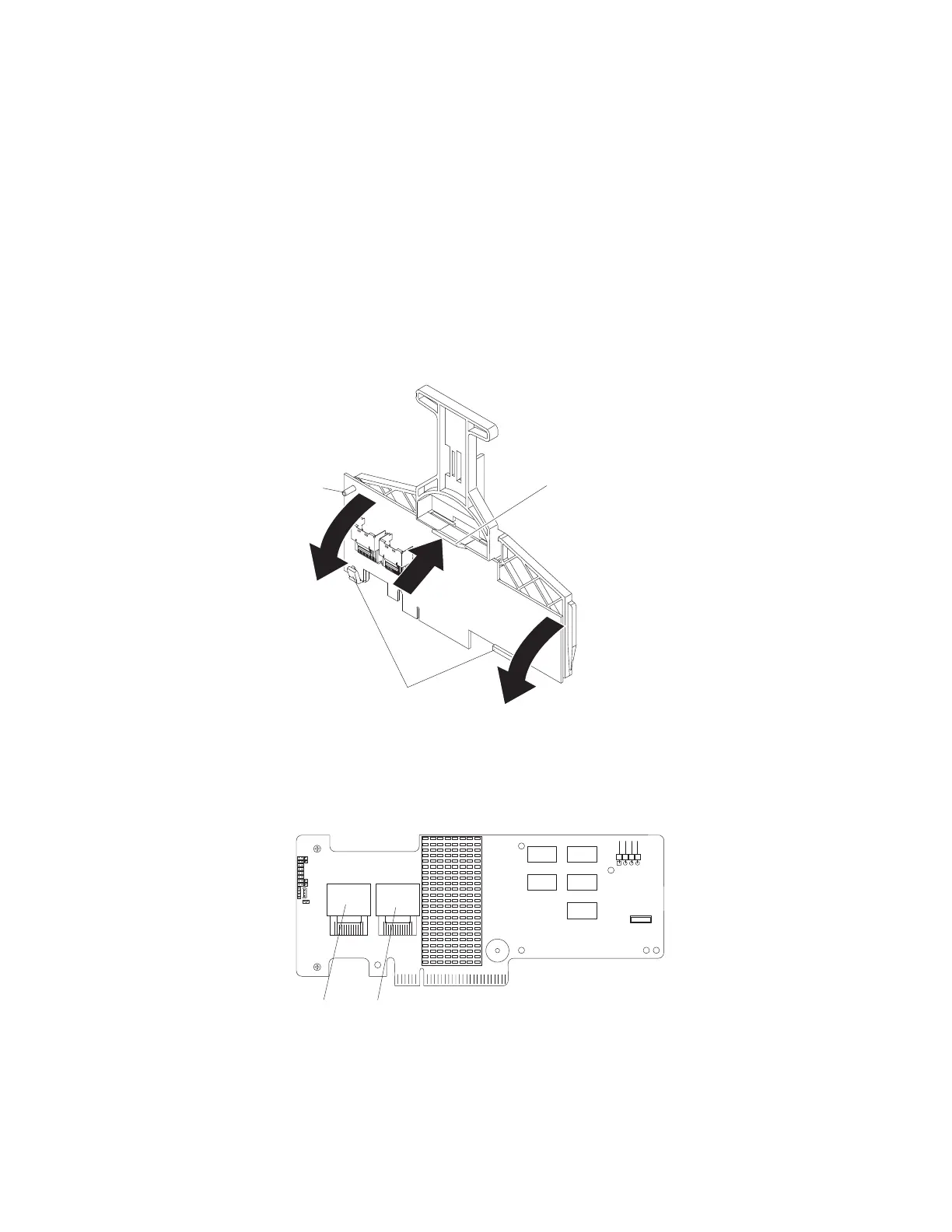

2. Install the replacement RAID adapter onto the RAID adapter carrier.
Release
latch
Tabs
Post
3. Connect the SAS cables to the RAID adapter.
Note: Attach the SAS cable from port 0 to the lower backplane and the SAS
cable from port 1 to the upper backplane (if one is installed).
Port 1 Port 0
ServeRAID M5015 controller
Chapter 5. Removing and replacing components 149
