c. Using the triangle on the microprocessor to align it with the installation
tool, place the microprocessor on the underside of the tool.
d. Twist the handle of the installation tool clockwise to secure the
microprocessor in the tool.
Note: You can pick up or release the microprocessor by twisting the
microprocessor installation tool handle clockwise.
Handle
Installation
tool
Microprocessor

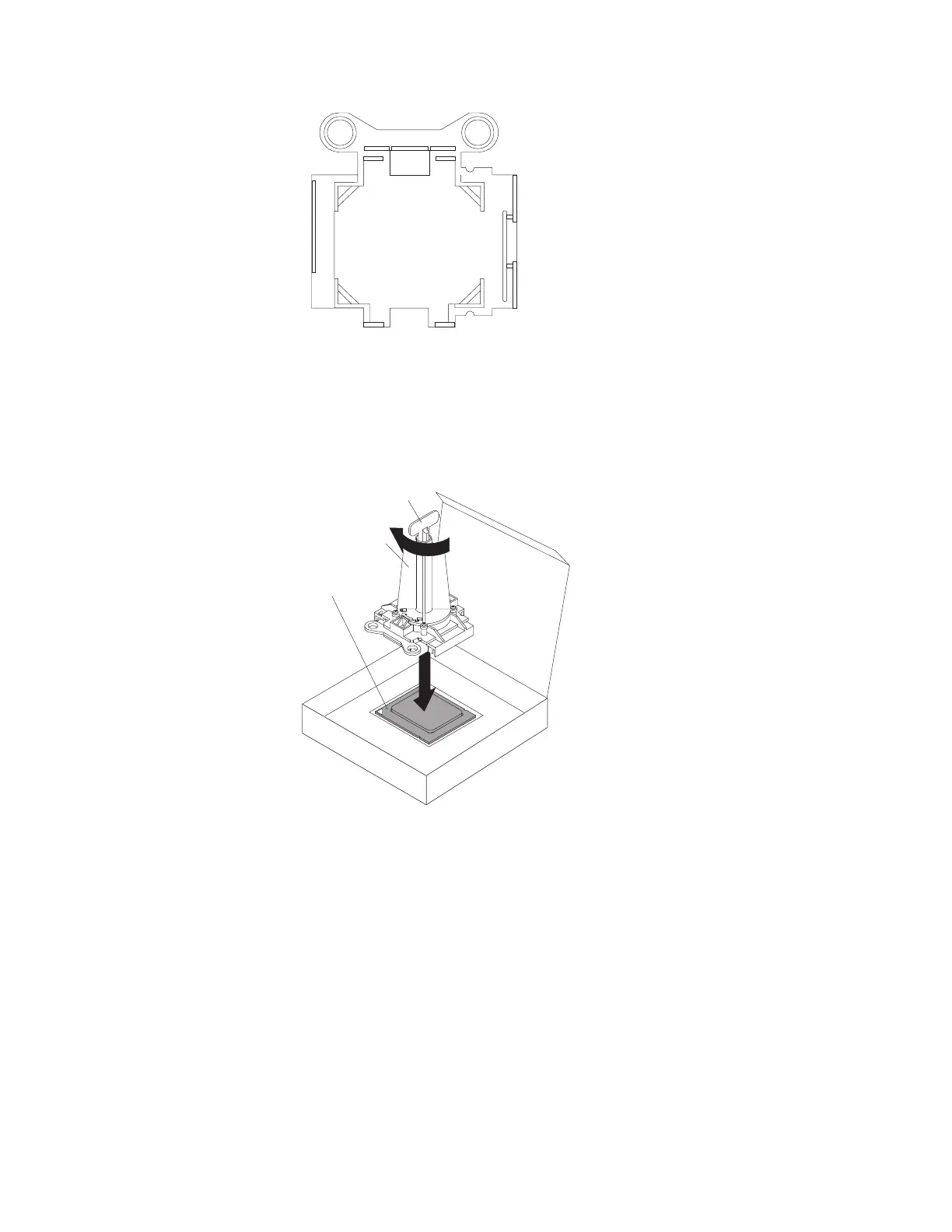

7. Carefully position the microprocessor with the microprocessor tool over the
microprocessor socket. Twist the microprocessor installation tool
counterclockwise to insert the microprocessor into the socket.
168 IBM System x3850 X5 and x3950 X5 Types 7145, 7146, 7143, and 7191: Problem Determination and Service Guide
