Removing the memory expansion module air baffle
This topic provides instructions for how to remove the air baffle in the memory
expansion module.
About this task
To remove the air baffle in the memory expansion module, complete the following
steps:
Procedure
1. Read the safety information that begins with “Safety” on page v and
“Installation guidelines” on page 97.
2. Turn off the host server (see “Turning off the server” on page 21) and all
attached peripheral devices. Disconnect all power cords from the memory
expansion module; then, disconnect all external cables from the memory
expansion module as necessary to replace the device.
3. Remove the bezel (see “Removing the memory expansion module bezel” on
page 177).
4. Remove the system-board tray (see “Removing the memory expansion module
system-board tray assembly” on page 197).

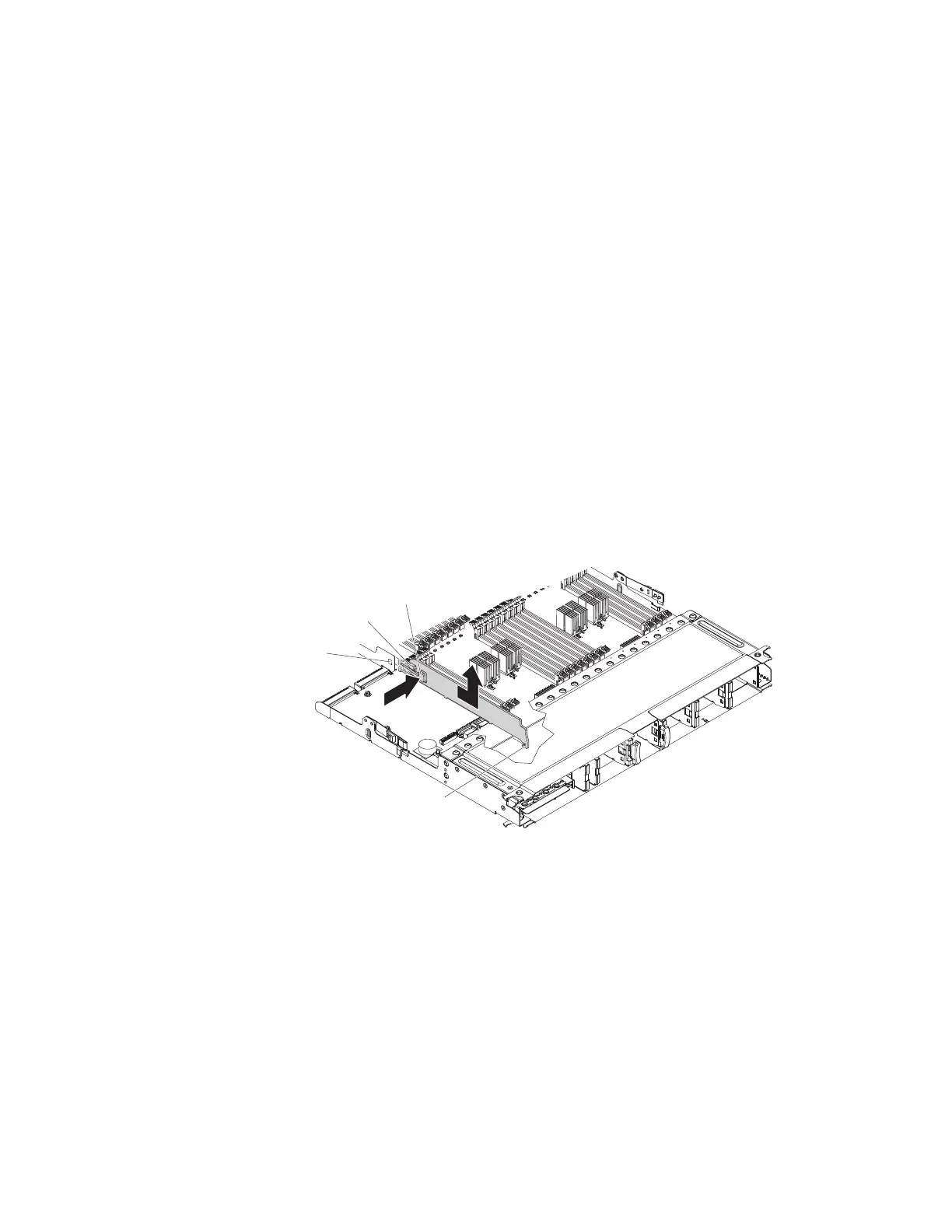

5. Press the air baffle release tab in and lift the air baffle out of the slot on the
system-board tray wall (near the rear of DIMM 1) to release it; then, push the
air baffle forward sightly to unhook it from the system board and set it aside.
Alignment tab
Slot
Release
latch
Ta b
Chapter 5. Removing and replacing components 179
