BATTERY CHARGING
1010

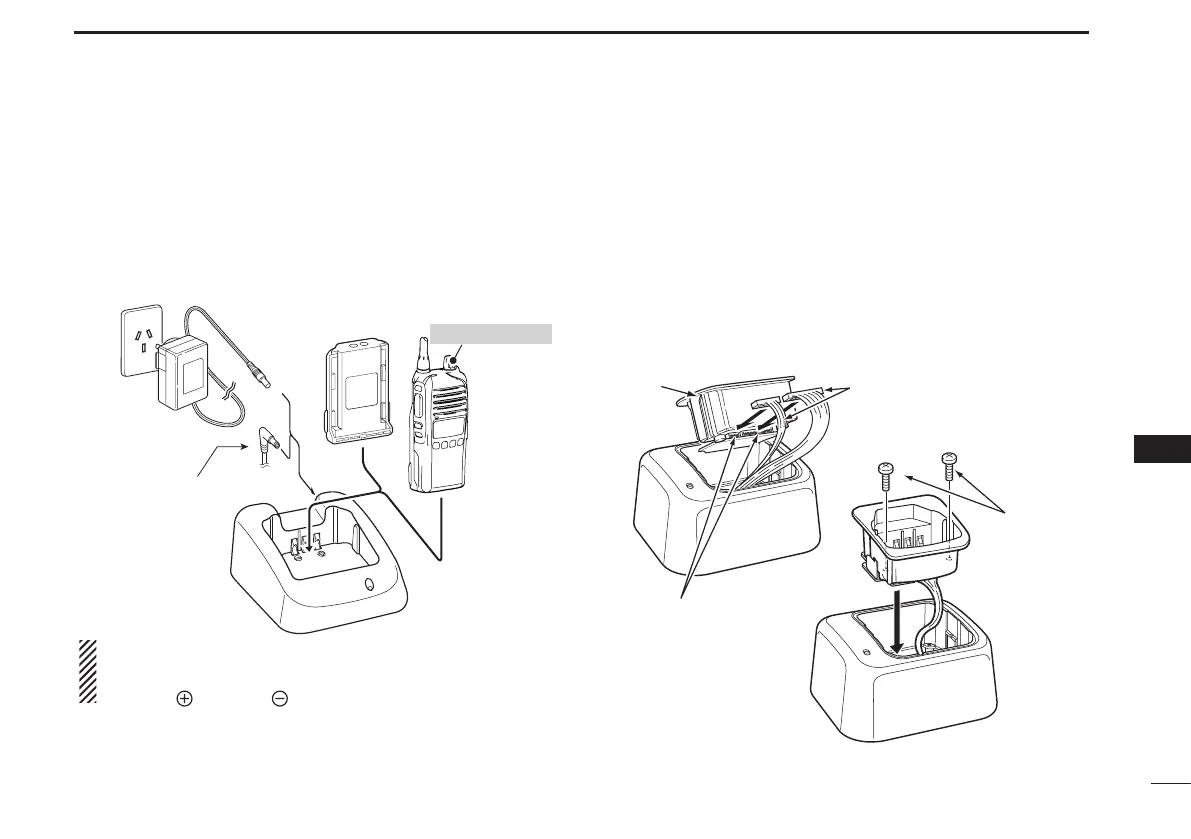

Rapid charging with the BC-160 ■
The BC-160 provides rapid charging of the Li-ion battery
packs.
Charging period: Approximately 3.5 hours.
The following items are additionally required:
•AnACadapterortheDCpowercable(OPC-515L/CP-23L)
AC adapter
Optional OPC-515L
(for 13.8 V power
source) or CP-23L
(for 12 V cigarette
lighter socket) can
be used instead of
the AC adapter.
*
TransceiverBattery
pack
Tu rn power OFF
CAUTION: NEVER connect the OPC-
515L to a power source using reverse
polarity. This will ruin the battery charger.
White line: Black line
:
*
Optional battery chargers ■
AD-106 installation D
The AD-106 c h a r g e r a d a p t e r must be installed into the BC-
119N or BC-121N before battery charging.
q Connect the AD-106
c h a r g e r a d a p t e r and the BC-119N/
BC-121N.
w Install the AD-106 into the holder space of the BC-119N or
BC-121N with the supplied screws.
Screws supplied
with the charger
adapter
AD-106
Connectors
Plugs
To Next Page
