3
2
UNIT DESCRIPTION
1
2
1

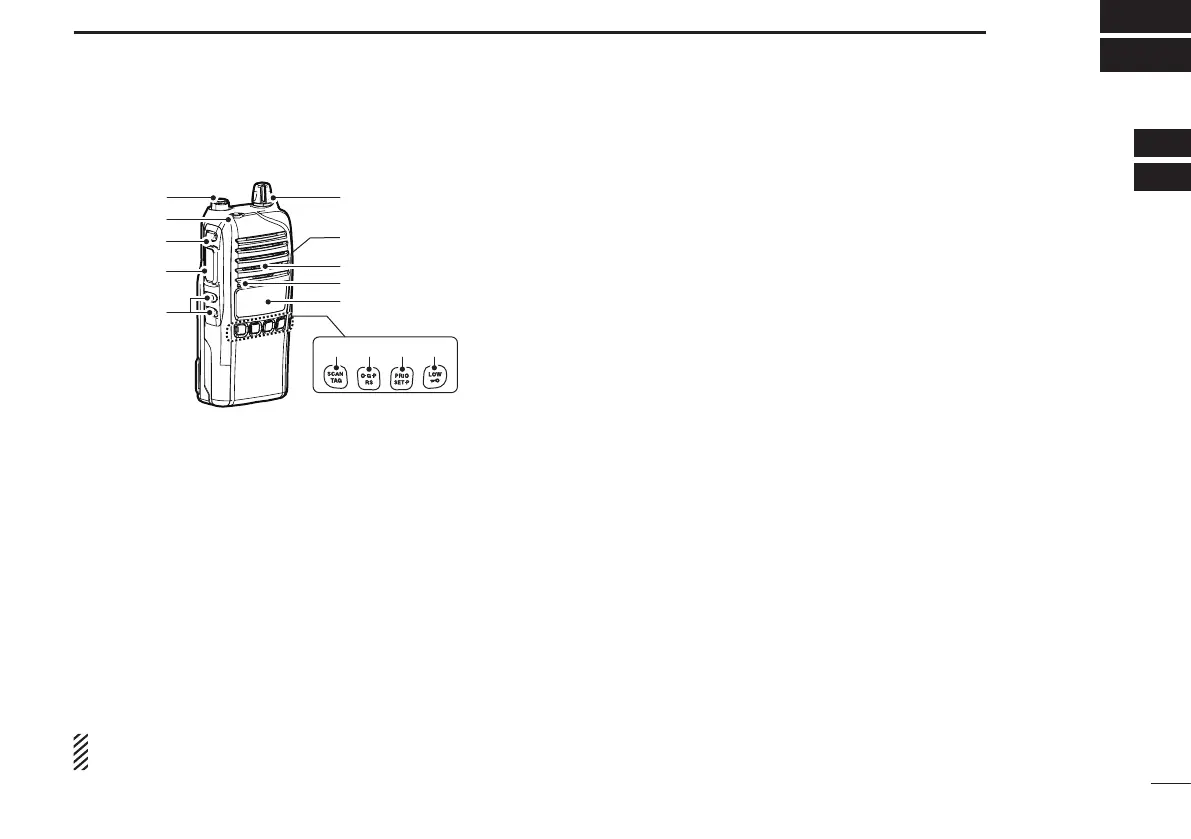

Front panel ■
q
w
r
e
u
i
y
Microphone
Speaker
t
o!0!1!2
q ANTENNA CONNECTOR
Connects the supplied antenna.
w TOP KEY [TOP]
Toggles Normal (N), Function (F) and Set (S) modes.
In Normal mode
Push to turn Function mode ON. (“F” is displayed) ➥
Push and hold for 2 seconds to enter set mode (p. 11). ➥
In Function mode
Push to return to Normal mode. ➥
When a receive channel is selected (once enabled), ➥
push and hold for 2 seconds to enter RX VFO (receive
frequency select) mode. (p. 29
)
NOTE : After 30 seconds in Function mode with no opera-
tion, unit will return to Normal mode.
e SIDE1 KEY [Side1]
In Normal mode
Push to toggle the monitor (open tone squelch) func- ➥
tion ON or OFF. (p. 10)
Push and hold for 2 seconds to activate the following ➥
functions in order:
•Tone squelch (only receive calls with same tone squelch
code). “T SQL ”appears. (p. 21)
•Pocket beep (informs that a call was missed). “T SQL ë”
appears. (p. 21)
•Notoneoperation.“TSQLë” disappears.
In Function mode
Push to enter squelch setting mode, then push [CH Up] ➥
or [CH Down] to set the squelch level. (p. 10)
Push and hold for 2 seconds to turn the ATS (Auto- ➥
matic Transponder System) function ON or OFF.
(p. 28)
r PTT SWITCH [PTT] (p. 9)
Push and hold to transmit. Release to receive. ➥
A PTT hold function is also available. See page 30 for ➥
more information.
t CH UP/CH DOWN KEYS
y VOLUME CONTROL
Rotate to turn power ON or OFF and set operating volume.
u EXTERNAL SPEAKER JACK
Connect an optional speaker microphone. Ensure power is
OFF before connecting external devices.
