BATTERY CHARGING

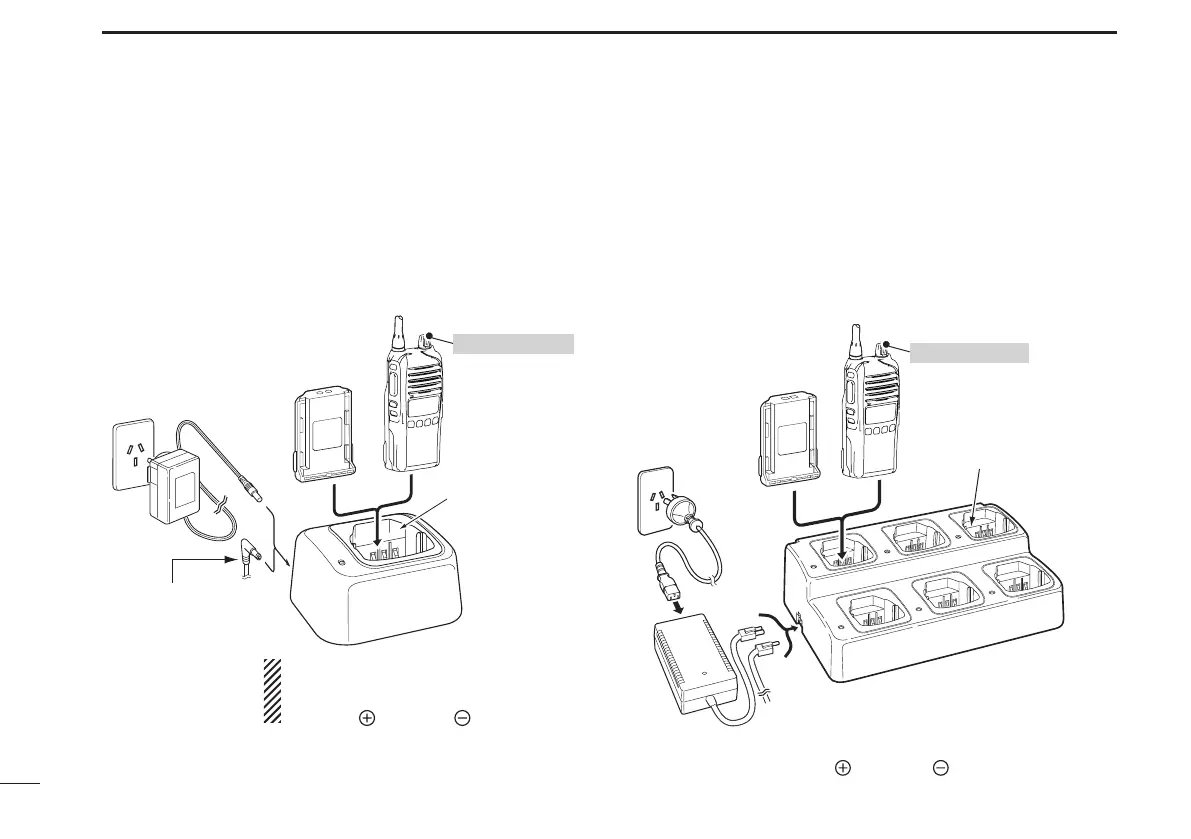

Rapid charging with the BC-119N+AD-106 D
The optional BC-119N provides rapid charging of the Li-ion
battery pack.
Charging period: Approximately 3.5 hours.
The following items are additionally required.
•AD-106c h a r g e r a d a p t e r (purchase separately)
•AnACadapterortheDCpowercable(OPC-515L/CP-23L).
AC adapter
AD-106 charger
adapter is installed
in BC-119N.
Optional OPC-515L
(for 13.8 V power
source) or CP-23L
(for 12 V cigarette
lighter socket) can
be used instead of
the AC adapter.
Transceiver
Battery
pack
Tu rn power OFF
CAUTION: NEVER connect the OPC-
515L to a power source using reverse
polarity. This will ruin the battery charger.
White line: Black line
:
*
*
Rapid charging with the BC-121N+AD-106 D
The optional BC-121N allows up to 6 battery packs to be
charged simultaneously.
Charging period: Approximately 3.5 hours.
The following items are additionally required.
•SixAD-106chargeradapters
•An AC adapter (BC-157S) or the DC power cable (OPC-
656)
Battery
pack
AD-106 charger
adapters are installed
in each slot.
Transceiver
DC power cable (OPC-656)
(Connect with the DC power supply; 13.8 V/at least 7 A)
*About the OPC-656
Red line : Black line :
Tu rn power OFF
AC adapter
(Purchased
separately)
