Icom IC-7100

1
PANEL DESCRIPTION
1-11
Previous view

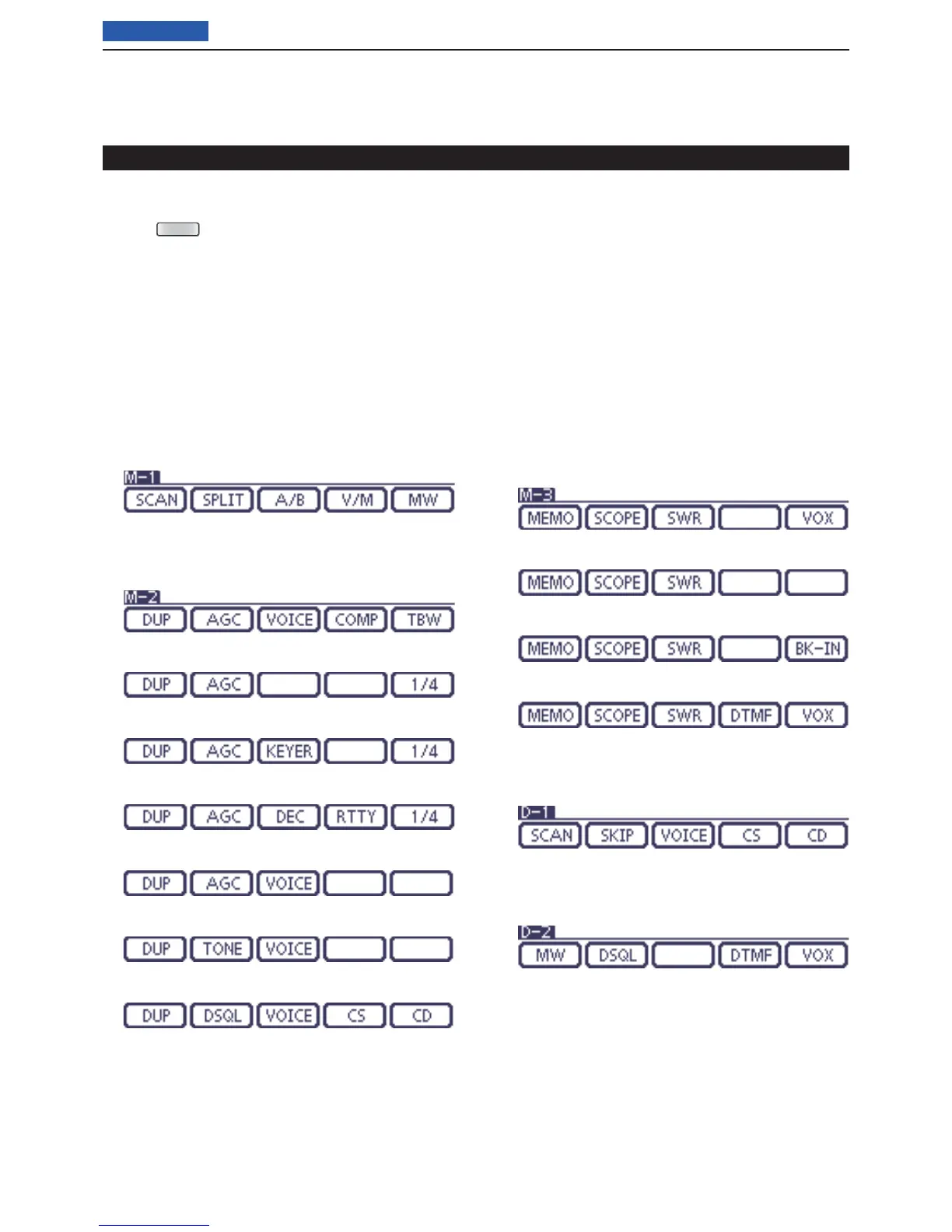

Front panel (Controller) (Continued)
Display D
Push ➥
MENU
to change the set of functions assigned
to touch keys.
• Toggles the function display menu between M-1 (M-1
menu), M-2 (M-2 menu), M-3 (M-3 menu), D-1 (D-1
menu) and D-2 (D-2 menu).
• Functions vary, depending on the operating mode.
• In the DR mode, the D-1 (D-1 menu) and D-2 (D-2 menu)
can be selected.
Touch or touch for 1 second to select the displayed ➥
functions.
M-1 (M-1 menu) Display D
M-2 (M-2 menu) Display D
(Mode: SSB)
(Mode: SSB-D)
(Mode: CW)
(Mode: RTTY)
(Mode: AM/AM-D)
(Mode: FM/FM-D/WFM)
(Mode: DV)
M-3 (M-3 menu) Display D
(Mode: SSB/AM/AM-D)
(Mode: SSB-D/RTTY)
(Mode: CW)
(Mode: FM/FM-D/WFM/DV)
D-1 (D-1 menu) Display D
(Mode: DV, when the DR mode is selected)
D-2 (D-2 menu) Display D
(Mode: DV, when the DR mode is selected)
