IEI Technology TANK-820-H61 Series User Manual

TANK -820-H61 E mbedded S ystem
Page 6
1.5 Front Panel
The front panel of the TANK-820-H61 has the following features (Figure 1-2):

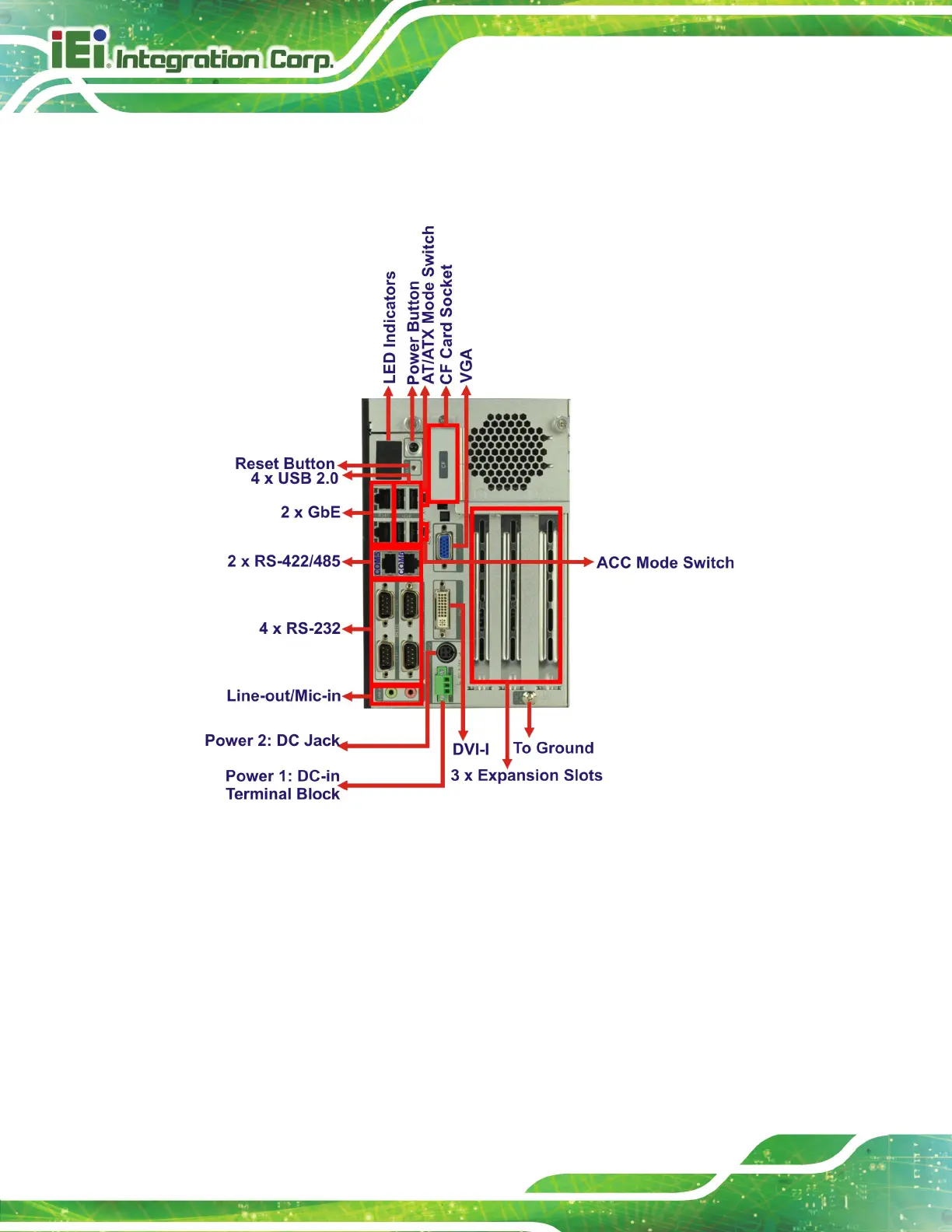

Figure 1-2: TANK-820-H61 Front Panel
Connectors and buttons on the front panel include the following:
 1 x 4-pin power DC jack for 9 V ~ 24 V power input
 1 x Power terminal block for 9 V ~ 24 V power input
 1 x Mic-in port (pink)
 1 x Line-out port (green)
 4 x RS-232 serial ports (DB-9)
 2 x RS-422/485 serial ports (RJ-45)
 2 x Gigabit Ethernet ports (RJ-45)
