IEI Technology TANK-820-H61 Series User Manual

TANK -820-H61 E mbedded S ystem
Page 20

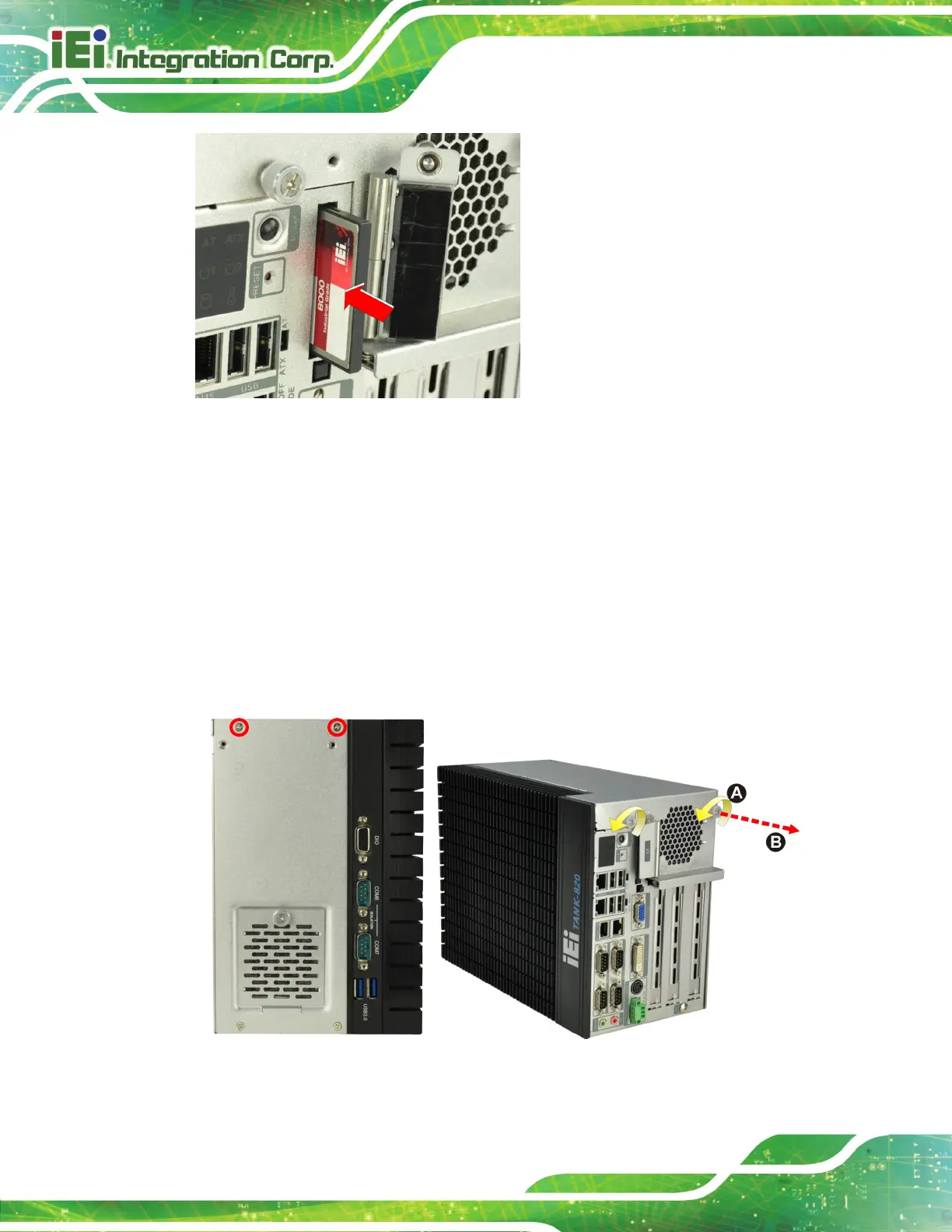

Figure 3-3: CF Card Installation
S tep 4: Reinstall the cover.
3.3 Hard Dis k Drive (HDD) Installation
To install the hard drive, please follow the steps below:
S tep 1: Remove the two retention screws on the rear panel and loosen the two
thumbscrews on the front panel, slide the cover inwards, and then lift the cover
up gently (Figure 3-4).
Figure 3-4: Unscrew the Cover
