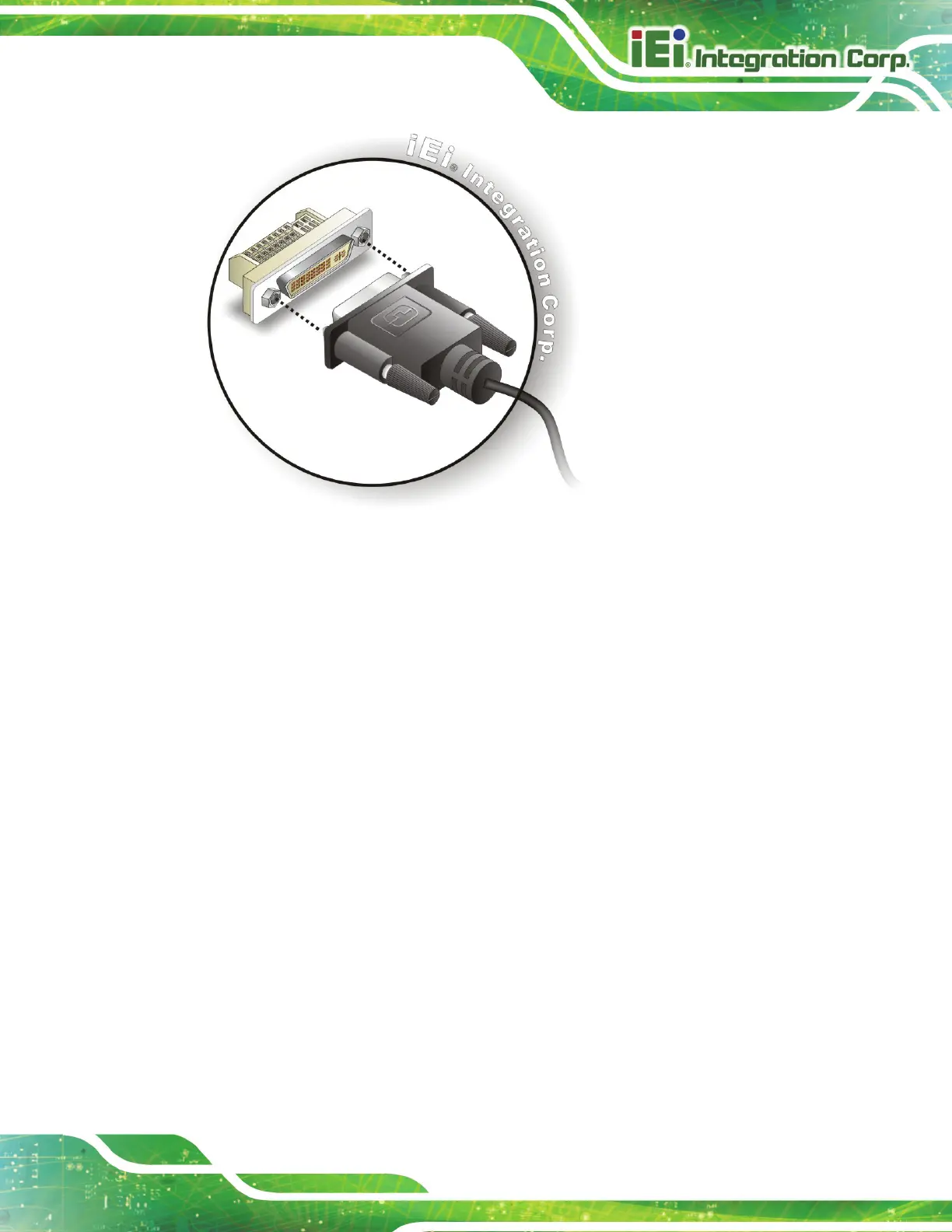

Figure 3-15: DVI Connector
S tep 4: Secure the connector. Secure the DVI connector from the digital display device
to the external interface by tightening the two retention screws on either side of
the connector.
3.7.7 LAN Connectors
The LAN connectors allow connection to an external network.
S tep 1: Locate the RJ-45 connectors. The locations of the RJ-45 connectors are
shown in Figure 1-2.
S tep 2: Align the connectors. Align the RJ-45 connector on the LAN cable with one of
the RJ-45 connectors on the TANK-820-H61. See Figure 3-16.
