TANK -820-H61 E mbedded S ystem
Page 27

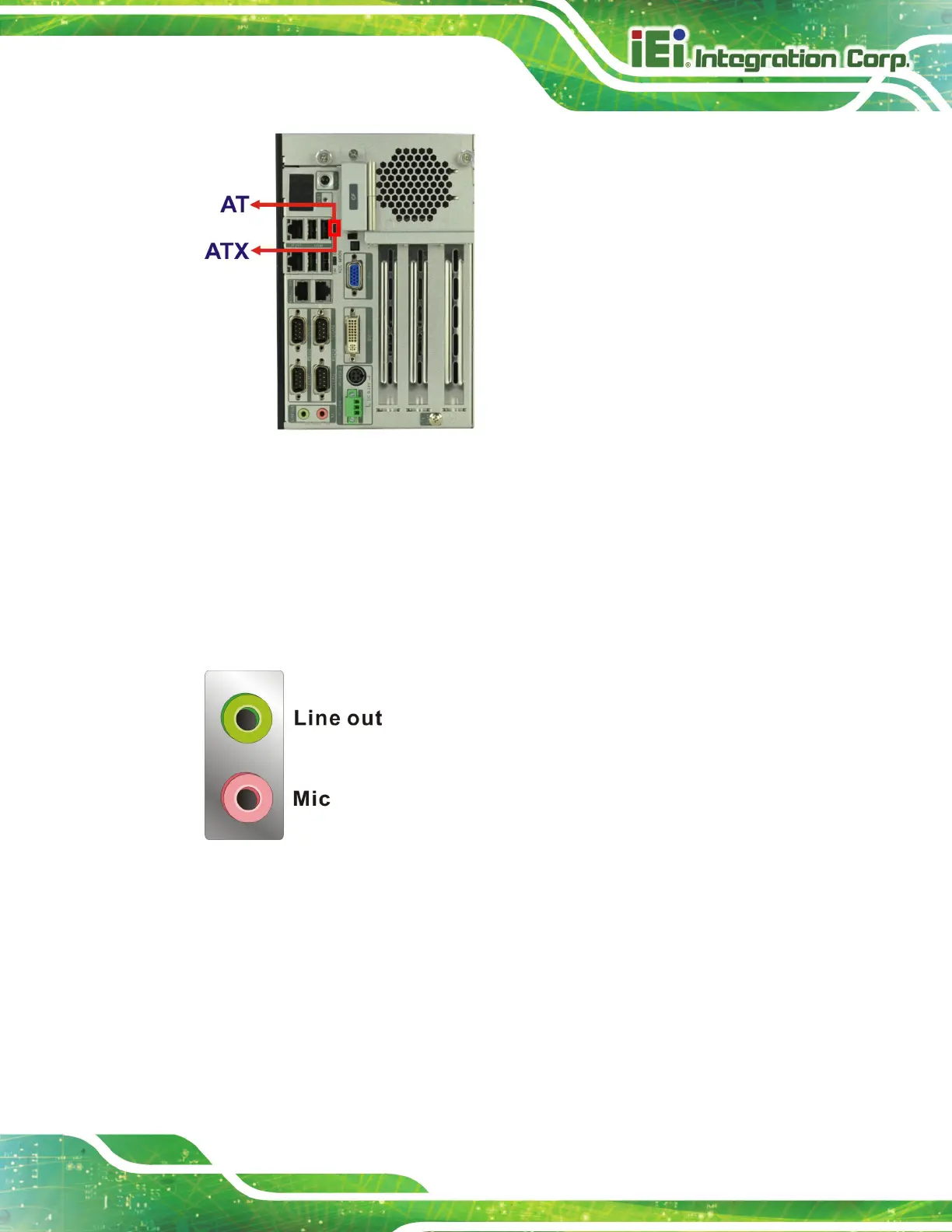

Figure 3-12: AT/ATX Power Mode Switch
3.7.3 Audio Connector
The audio jacks connect to external audio devices.
Line Out port (Green): Connects to a headphone or a speaker. With
multi-channel configurations, this port can also connect to front speakers.
Microphone (Pink): Connects a microphone.
Figure 3-13: Audio Connector
3.7.4 CompactFlas h® Type II
The TANK-820-H61 has one CF Type II socket. The location of the socket is shown in
Figure 1-2. To install the CF card, refer to Section 3.2.
