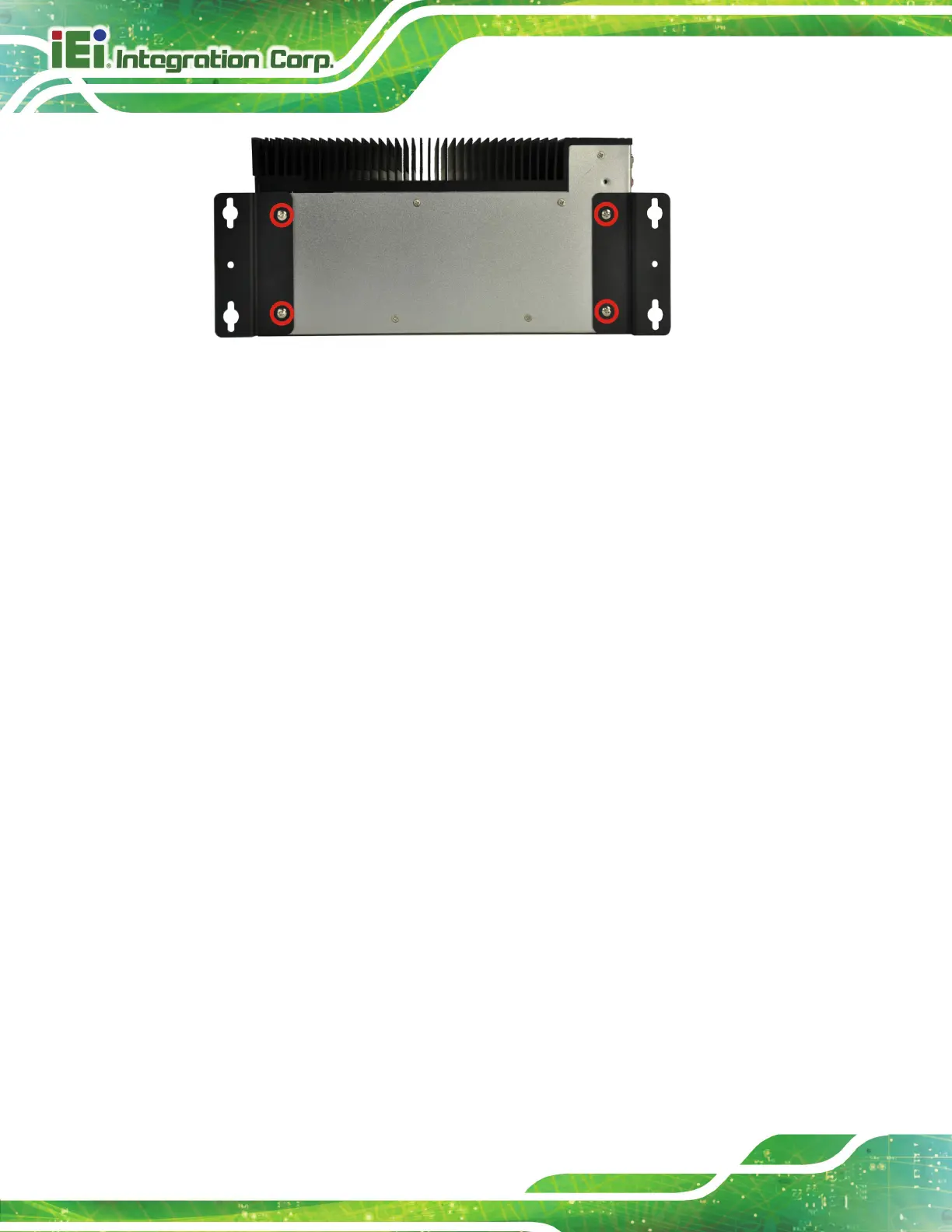

Figure 3-9: Mounting Bracket Retention Screws
S tep 3: Secure the brackets to the system by inserting two retention screws into each
bracket (Figure 3-9).
S tep 4: Drill holes in the intended installation surface.
S tep 5: Align the mounting holes in the sides of the mounting brackets with the predrilled
holes in the mounting surface.
S tep 6: Insert four retention screws, two in each bracket, to secure the system to the
wall.
3.6 Foot Pad Installation
The TANK-820-H61 is shipped with four foot pads. To install the foot pads, follow the
instructions below.
S tep 1: Turn the TANK-820-H61 to the left side panel.
S tep 2: Locate the four retention screw holes for the food pad in the bottom surface.
S tep 3: Align the hole of the foot pad with the retention screw holes on the bottom
surface.
S tep 4: Secure the foot pad to the chassis by inserting the retention screw. S tep 0:
