TANK -820-H61 E mbedded S ystem
Page 32

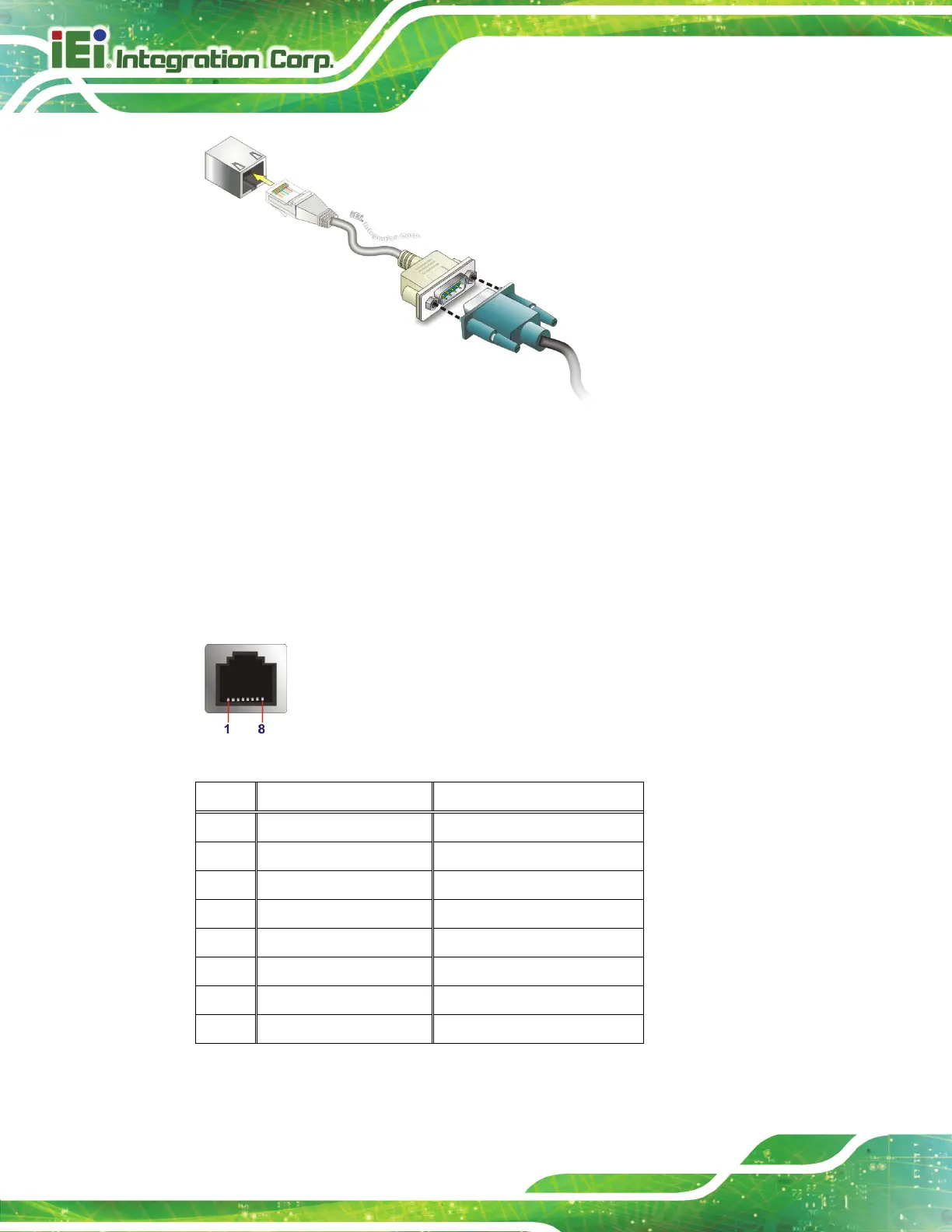

Figure 3-20: RJ-45 RS-422/485 Serial Device Connection
S tep 3: Insert the serial connector. Insert the DB-9 connector of a serial device into
the DB-9 connector on the RJ-45 to DB-9 COM port cable.
S tep 4: Secure the connector. Secure the serial device connector to the external
interface by tightening the two retention screws on either side of the connector.
Figure 3-21: RJ-45 RS-422/485 Serial Port Connector
Pin Description (RS-422)
Description (RS-485)
1 N/A N/A
2 TXD422# TXD485#
3 N/A N/A
4 TXD422+ TXD485+
5 GND GND
6 RXD422# N/A
7 N/A N/A
8 RXD422+ N/A
Table 3-2: RJ-45 RS-422/485 Serial Port Pinouts
