IEI Technology TANK-820-H61 Series User Manual

TANK -820-H61 E mbedded S ystem
Page 21
S tep 2: Unplug the SATA signal and power cables connected to the TANK-820-H61, and
then put the cover on a flat surface (Figure 3-5).

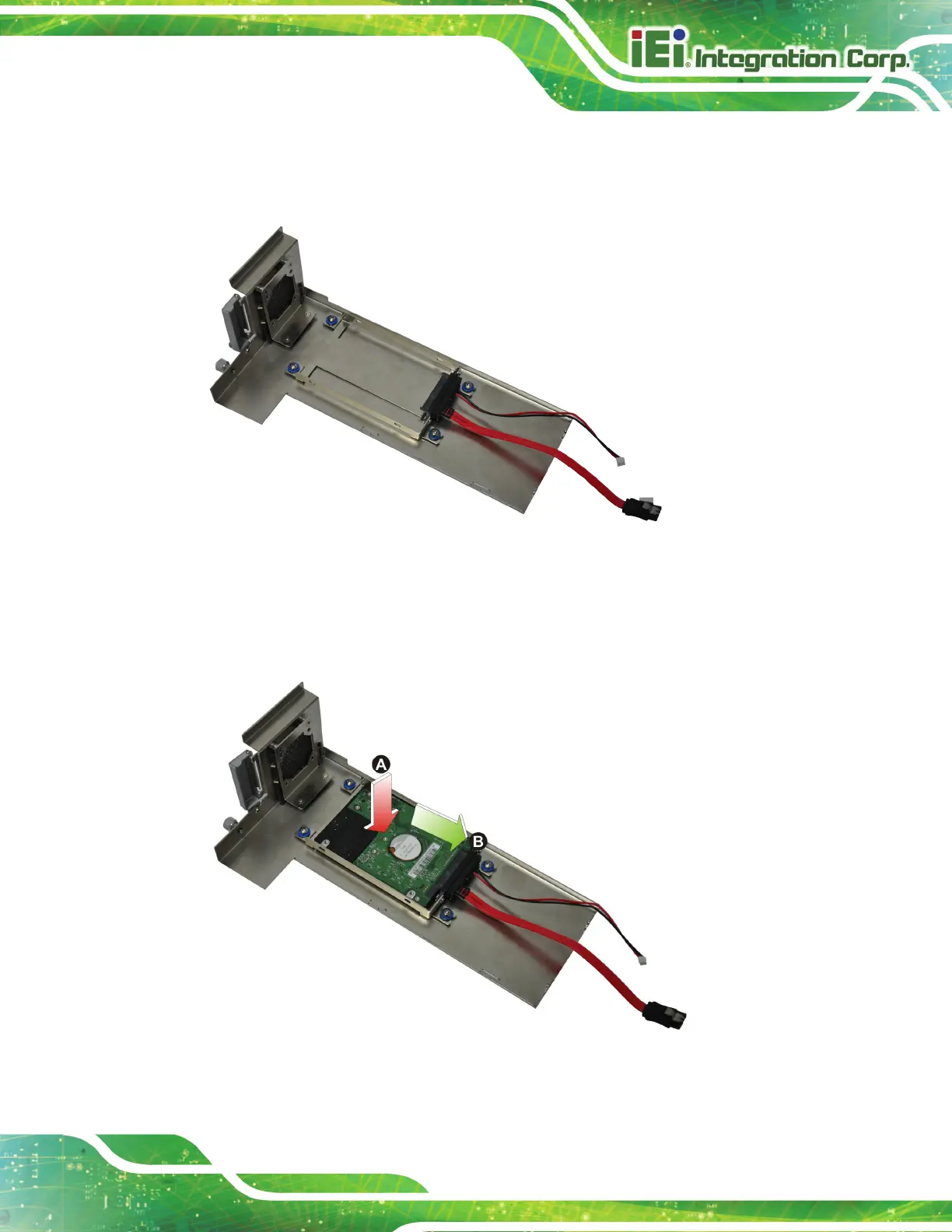

Figure 3-5: Remove the Cover from TANK-820-H61
S tep 3: Attach the HDD to the HDD bracket, and then slide the HDD to connect the HDD
to the SATA connector (Figure 3-6).
Figure 3-6: HDD Installation

IEI Technology TANK-820-H61 Series Specifications

General

Brand	IEI Technology
Model	TANK-820-H61 Series
Category	Desktop
Language	English
