IEI Technology TANK-820-H61 Series User Manual

TANK -820-H61 E mbedded S ystem
Page 25

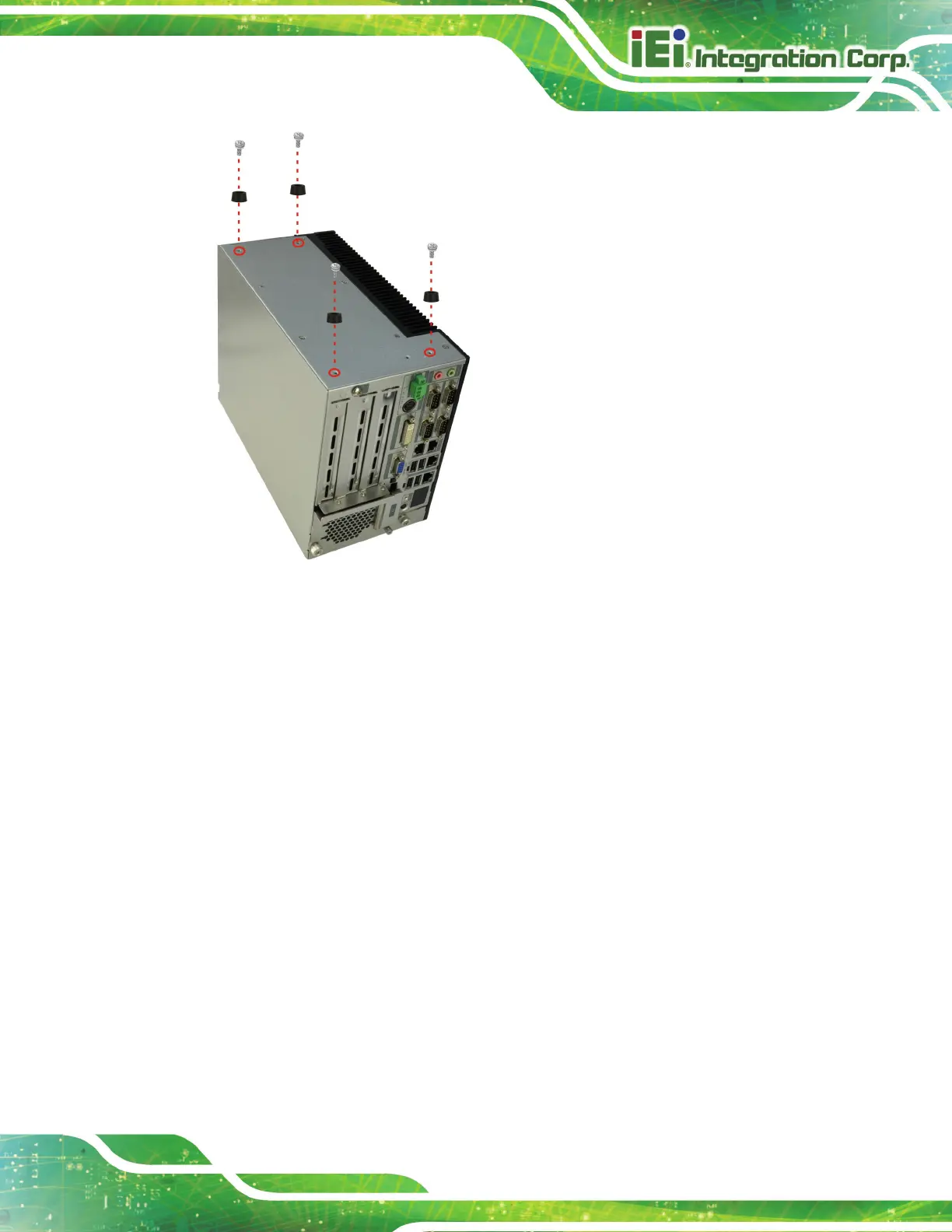

Figure 3-10: Foot Pad Installation
3.7 E xternal Peripheral Interface Connectors
The TANK-820-H61 has the following connectors. Detailed descriptions of the connectors
can be found in the subsections below.
 ACC mode switch
 AT/ATX power mode switch
 Audio
 CompactFlash® Type II
 DIO
 DVI-I
 Ethernet
 Power button
 Power DC jack
 Power terminal block
 Reset button
 RS-232
