1.8 Backplane Options

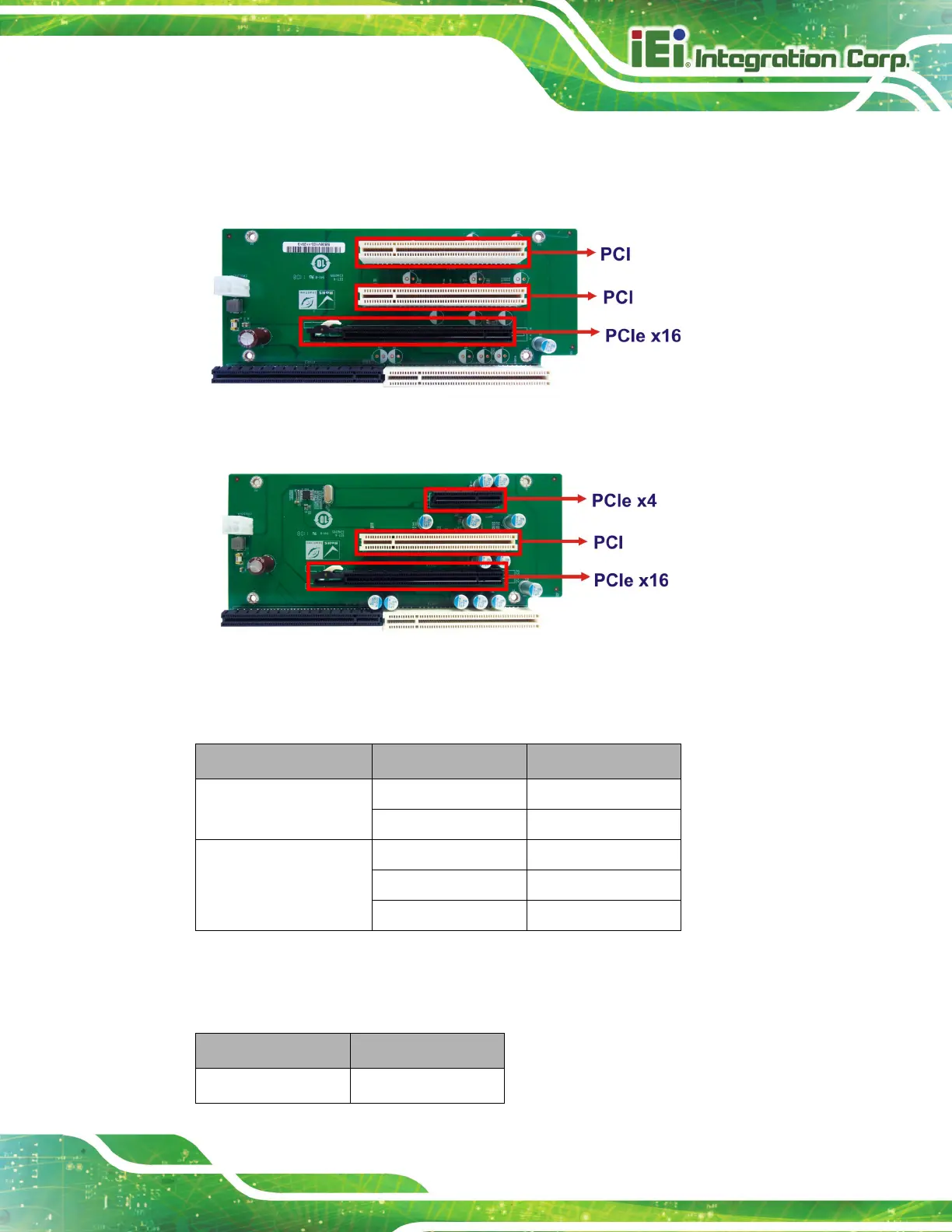

The backplane options of the TANK-820-H61 are shown below.
Figure 1-5: HPE-3S6 (2P1E)
Figure 1-6: HPE-3S7 (1P2E)
The supported signals of the backplane slots are listed below.
Backplane S lot Signal
HPE-3S6 (2P1E )
PCI PCI
PCIe x16 PCIe x8
HPE-3S7 (1P2E )
PCI PCI
PCIe x4 PCIe x1
PCIe x16 PCIe x8
Table 1-4: Supported Signals
The rated voltage and current of the backplanes are listed below.
R ated Voltage R ated Current
+5 V 7 A
