TANK -820-H61 E mbedded S ystem
Page 34

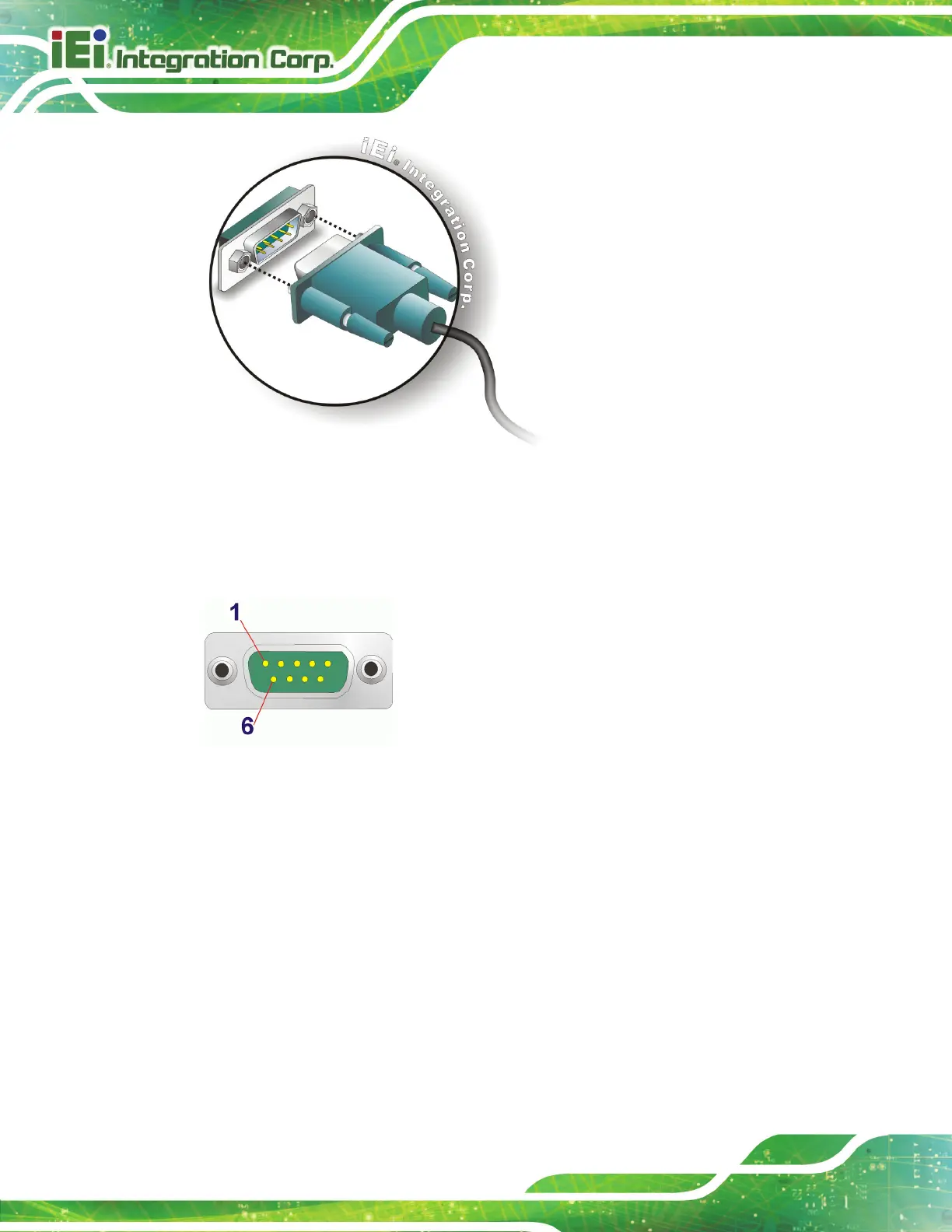

Figure 3-23: Serial Device Connector
S tep 3: Secure the connector. Secure the serial device connector to the external
interface by tightening the two retention screws on either side of the connector.
Figure 3-24: DB-9 RS-232 Serial Port Connector
3.7.12 US B Connectors
The USB ports are for connecting USB peripheral devices to the system.
S tep 1: Locate the USB connectors. The locations of the USB connectors are shown
in Figure 1-2.
S tep 2: Align the connectors. Align the USB device connector with one of the
connectors. See Figure 3-25.
