Hardware Configuration Setting

WEB-6580

【

R1.0

】

User’s Manual 2-3

2.3 Jumper Setting

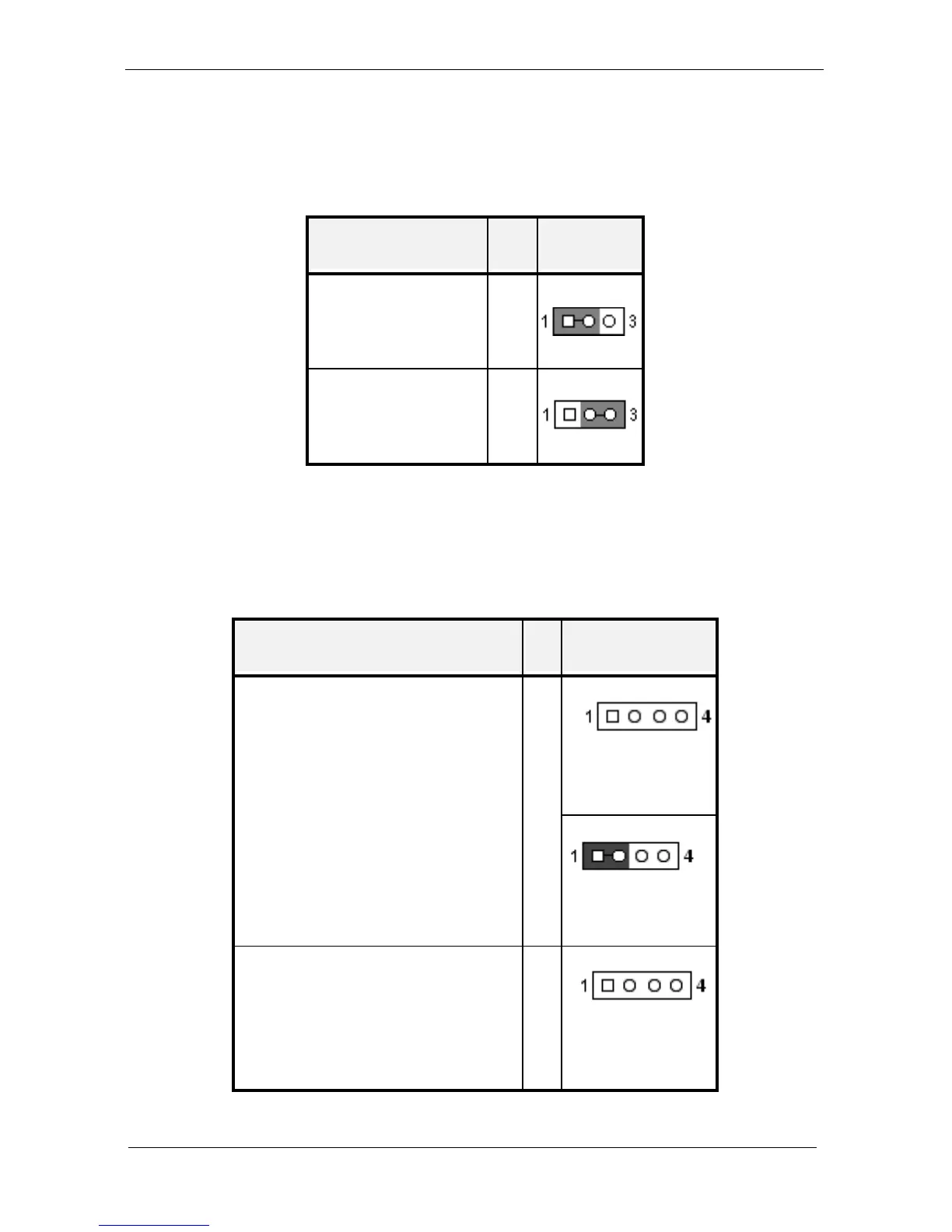

2-3-1 RTC CMOS Clear Jumper Setting (J12)

Description JP12 Illustration

Normal operation ♣

1-2

Clear CMOS content 2-3

Table 1-1 Clearing CMOS Content (JP12)

2-3-2 Watch-Dog Timer Jumper Setting (JP1)

Description JP1 Illustration

♣

Disable

Disable/Enable WDT function 1-2

Enable

I/O address for S/W programming 3-4

♣

0543H
