Hardware Configuration Setting
WEB-6580 【 R1.0 】 User’s Manual 2-6
2-4-1

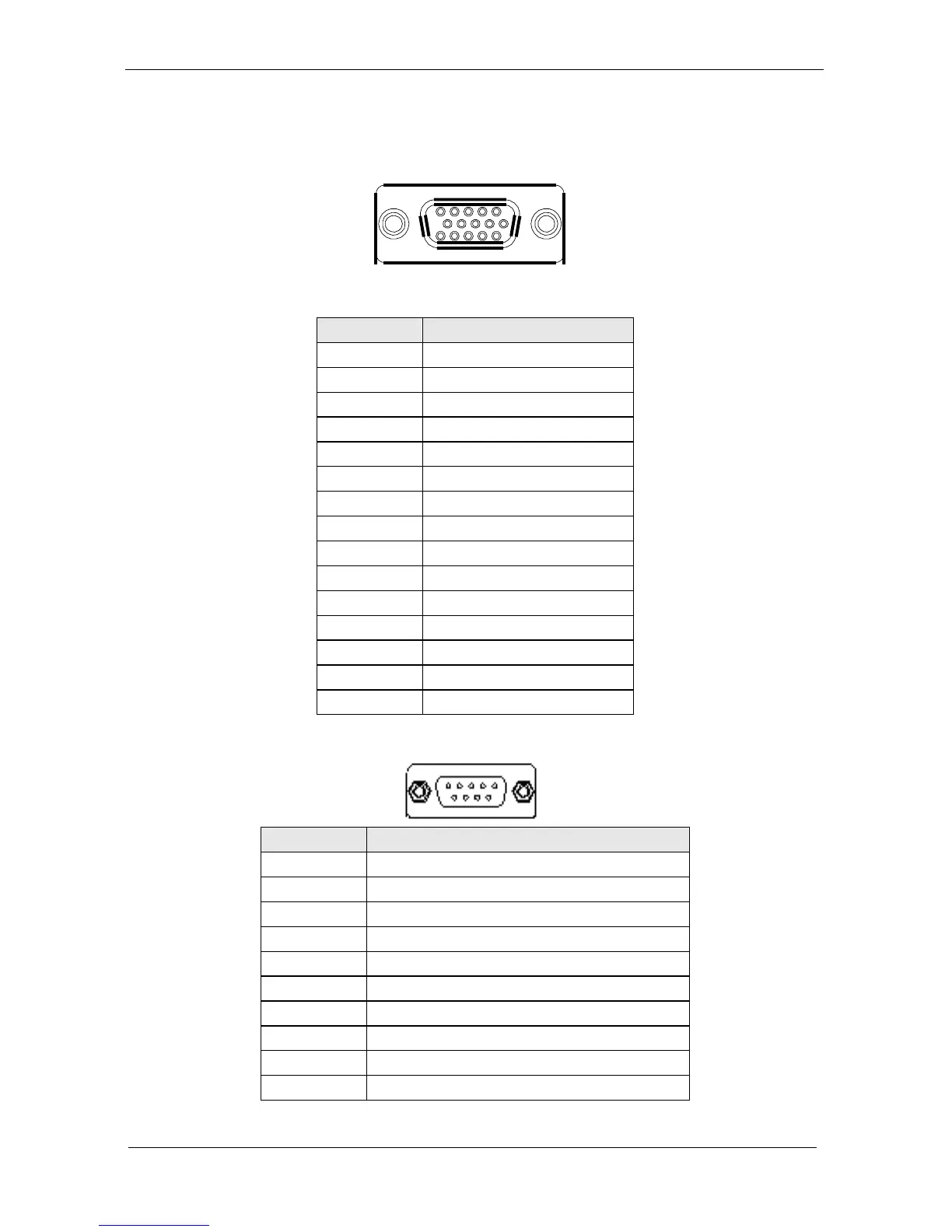

2-4-2 On Board VGA D-SUB15 Connector (J1)
PIN No. Signal Description
1 Red
2 Green
3 Blue
4 N/C
5 Ground
6 Ground
7 Ground
8 Ground
9 VCC
10 Ground
11 N/C
12 DDC Data
13 HSYNC
14 VSYNC
15 DDC Clock
2-4-3 COM1 DSUB9 Connector (J2)
PIN No. Signal Description
1 Data Carrier Detect
2 Received Data
3 Transmit Data
4 Data Terminal Ready
5 Ground
6 Data Set Ready
7 Request To Send
8 Clear To Send
9 Ring Indicator
10 Not used
