Hardware Configuration Setting

WEB-6580

【

R1.0

】

User’s Manual 2-12

PIN No. Signal Description PIN No. Signal Description

47 D8 48 D9

49 D10 50 Ground

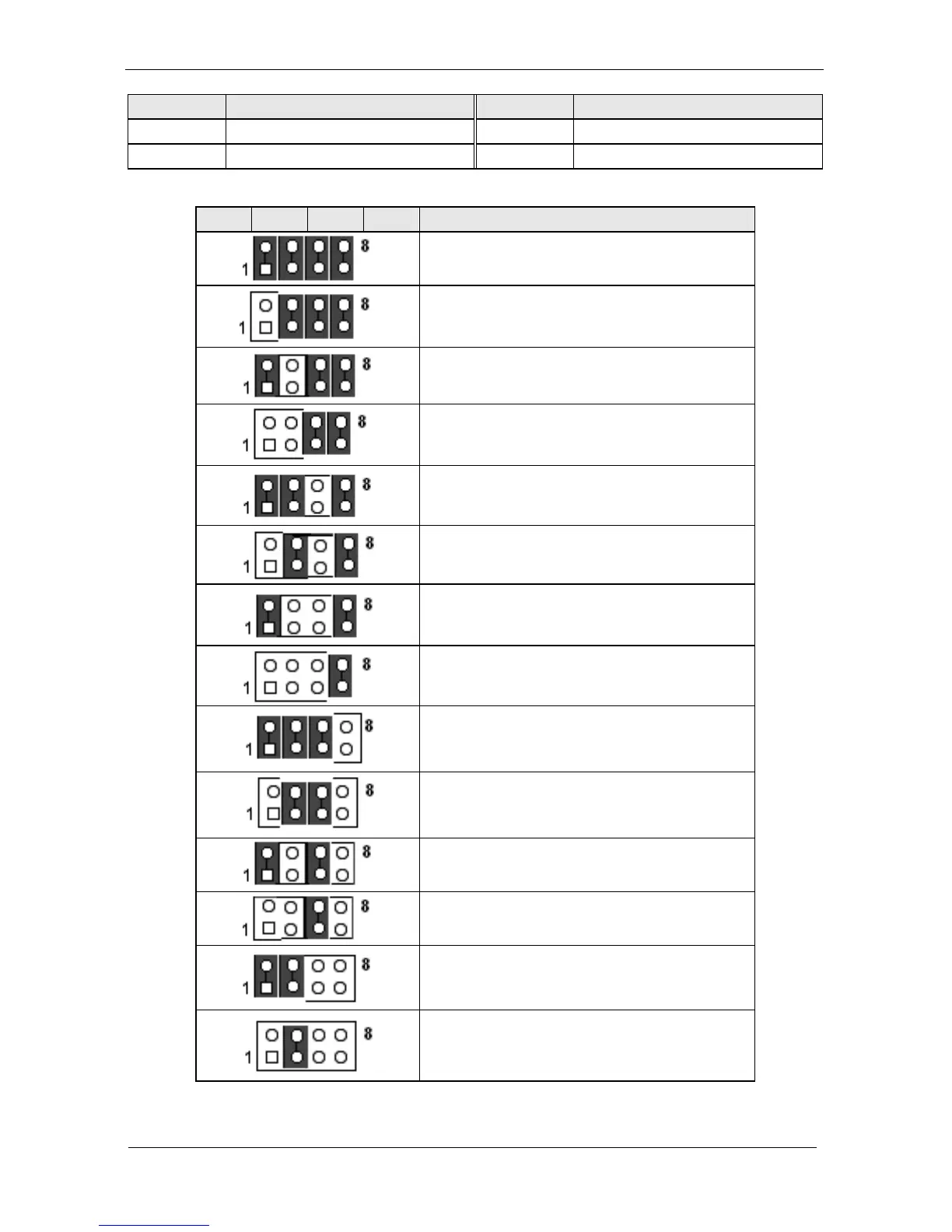

2-4-19 Panel Type Select (J22)

7-8 5-6 3-4 1-2 Panel Type

640x480 TFT

800x600 TFT

1024x768 TFT 2pixel/clk at 32Mhz

1280x1024 TFT

640x480 DSTN

800x600 DSTN

1024x768 DSTN

1024x768 TFT 1pixel/clk at 65Mhz

640x480 TFT

800x600 TFT

1024x768 TFT

1280x1024 TFT

1400x1050 TFT 2pixel/clk at 54Mhz

800x600 DSTN
