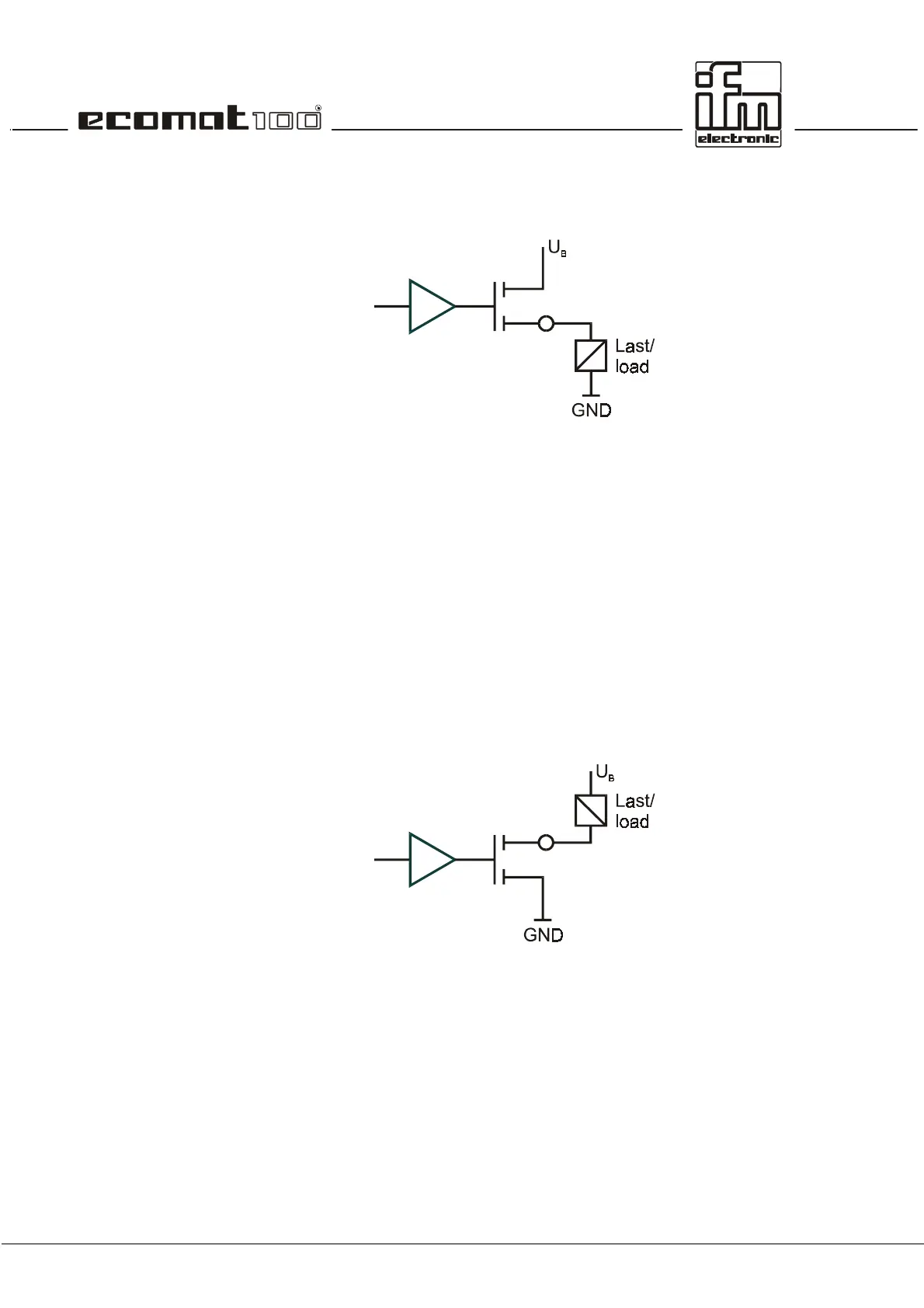

Binary output
High-Side (PNP):
Outputs QX0.0 ... QX0.23: semiconductor output; short-circuit and overload protection,
diagnostic capability as an option
switching voltage 10 ... 17 V (12 V DC); 11 ... 32 V (24 V DC)
switching current 50 mA ... 2.5 A
overload current 5 A
sum current 10 A (per 8 outputs)
output frequency max. 100 Hz (depending on the load)
Outputs QX0.00 ... QX0.07 special specification as PWM output
output frequency max. 1000 Hz
PWM mark/space ratio 1 ... 99%
resolution depending on the PWM frequency
Binary output
Low-Side (NPN):
Outputs QX0.0 ... QX0.23: semiconductor output; short-circuit and overload protection,
diagnostic capability as an option
switching voltage 10 ... 17 V (12 V DC); 11 ... 32 V (24 V
DC)
switching current 50 mA ... 2.5 A
overload current 5 A
sum current 10 A (per 8 outputs)
output frequency max. 100 Hz (depending on the load)
