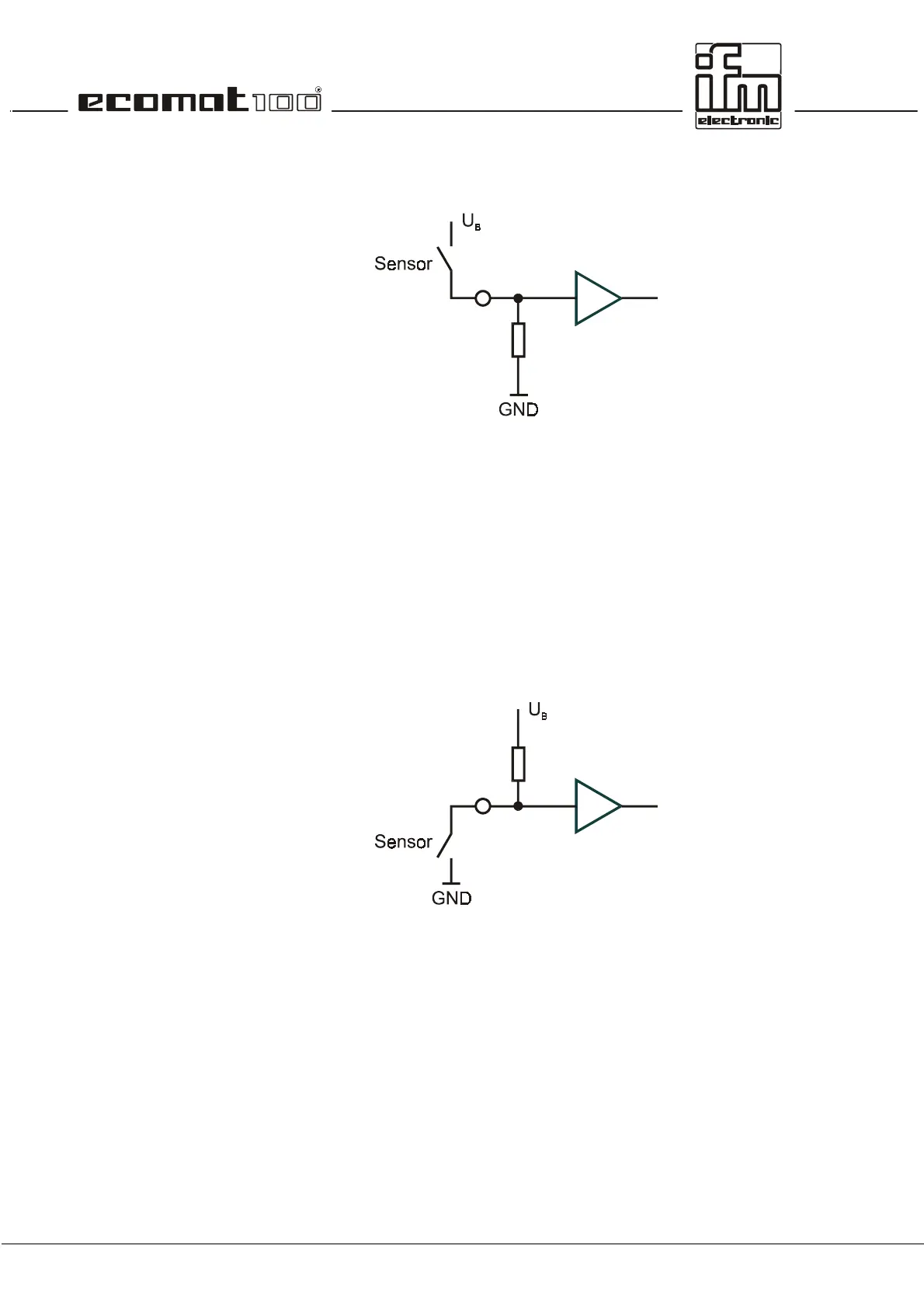

Binary input
Low-Side (PNP):
Inputs IX0.0 ... IX0.7: switch-on level U
B
≥
10 V, I
≥
3.3 mA
switch-off level U
B
≤
5 V, I
≤
1.7 mA
input frequency 50 Hz
Inputs IX0.8 ... IX0.39: switch-on level 0.6 U
B
... 0.8 U
B
, I
≥
6.7 mA
switch-off level 0.4 U
B
... 0.2 U
B
, I
≤
1.7 mA
input frequency 50 Hz
Pulse inputs IX0.12 ... IX0.15: input frequency 50 kHz
Pulse inputs IX0.20 ... IX0.23: input frequency 50 kHz
Binary input
High-Side (NPN):
Inputs IX0.8 ... IX0.39: switch-on level 0.05 U
B
... 0.04 U
B
, I
≥
7.7 mA
switch-off level 0.30 U
B
... 0.40 U
B
, I
≤
5.1 mA
input frequency 50 Hz
Analog input
Low-Side:
Inputs IW9 ... IW16: input voltage +0 ... 10 V
input impedance
≥
50 k
Ω
resolution 10 Bit
accuracy
≤ ±
1.0 % FS
