Imaje S8 Classic - DTOP, Message Printing and BUSY

A20733 B0 137
Input / Output Connections

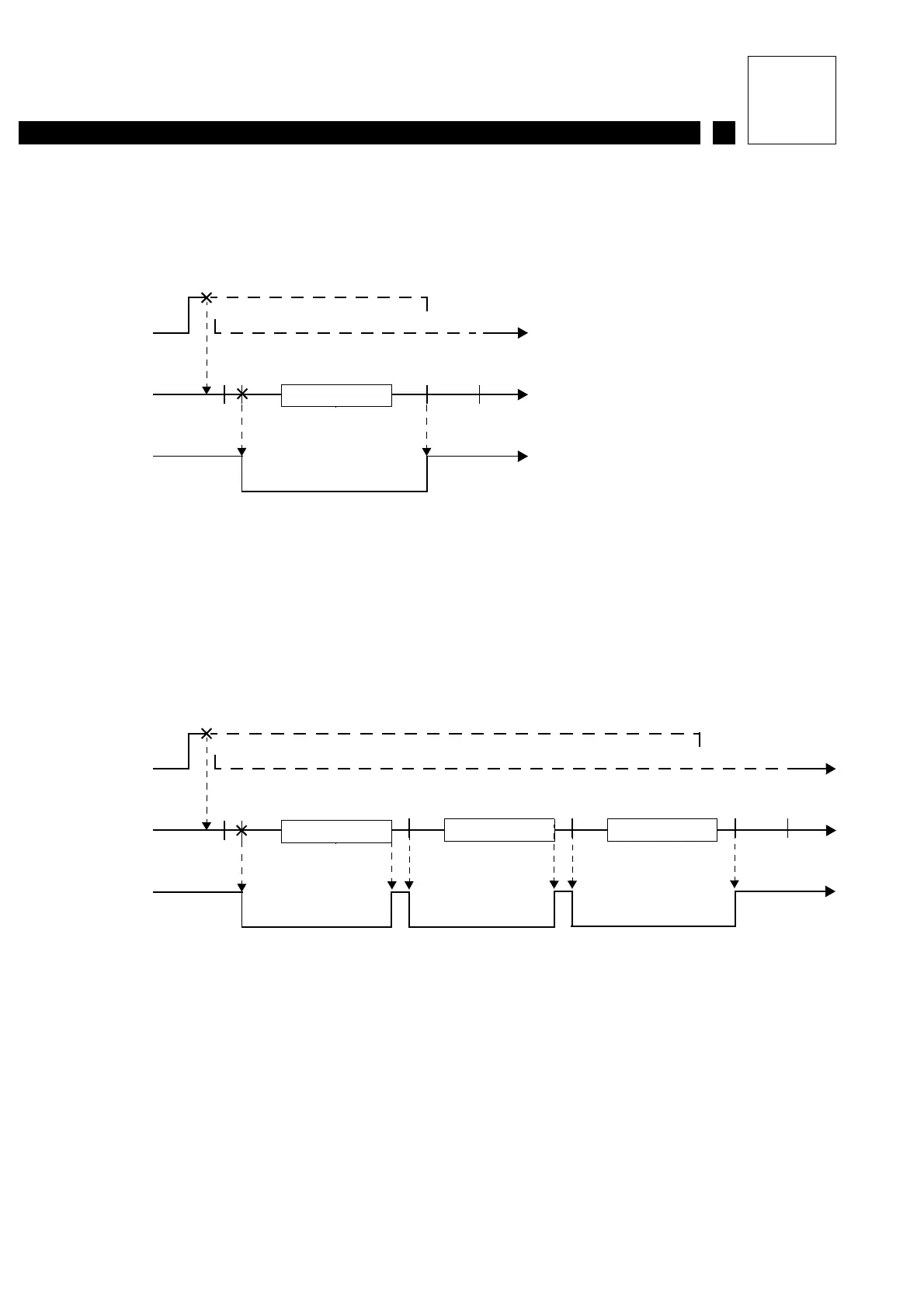

4.2 DTOP, message printing and BUSY
4.2.1 Printing : "Object mode"
A = TOPIMP > filter value
B = CPU/IMP communication = from 0 to 700 µs if "Run/Stop" option set to Run
= 0 if "Run/Stop" option set to Stop
C = print signal processing = 1 to 9 ms for message with bar code
=800µs for message without bar code
D=printdelay
Y = phase measurement = 3 ms
Z = minimum time between phase measurement and new DTOP = 1 ms
4.2.2 Printing : " Repeat mode"
A = TOPIMP > filter value
B = CPU/IMP communication = from 0 to 700 µs if "Run/Stop" option set to Run
= 0 if "Run/Stop" option set to Stop
C = print signal processing = 1 to 9 ms for message with bar code
=800µs for message without bar code
D=printdelay
I = Interval
Y = phase measurement = 3 ms
Z = minimum time between phase measurement and new DTOP = 1 ms
