IMET M550 - Analog Command Card

16/53 IMET - M550 ALL1-EN
5.4.3. Analog command card
50 - 130Hz
371 - 1000Hz
131 - 370Hz
TEST POINT PER
TARATURA FREQUENZA
* IN AD1
OUT AD1 GND
* IN AD2
OUT AD2 GND
* IN AD3
OUT AD3 GND
* IN AD4
OUT AD4 GND
* IN AD5
OUT AD5 GND
* IN AD6
OUT AD6 GND
* IN AD7
OUT AD7 GND GND OUT AD8
* IN AD8
FREQ. REG. (PWM)
FOR M550C1
* IN AD1, ... ,8 COLLEGATO SOLO PER PWM
USED ONLY FOR PWM OUTPUT
T1
T2
T3
JUMPER FREQ. SEL.

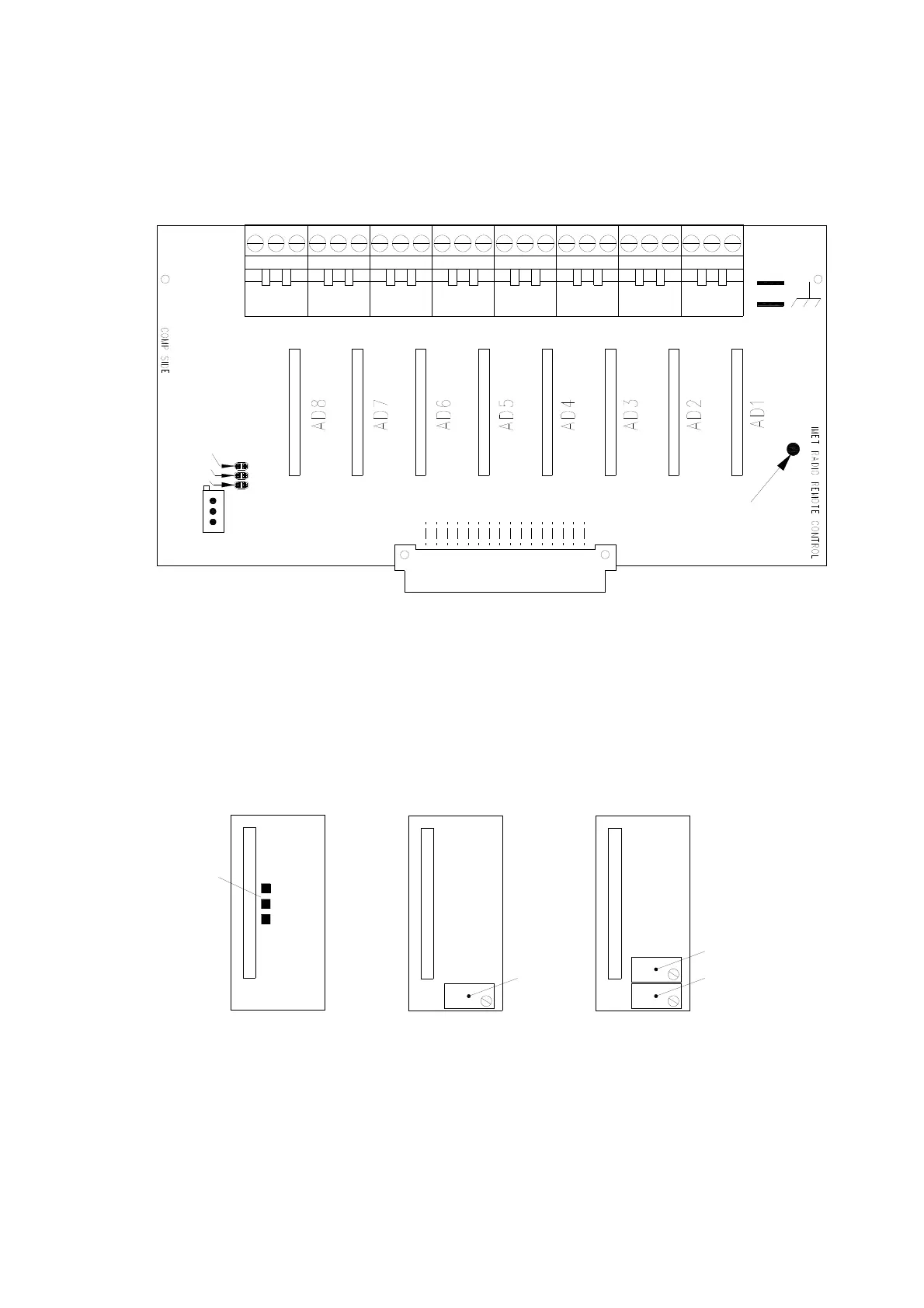

Control modules
M550C2: 0-20mA/4-20mA current-operated control
M550C1: PWM current-operated control
M550V: voltage-operated control
Vout MAX REG.
ANALOG CARD
Vout MIN REG.
M550V SERIES
M550C1 (PWM)
GAIN REG.
ANALOG CARD
ANALOG CARD
M550C2
RANGE SEL.
