IMET M550 - Relay Control Cards; Potentiometer Card

18/53 IMET - M550 ALL1-EN

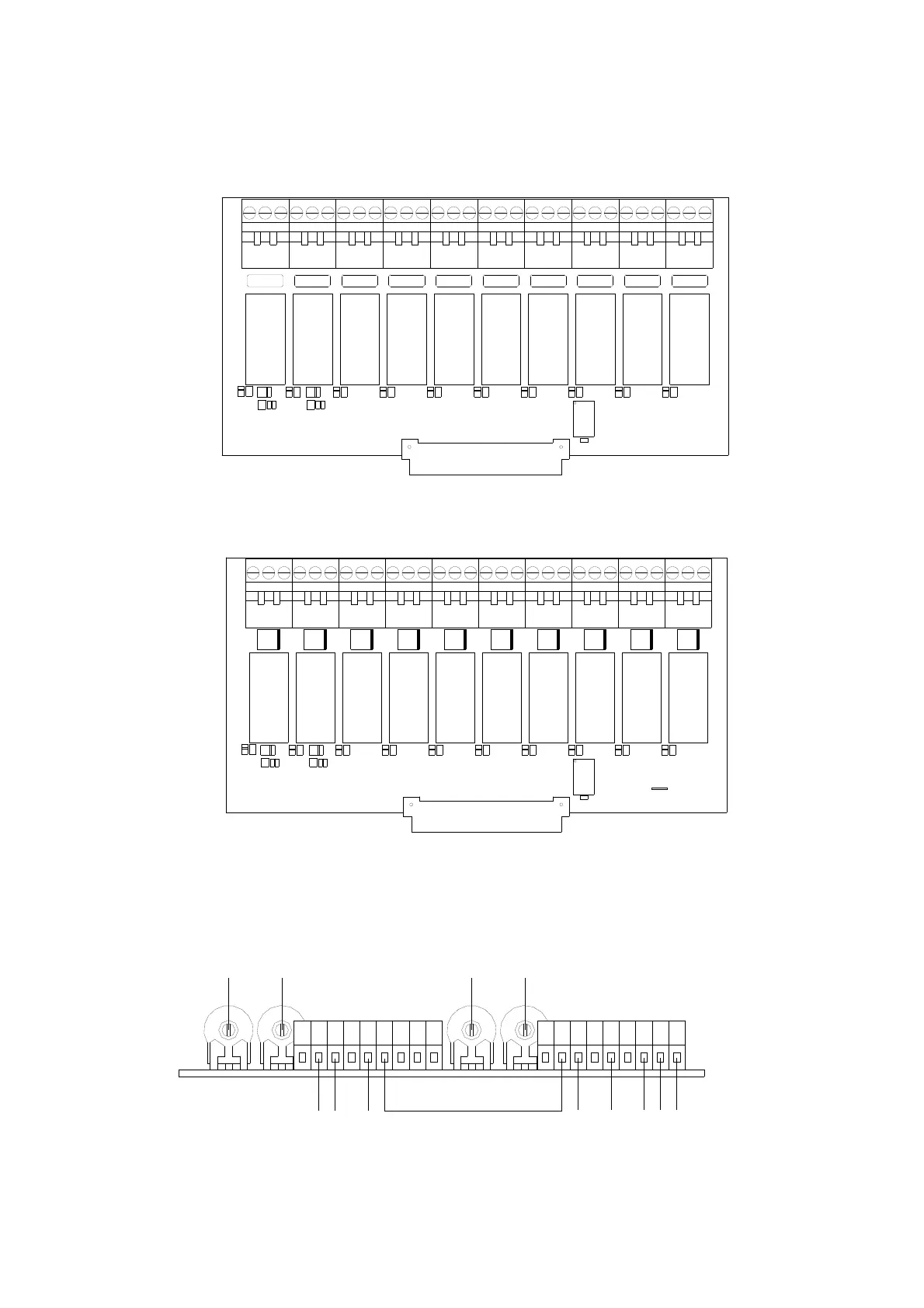

5.4.6. Relay control cards
The following control cards can be mounted on the free slots, depending on the user’s requirements.
The cards are available in versions with 8 or 10 relays.
Version for H-AC receiver
Version for H-DC receiver
5.4.7. Potentiometer card
Used for controlling tower cranes. The potentiometer card lets you set the operating speeds
independently.
Regolazione
III velocita'
Regolazione
IV velocita'
Regolazione
II velocita'
Regolazione
I velocita'
B
A
III
IV
V
II
I
Com
