3.21 CASING REMOVAL
To facilitate appliance maintenance the casing can be completely removed as follows:

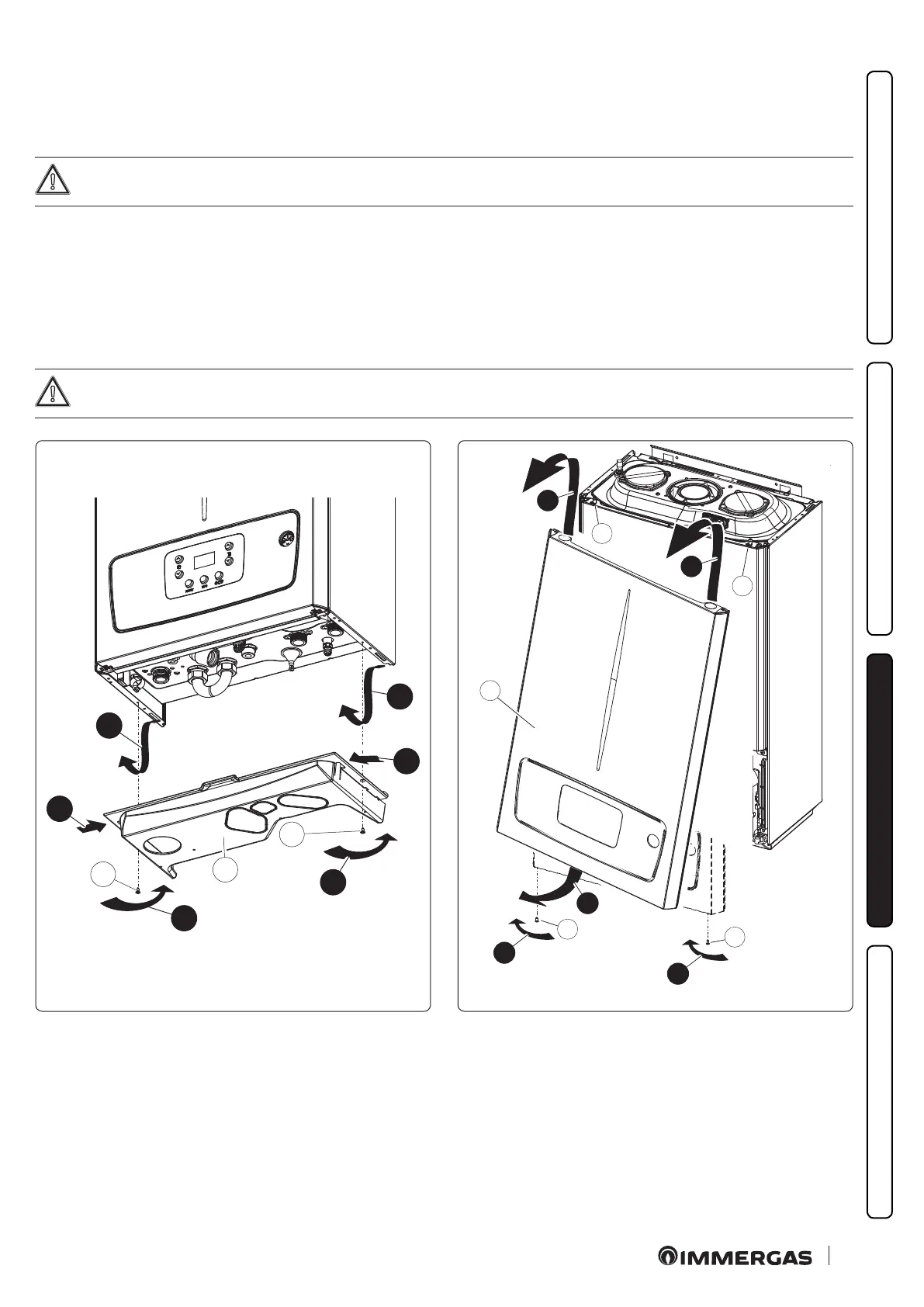

Lower grid (Fig. 68)
When the boiler is purchased integrated in the Trio Pack Hybrid, the lower grate cannot be installed.
- Loosen the two side screws (a).
- Press the hooks inwards, which block the lower grid (b).
- Remove the grid (b).
Front panel (Fig. 69)
- Loosen the screws (c).
- Pull the front casing (d) towards yourself from the underside to release it from the control panel.
- Li the front casing and remove it from the upper pins (e)
To reattach the front, proceed in reverse order, taking care to press around the area of the keys to reattach the front.
