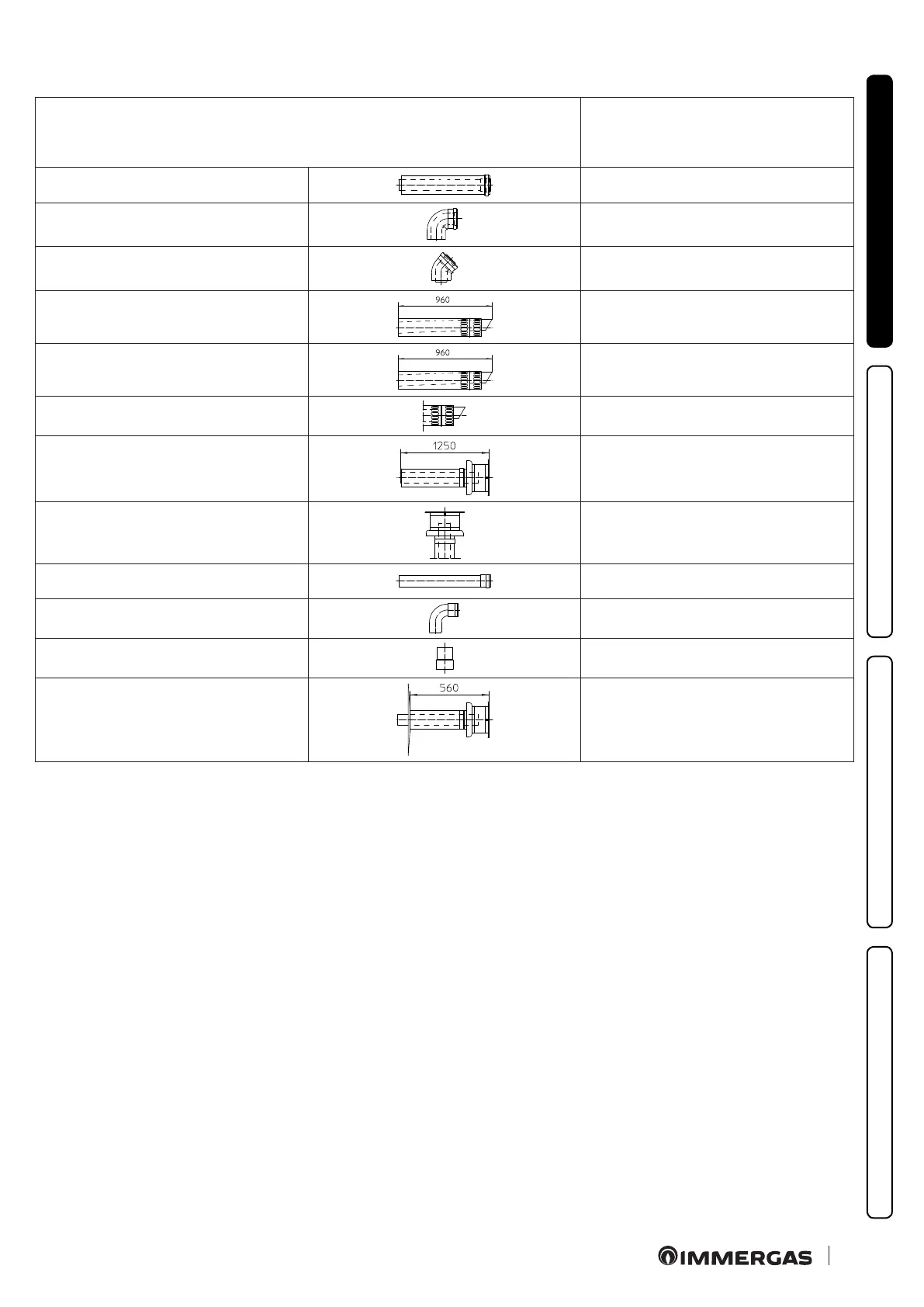

1.14 EQUIVALENT LENGTHS OF "GREEN RANGE" FLUE SYSTEM COMPONENTS.
TYPE OF DUCT
Equivalent
length in m
of concentric pipe
Ø 60/100
Concentric pipe Ø 60/100 m 1 m 1
Ø 60/100 90° concentric elbow
m 1,3
Concentric elbow 45° Ø 60/100
m 1
Horizontal terminal complete with concentric
intake-exhaust Ø 60/100 straight outlet
m 2,3
Horizontal terminal complete with concentric
intake-exhaust Ø 60/100 outlet 45°
m 4,1
Horizontal terminal complete with concentric
intake-exhaust Ø 60/100
m 1,5
Vertical terminal complete with concentric
intake-exhaust Ø 60/100
m 2,5
Concentric vertical intake-exhaust terminal 60/100 Ø
m 1,4
Pipe Ø 60 m 1 for ducting
m 0,5
Elbow 90° Ø 60 for ducting
m 0,55
Reduction Ø 80/60
m 0,4
Terminal complete with vertical exhaust Ø 60 for
ducting
m 1,9
