Immergas VICTRIX TERA V2 35 PLUS EU - Converting the Appliance to Other Types of Gas

90
INSTALLER
USERMAINTENANCE TECHNICIAN
TECHNICAL DATA
3.7 CONVERTING THE APPLIANCE TO OTHER TYPES OF GAS
e gas conversion operation must be carried out by an authorised company (e.g. Authorised Technical Assistance Service).
If the appliance needs to be converted to a dierent gas type to that specied on the data plate, request the relative conversion kit for quick
and easy conversion.
To convert to another type of gas the following operations are required:
- Disconnect power to the appliance;
- Replace the nozzle positioned above the gas valve (Part. 8, Fig. 51) taking care to disconnect the appliance during this operation;
- Re-power the appliance;
- Calibrate fan speed (Par. 3.8);
- Adjust CO
2
/O
2
(Parag. 3.9);
- Seal the gas ow rate regulation devices (if settings are modied);
- Aer completing the conversion, apply the sticker, contained in the conversion kit, on the data plate in the area relating to the type of
gas. Using an indelible marker pen, delete the data relative to the old type of gas.
ese adjustments must be made with reference to the type of gas used, following that given in the table (Parag. 4.2).

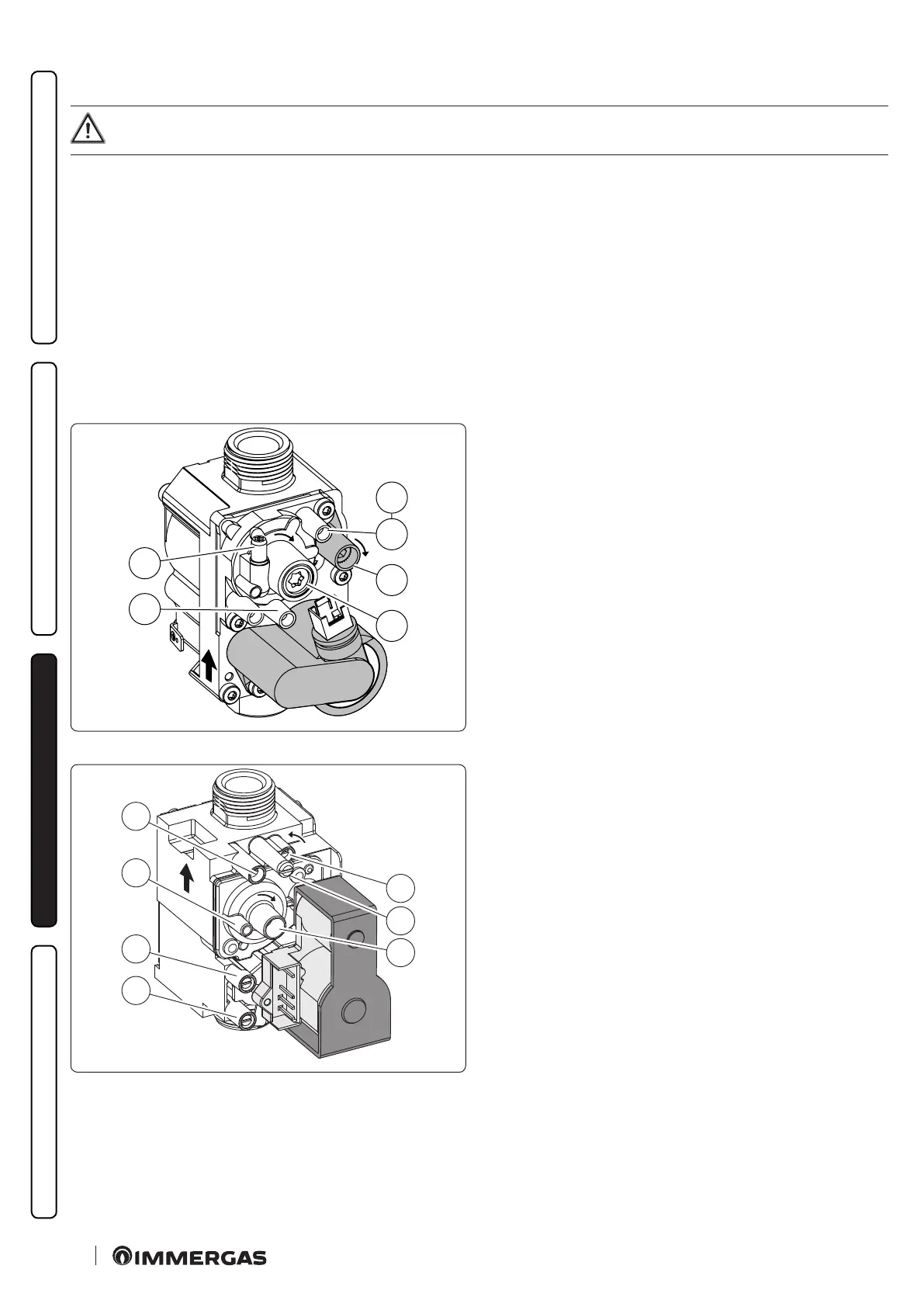

PX42 Gas Valve
+
+
3
12
2
1
P1
P3
55
Key (Fig. 55):
1 - Gas valve inlet pressure point
2 - Gas valve outlet pressure point
3 - O/Set adjustment screw
12 - Outlet gas ow rate adjuster
SIT 848 GAS Valve
+
+
3
5
1
7
6
2
4
56
Key (Fig. 56):
1 - Gas valve inlet pressure point
2 - OFFSET measurement pressure point
3 - Zero adjustment screw (OFFSET)
4 - Venting with protection cap
5 - Gas ow rate adjustment screw
6 - Gas valve outlet pressure point Pout
7 - Air signal connection point (internal venting hole)
