Immergas VICTRIX TERA V2 35 PLUS EU - Main Dimensions

14
INSTALLERUSERMAINTENANCE TECHNICIANTECHNICAL DATA

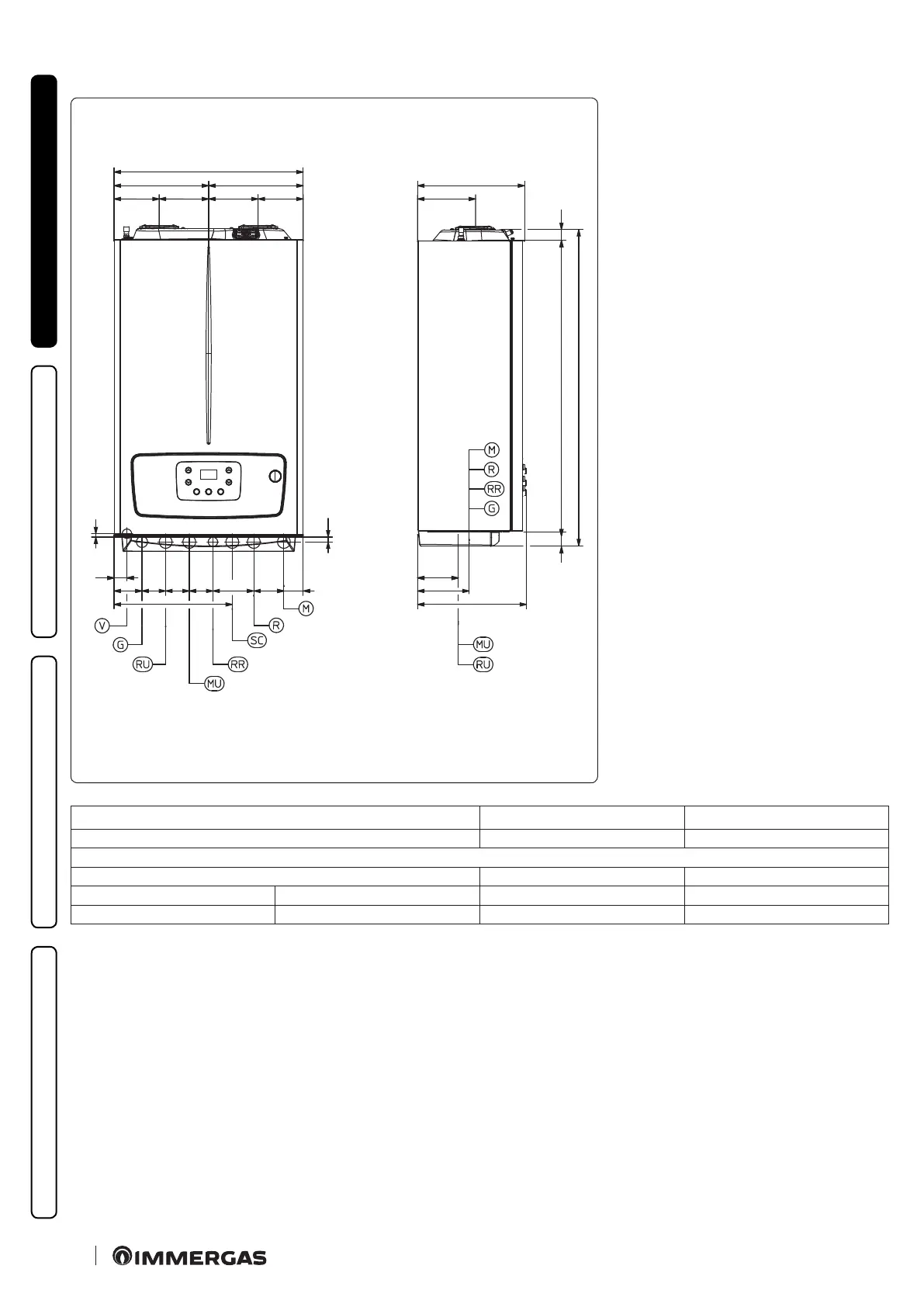

1.2 MAIN DIMENSIONS
36
65
55
55
55 95
70 45
275
220
105
105
440
120
253
135
250
687 25
30 95
8
11
748
115
220
115
2
Key (Fig. 2):
SC - Condensate drain (minimum inter-
nal diameter Ø 13 mm)
V - Electrical connection
G - Gas supply
RR - System lling
RU - Storage tank unit return
MU - Storage tank unit ow
R - System return
M - System ow
Height (mm) Width (mm) Depth (mm)
748 440 253
CONNECTIONS
SYSTEM GAS DOMESTIC HOT WATER
MU-RU M-R G RR
3/4" 3/4" 3/4” 1/2”
