Immergas VICTRIX TERA V2 35 PLUS EU - Page 32

32
INSTALLERUSERMAINTENANCE TECHNICIANTECHNICAL DATA

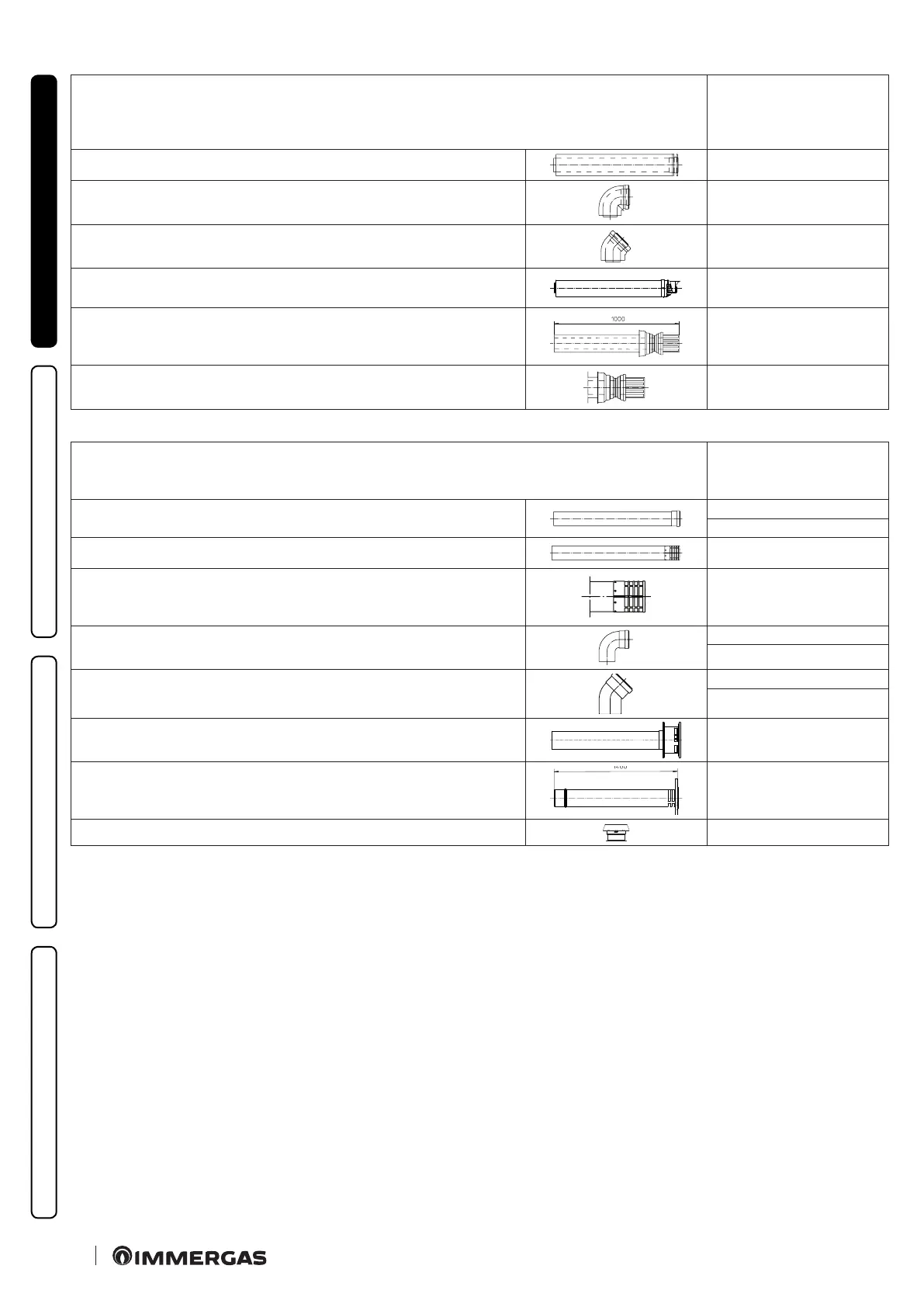

TYPE OF DUCT
Equivalent
length in m
of concentric pipe
Ø 80/125
Concentric pipe 80/125 Ø m 1
m 1
90° concentric bend 80/125 Ø
m 1,5
Concentric bend 45° Ø 80/125
m 1
Terminal complete with concentric horizontal intake-exhaust Ø 80/125
m 2,3
Concentric vertical intake-exhaust terminal Ø 80/125
m 2
Terminal complete with concentric vertical intake-exhaust Ø 80/125
m 1
TYPE OF DUCT
Equivalent
length in m
of concentric pipe Ø 80
Pipe Ø 80 m 1
Exhaust 1 m
Intake m 0.7
Horizontal intake terminal Ø 80 m 1
Intake m 2.5
Horizontal intake terminal Ø 80
Intake m 1.5
Ø 80 90° bend
Exhaust m 2.1
Intake 1.6
Ø 80 45° bend
Exhaust 1.3 m
Intake 1
Vertical exhaust terminal Ø 80
Exhaust 3 m
Vertical exhaust terminal Ø 80 stainless steel
Exhaust 3 m
Intake stub pipe Ø 80
Intake m 4.3
