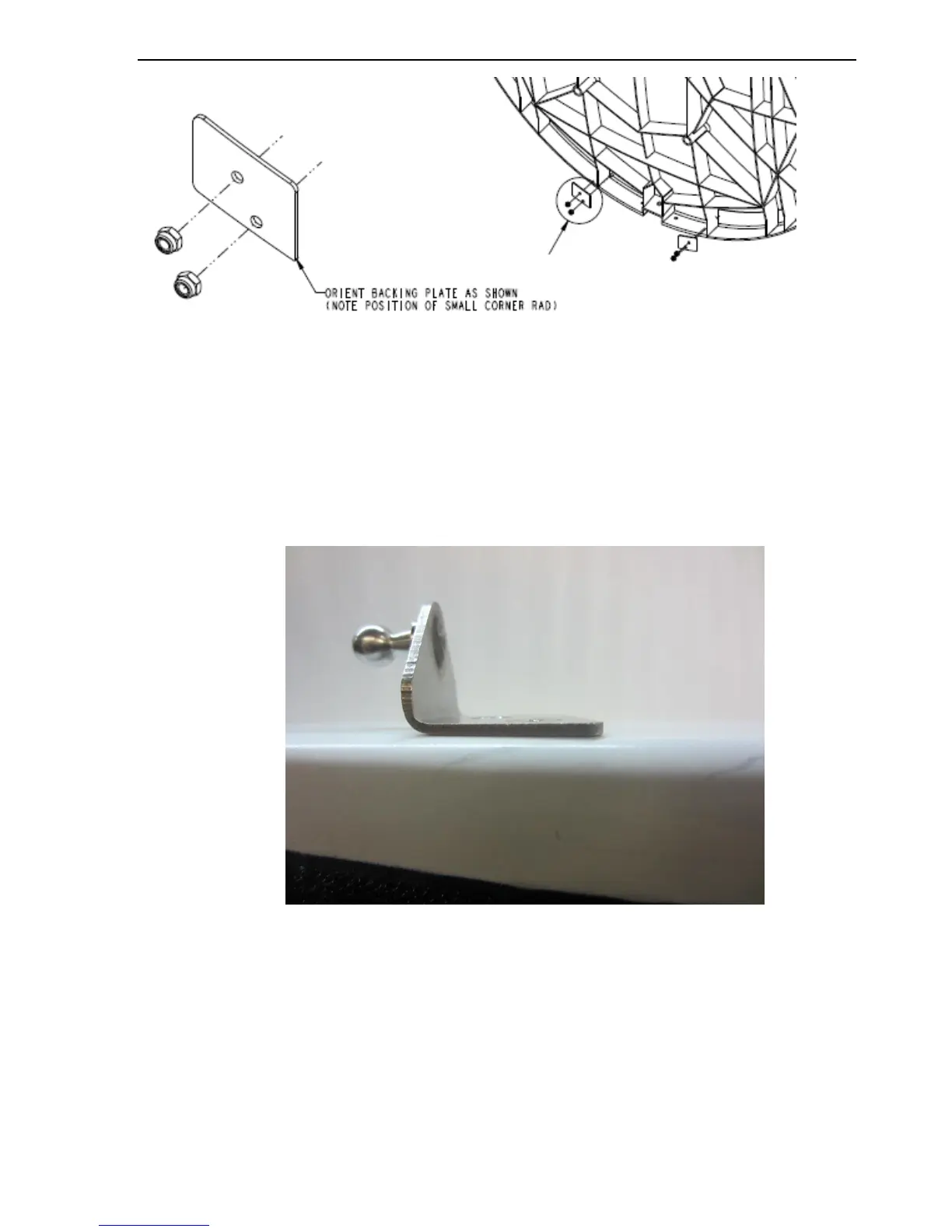

Fig. 26: Backing Plate Orientation
v. Insert and tighten the two (2) upper screws.
Note: No washers installed with brackets.
5. Ensure the screws on the front mounting bracket (with stud) are sub flush of the
brackets.
Fig. 27: Mounting Bracket Assy with screws sub flush
6. If replacing existing Mounting Brackets see Appendix A: for full details.
