7. Re-attach the Reflector Back Cover to the Reflector, leaving the strap at the bottom
open.
8. Carefully place the reflector onto the Mobile Platform. Ensure that the Reflector
Support Bracket at the base of the Elevation Arm fits into the groove at the base of the
Reflector.
9. There are four (4) carriage bolts included in the Reflector Assembly Kit.

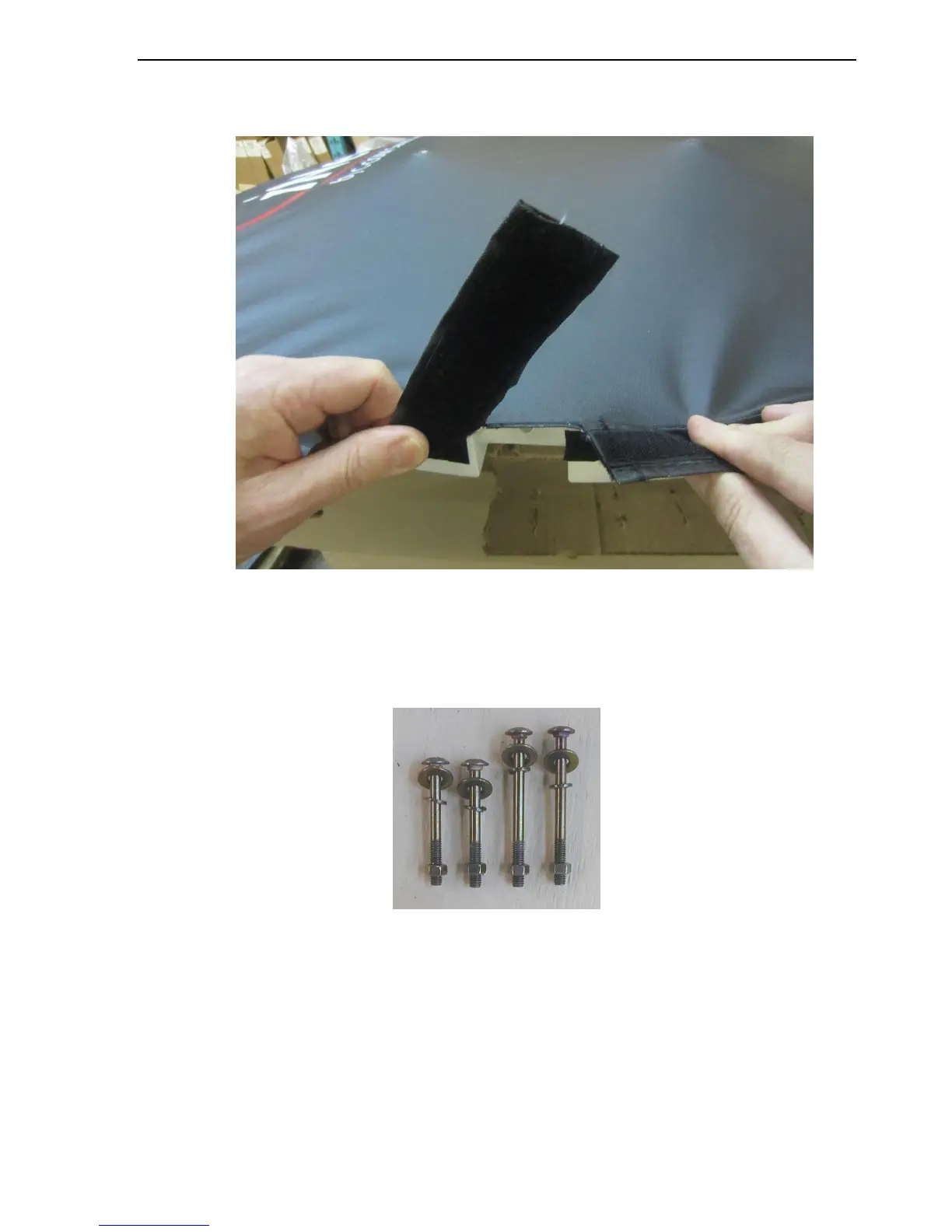

Fig. 28: Carriage Bolts
