iNetVu
®
Mobile Installation Manual Page 45 of 93
10. Insert four (4) carriage bolts through the front of the Reflector in the location depicted
below.
Insert the two (2) SHORT carriage bolts in the UPPER holes and the two (2) LONG
carriage bolts in the LOWER holes.

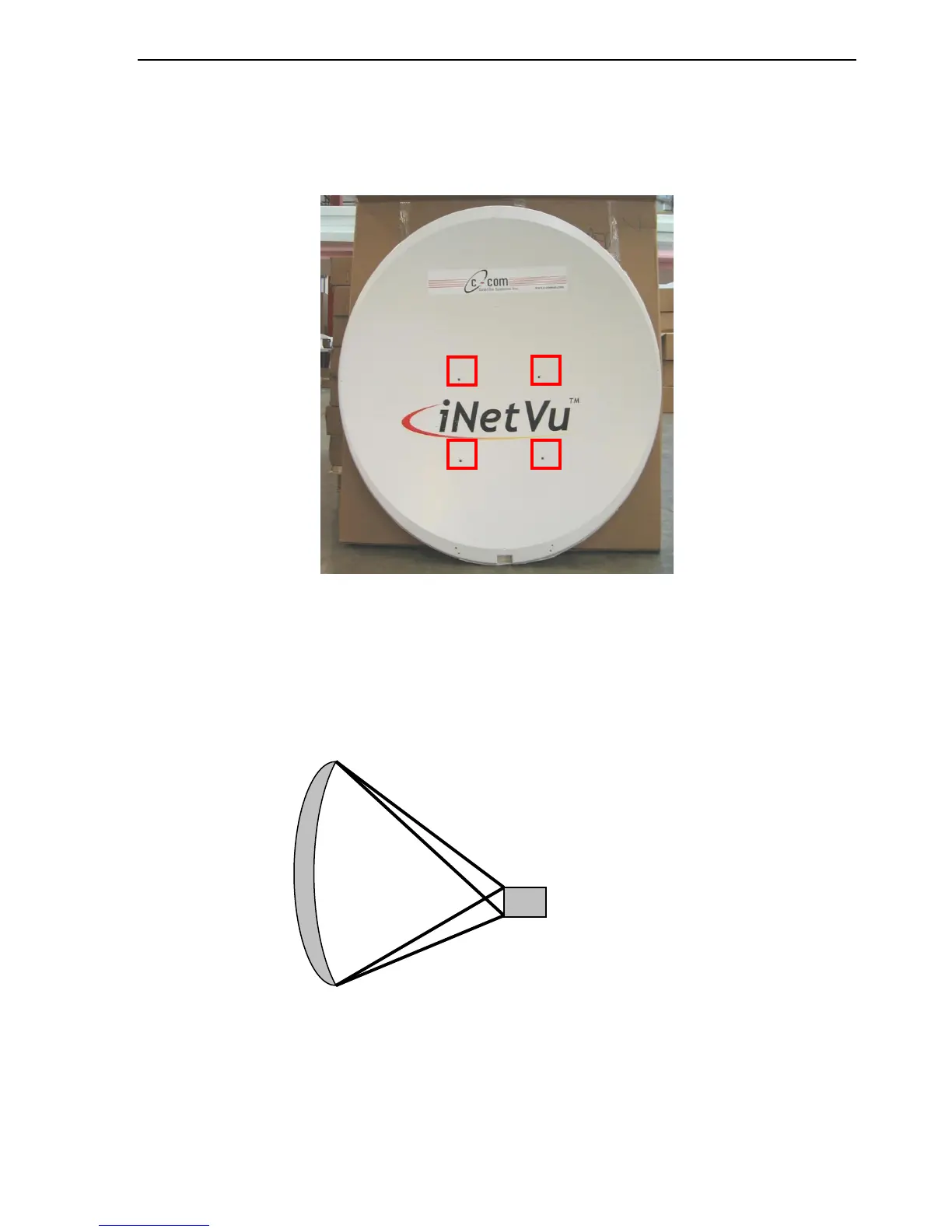

Fig. 29: Reflector Mounting Locations
11. Secure carriage bolts evenly in a cross pattern at the rear using the flat washers,
locking washers and nuts. Tighten to approximately 25 ft/lbs.
12. Verify Focal Point (ABCD) Geometry. Measure from the dimples on the top and bottom
edge of the reflector, and ensure that dimensions are within ¼ ” of the values below.
