TLE5012B
SSC Registers
User’s Manual 96 Rev. 1.2, 2018-02

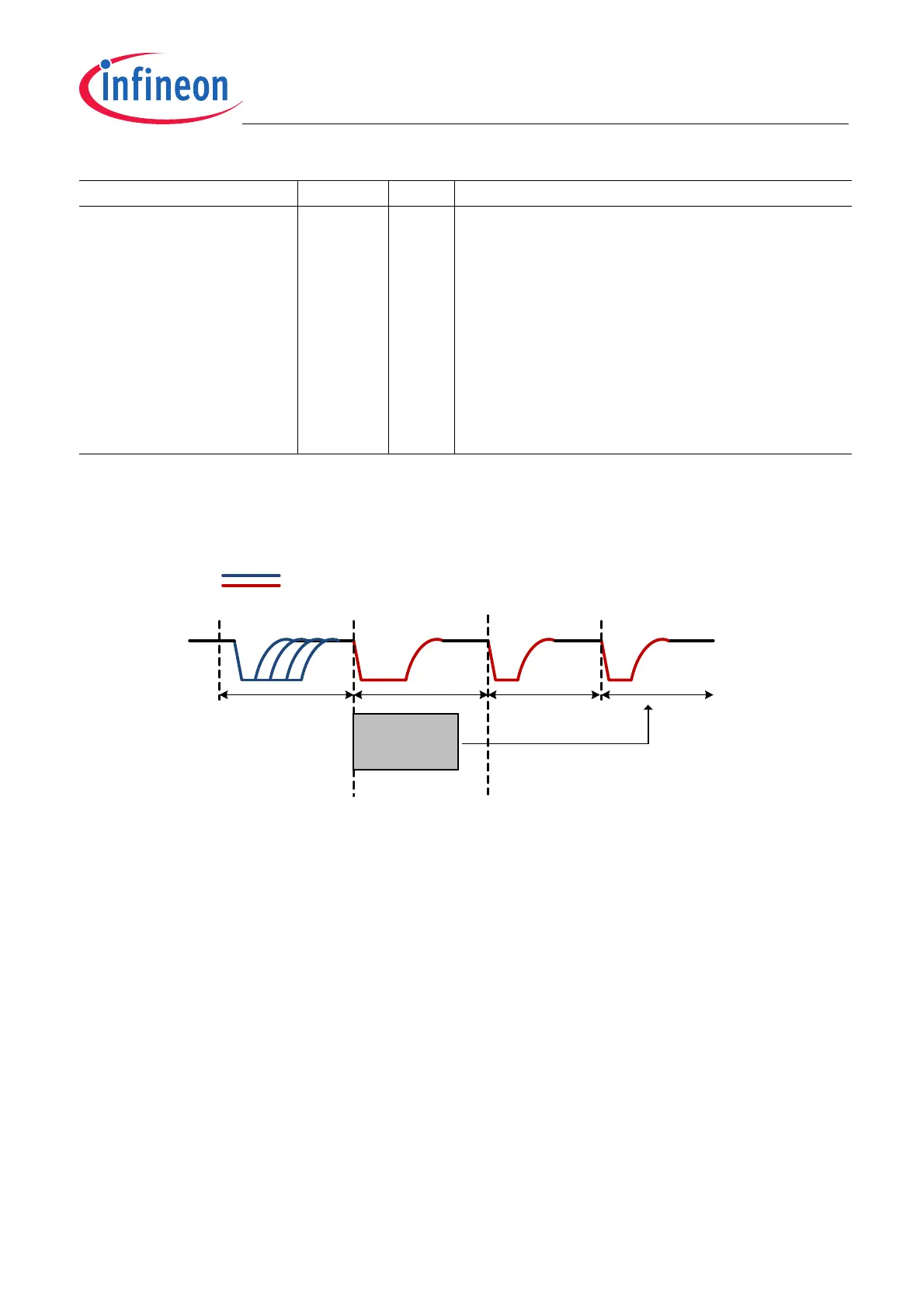

Figure 6-12 Timing of angle calculation in SPC. Trigger Nibble low time corresponds to slave number.
IF_MD 1:0 w Interface Mode on IFA,IFB,IFC
Any derivate can be configurated to operate in any of the
four following protocols on the IFA, IFB and IFC outputs.
Reconfiguration is required at every start-up, else the
default protocol of the derivate will be used.
SSC interface is always active in parallel on pins SCK,
CSQ and DATA.
00
B
IIF
01
B
PWM
10
B
HSM
11
B
SPC
1)
Reset: derivate-specific
1) In SPC interface configuration, the sensor’s digital signal processing unit (DSPU) runs only when receiving a SPC trigger
pulse on the IFA pin (see Figure 6-12). This means that changes to register settings are applied and also the angle (AVAL)
register is updated only after a trigger pulse.
Field Bits Type Description
Synchronisation Fr ame Status - Ni bbl e Data - N i bbl es
56 tck 12..27 tck 12..27 tck
Tim e- Base : 1 tck (3µ s+/-dtck )
Trigger Nibble
24,34,51 ,78 tck
µC Activity
Sensor Activity
angle calculation
...
