innovaphone IP DECT Page 97
Appendix A: Connectors and control
elements
Indicators and connectors
12345678 9

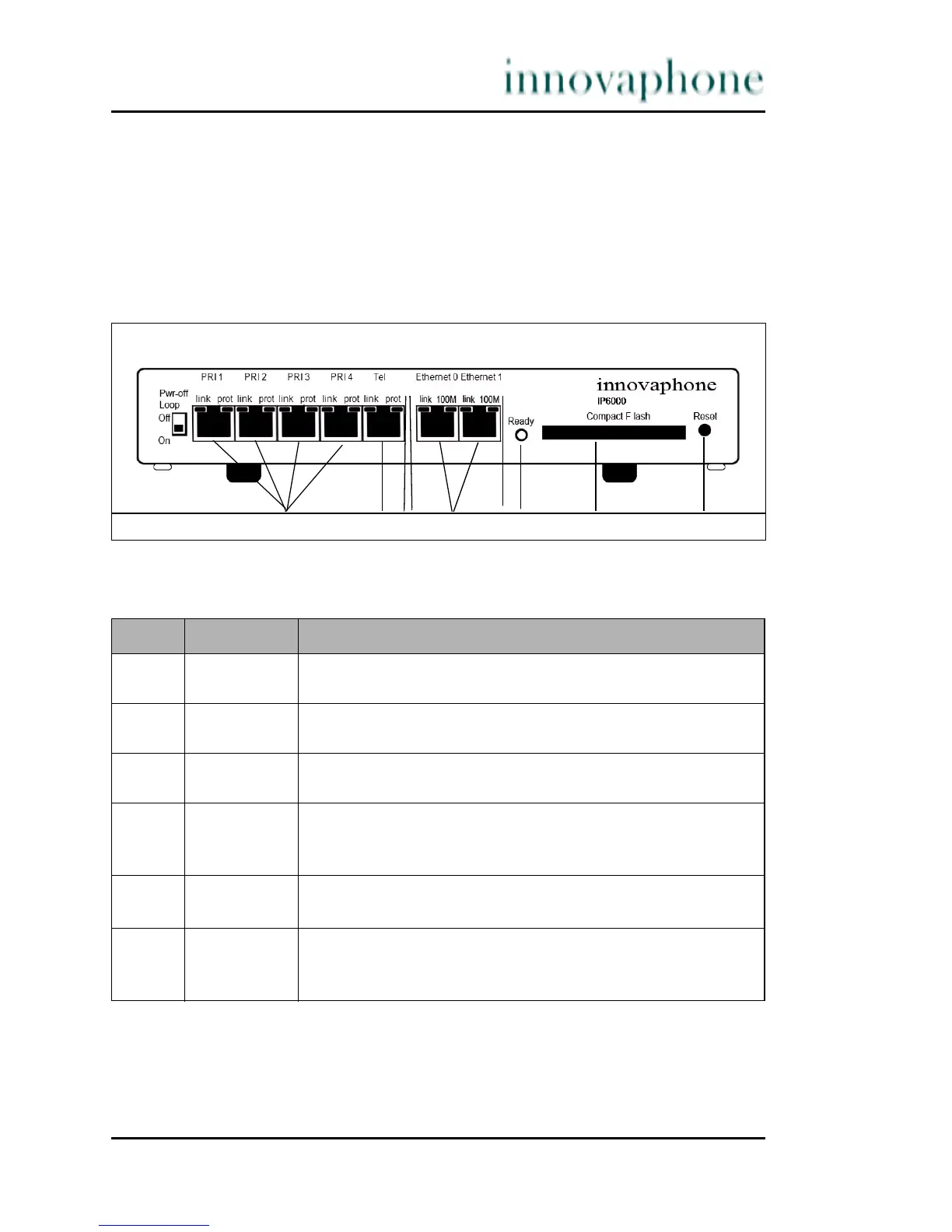

Fig. 1 - Indicators and connectors of the IP6000
Pos. Symbol Description and function
1 PRI1-4 ISDN-Socket (primary-rate-interface) for connecting
an ISDN device.
2 TEL ISDN-Socket (basic-rate-interface) for connecting an
ISDN device or terminal equipment.
3 Prot LED to indicate the internal power supply for the
seperate interface is active.
4 Link LED to indicate that data is being sent or received on
the ETH0/1 interface. This applies analogously to all
other LEDs.
5 ETH0-1 RJ45-socket for connecting a 100 Mbps Ethernet (10/
100
Base-T
auto sense).
6 100M LED to indicate that the 100 Mbps network for the
ETH0/1 interface is active. This applies analogously to
all other LEDs.
