Parameter Description MD320/MD320N User Manual
118

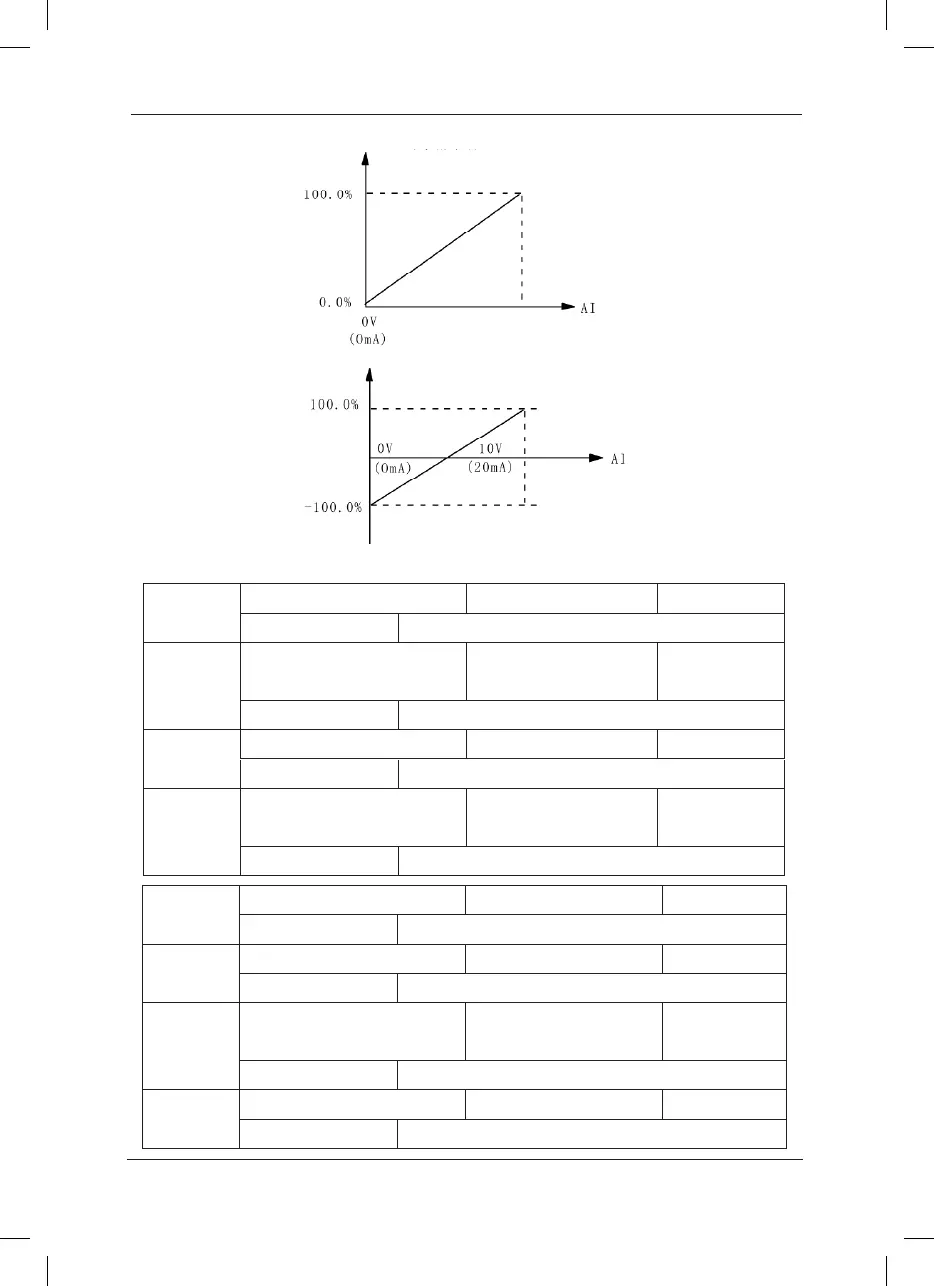

Fig.6-9 Corresponding Relationship between Analog Reference and Setting
Corresponding Settings
(Frequency, Torque, etc.）
Corresponding Settings
(Frequency, Torque, etc.）
F4-18
AI2 minimum input Factory default value 0.00V
Setup range
0.00V ~ 10.00V
F4-19
AI2 minimum input
corresponding setup
Factory default value 0.0%
Setup range -100.00% ~ 100.0%
F4-20
AI2 maximum input Factory default value 10.00V
Setup range
0.00V ~ 10.00V
F4-21
AI2 maximum input
corresponding setup
Factory default value 100.0%
Setup range -100.00% ~ 100.0%
F4-22
AI2 input lter time Factory default value 0.10s
Setup range 0.00s~ 10.00s
F4-23
AI3 minimum input Factory default value 0.00V
Setup range 0.00V ~ 10.00V
F4-24
AI3 minimum input
corresponding setup
Factory default value 0.0%
Setup range -100.00% ~ 100.0%
F4-25
AI3 maximum input Factory default value 10.00V
Setup range 0.00V ~ 10.00V
