Appendix MD320/MD320N User Manual
176

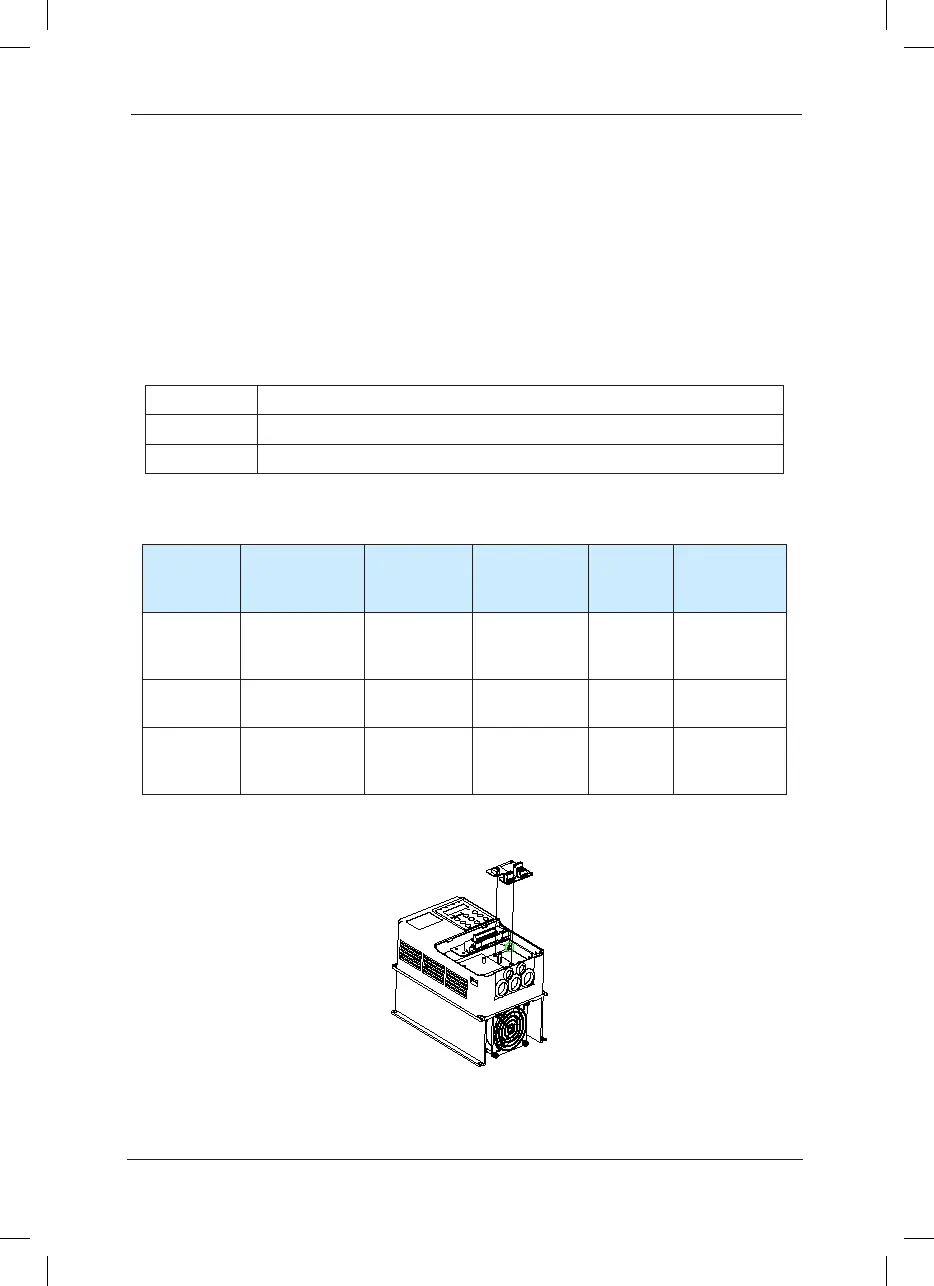

Appendix: Card Description
Appendix A: Description of Common PG Card (MD32PG)
A.1 Model and Specications
A.1.1 Model
Shenzhen Inovance Technology Co., Ltd provides two kinds of PG card matching the MD320
inverter. Refer to Appendix A: Table 1 PG Card Model Description for details.
Appendix A: Table 1 PG Card Model Description
Model Function
MD32PG Rotary encoder interface card
MD32PGD Rotary encoder interface card with frequency division output
A.1.2 Technical Specication
Appendix A: Table 2 PG Card Technical Specication
Function
Response
speed
Output
Impedance
Output
current
Frequency
division
range
+15PG
，
COM
Providing
encoder
power supply
--- --- 300mA ---
PGA
，
PGB
Encoder
signal access
0kHz
～
80kHz
--- --- ---
OUT-A
，
OUT-B
Frequency
division signal
output
0kHz
～
80kHz
Open
collector
output.
100mA
4 to 62 (even
number)
A.1.3 Dimensions and Installation
Appendix A: Fig.1 PG Card Installation
