2.5.3 Physical Dimensions of External Keyboard

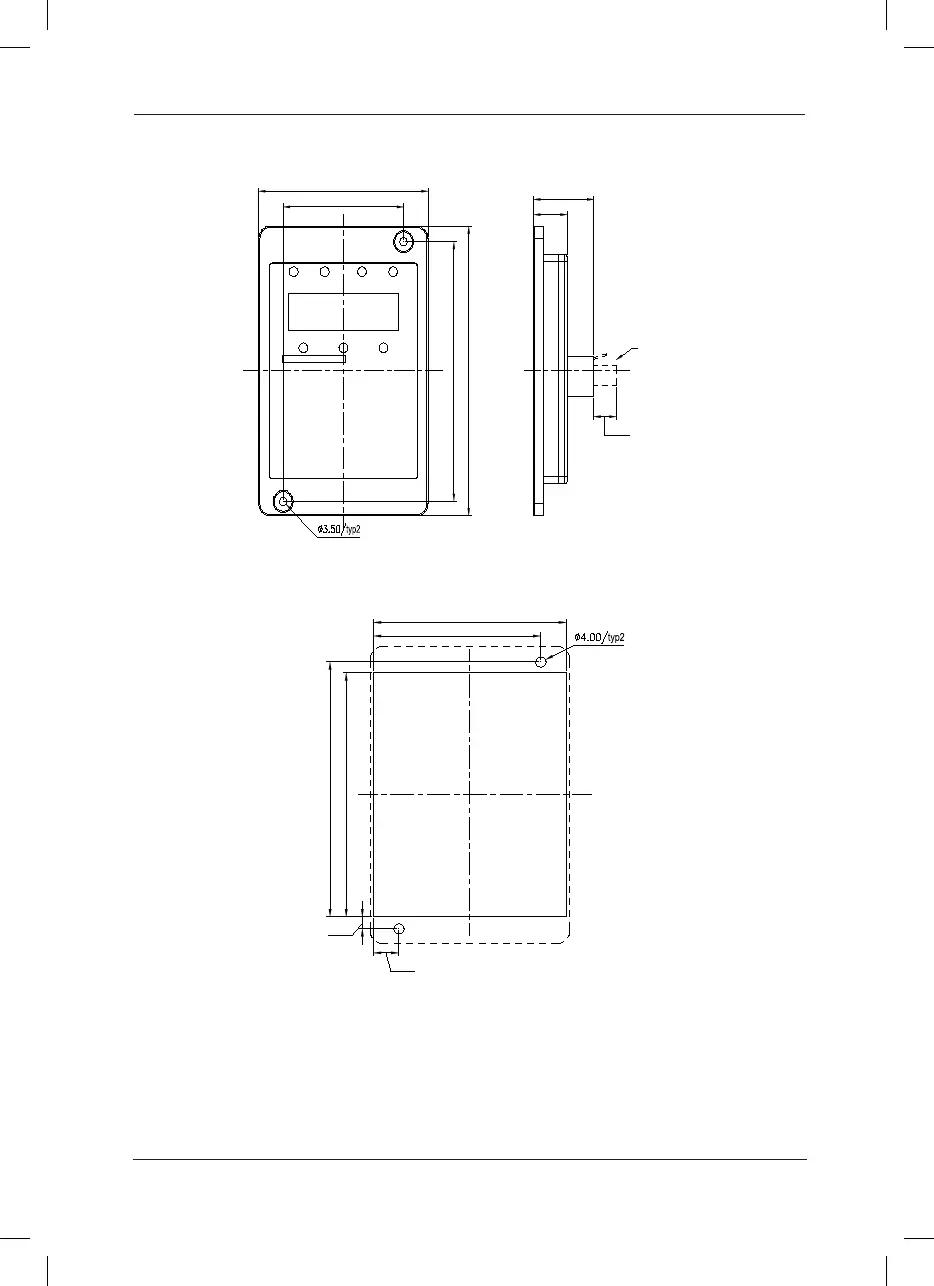

Fig.2-9 Schematic Diagram for Physical Dimensions of External Keyboard
Mounting Hole Dimensions of External Keyboard
Fig.2-10 Schematic Diagram for Mounting Hole Dimensions of External Keyboard
54
104
Plug Housing
10.00
27.00
15.00
116.00
76.00
63.75
4.70
9.75
73.50
95.00
99.30
